Type VI Rail Fastener System for Heavy-Haul Track

The Type VI rail fastener system is a bolted elastic-clip fastening that connects 60 kg/m or 75 kg/m rails to shouldered prestressed concrete sleepers on ballasted track. It is designed for heavy-haul freight service with axle loads of 25–30 t.
Send Inquiry
Chat Now
Description

GNEE RAILWAY RAILWAY Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of Type VI Rail Fastener System for Heavy-Haul Track in China, also supports customized service with low price. Please feel free to buy cheap Type VI Rail Fastener System for Heavy-Haul Track made in China here from our factory.



What Is the Type VI Rail Fastener System?



A track fastening system holds the rail foot against the sleeper, keeps the track gauge within tolerance, and resists longitudinal and lateral movement of the rail relative to the sleeper. The Type VI system belongs to the family of Chinese spring-bar (elastic clip) fastenings used on ballasted track. It differs from lighter passenger-line fastenings in that it is sized for sustained heavy-axle freight operation: the clip must hold a stable toe load over millions of load cycles while the rail pad absorbs high vertical wheel forces.

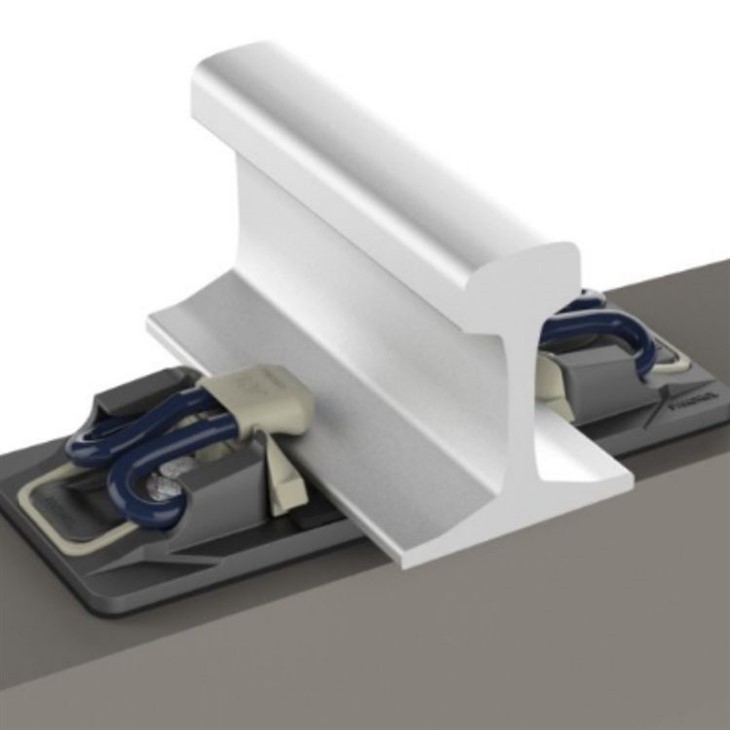

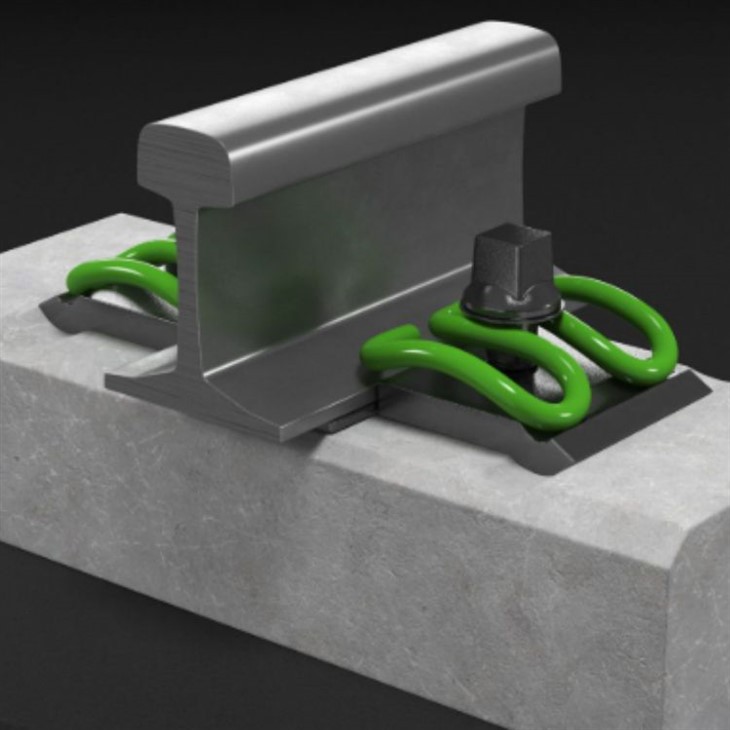

The Type VI system is a bolted design on a shouldered sleeper: the concrete shoulder cast into the sleeper carries the lateral rail forces, the gauge baffle transmits those forces to the shoulder, and the screw spike holds the clip in place. This layout keeps the assembly simple to inspect and to replace in the field.



Type VI Rail Fastener System Components


The typical composition of a Type VI fastening set is listed below.



Type VI Rail Fastener System Components



Component Function Notes

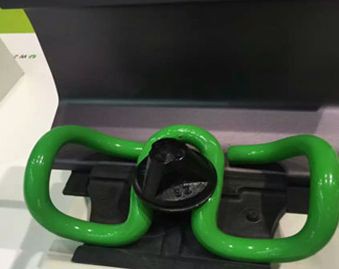

Elastic clip Presses the rail foot onto the pad; provides the clamping force (toe load) Spring steel, heat-treated; fatigue-tested
Screw spike Anchors the clip to the sleeper Grade and tightening torque per drawing
Gauge baffle Fixes the lateral rail position against the sleeper shoulder Numbered sizes provide gauge adjustment steps
Baffle seat Supports the gauge baffle on the sleeper shoulder -
Rubber rail pad  Elastic under-rail cushion; controls vertical stiffness Static stiffness band per drawing
Flat washer and nut  Lock the spike and clip assembly -
Shouldered prestressed concrete sleeper Track support; the cast shoulder resists lateral loads Track component, not part of the fastening kit



Other Chinese fastenings of the same family differ in layout: the shoulderless Type III system uses an embedded iron shoulder and no bolt, and the WJ-7 / WJ-8 systems are built for ballastless slab track. If your project is on slab track, the WJ-series drawing and its standard apply, not the Type VI configuration.



Design and Application Envelope



Parameter Value
Rail section 60 kg/m or 75 kg/m (rail profiles per the TB/T 2344 series)
Track form Ballasted, shouldered prestressed concrete sleepers
Minimum curve radius 400 m
Maximum axle load 25–30 t (heavy haul)
Maximum train speed 120 km/h
Fastening type Bolted elastic clip (spring bar), shouldered
Gauge adjustment By gauge baffle size, per the approved drawing
Rail height adjustment typically via rail pad thickness options



Application Scenarios of type VI fastening system



  • Heavy-Haul Main Lines


Corridors carrying bulk minerals, coal and container freight with axle loads up to 30 t and speeds up to 120 km/h - the service for which the Type VI system was developed. The bolted, shouldered layout keeps maintenance intervals predictable under high accumulated tonnage.



  • Industrial, Mining and Port Sidings


Plant, mine and port rail networks with moderate curvature down to 400 m radius, where robust clamping and simple replacement of clips, pads and baffles reduce downtime.



  • Track Renewal and Maintenance


Replacement of older fastenings on existing ballasted lines with shouldered concrete sleepers, where the existing sleeper layout can be retained and only the fastening set is renewed.



Technical Performance of Type VI Rail Fastening System



The table below gives typical performance ranges for the Type VI system, compiled from laboratory and type-test practice for this fastener family.



Performance Item Typical Range Basis / Note
Vertical static clamping force (toe load) 9–15 kN per clip Type test; final value per drawing
Vertical stiffness of fastening (with rail pad) 30–60 kN/mm Assembly compression test
Lateral resistance (per fastening set) ≥ 7–12 kN Lateral push test
Longitudinal resistance (per fastening set) ≥ 9–14 kN Rail creep resistance test
Elastic deflection of clip (弹程) 9–12 mm without permanent set Load–deflection curve
Rail seat compression ≤ 2.0 mm under design load Rail pad + sleeper assembly test
Fatigue life of clip ≥ 5 million cycles Cyclic fatigue test
Fatigue life of assembly ≥ 3 million cycles System fatigue test
Electrical insulation resistance ≥ 5 kΩ dry / ≥ 3 kΩ wet Insulation performance test
Gauge restraint ≤ 1.0 mm lateral displacement under design load Track panel test
Uplift resistance ≥ 6–10 kN Vertical pull-out test
Environmental durability No cracking or toe-load loss after −40 °C to +70 °C cycling Environmental aging test
Corrosion protection 500–1000 h salt spray (hot-dip galvanizing or Dacromet options) Coating corrosion test

Clip toe load, elastic deflection and any rail-height adjustment are interdependent. The values above are typical bands for the family;



Standards and Quality Control



The Type VI system is governed by TB/T 3615-2025, issued by the National Railway Administration of China. It belongs to a family of Chinese elastic-clip fastenings, each covered by its own standard: TB/T 1495-2020 (Type I), TB/T 3065-2020 (Type II), TB/T 3570-2021 (Type III), TB/T 3615-2025 (Type VI) and TB/T 3616-2025 (Type VII). Rails are supplied to the TB/T 2344 series for 43–75 kg/m rail sections.



Relationship with the WJ series: WJ-7 (shoulderless, detached) and WJ-8 (shouldered) fastenings are designed for ballastless slab track on high-speed passenger lines. Type VI is a ballasted-track fastening for heavy-haul freight. The two families are not interchangeable; the applicable standard and approved drawing must be confirmed for every project, and the supplier states this explicitly to prevent specification errors.



wj-7 rail fasteners system



Quality control at GNEE RAILWAY RAILWAY covers incoming steel chemistry, heat treatment and hardness of clips, dimensional inspection to drawing, fatigue and salt-spray sampling, and batch traceability.



Frequently Asked Questions


Q1. Which rail sections does the Type VI system accept?


60 kg/m and 75 kg/m rails laid on ballasted shouldered prestressed concrete sleepers.


Q2. Is Type VI the same as WJ-7 or WJ-8?


No. WJ-7 (shoulderless) and WJ-8 (shouldered) are fastenings for ballastless slab track on high-speed passenger lines, while Type VI is a ballasted-track fastening for heavy-haul service. The two families are not interchangeable.



Q3. What clamping force does a Type VI clip provide?


Typical toe load for this fastener family is 9–15 kN per clip.



Q4. Can track gauge be adjusted?


Yes, within the design range, by selecting the gauge baffle size. The adjustment step and range follow the approved drawing; state the required gauge in the specification.



Q5. Is rail height adjustment available?


Height adjustment on this bolted, shouldered design is limited and is typically handled through rail pad thickness options.


Q6. What anti-corrosion options are offered?


Hot-dip galvanizing and Dacromet coatings are typical options, with salt-spray performance commonly in the 500–1000 h band. Specify the service environment and the required grade.



GNEE RAILWAY RAILWAY supplies Type VI fastening systems manufactured to TB/T 3615-2025 and the approved drawing, with batch inspection records retained for traceability. Product documentation - approved drawings, type-test reports and material certificates - accompanies each delivery.
