BS Standard Railway Fish Plate

Your Professional BS Standard Railway Fish Plate Supplier

Established in 2008, GNEE RAIL is a specialized manufacturer and exporter of rail fish plates, serving railway infrastructure projects worldwide. The company focuses on producing fish plates that provide stable rail joint connections and reliable structural support under long-term service conditions.

By adopting mature manufacturing processes and consistent quality control, GNEE RAIL ensures its rail fish plates meet the functional requirements of different track systems. Today, GNEE RAIL supplies railway products to around 150 countries and regions, supporting both new construction and maintenance projects.

BS Standard Fish Plate - Railroad Fastener
BS Standard Rail Fishplate Rail Connector is a connecting fastener used to connect rails. Using fishplates is more labor-saving than rail butt welding, and the installation is simple and quick.
read more
BS Standard Fish Plate -Railroad Fasteners
BS standard rail fish plate rail joint bar is a kind of connection fastener used for the connection between rails. The use of fish plate is more labor-saving than the rail butt welding...
read more
BS Standard Fishplates For Railway Rails
Railway Fishplate, also called rail fishplate, track joint bar, rail joint bar or splice bar, angle bar. It is a kind of metal bar bolted to the ends of two rails to join them together in a rail.
read more
BS Standard Fish Plate
Standard: BS47-1
Material: Chinese steel grade 40#
Size: BS75R, BS80A, BS90A, BS100A, BS113A
Tensile strength Rm: 550-650 Mpa
read more

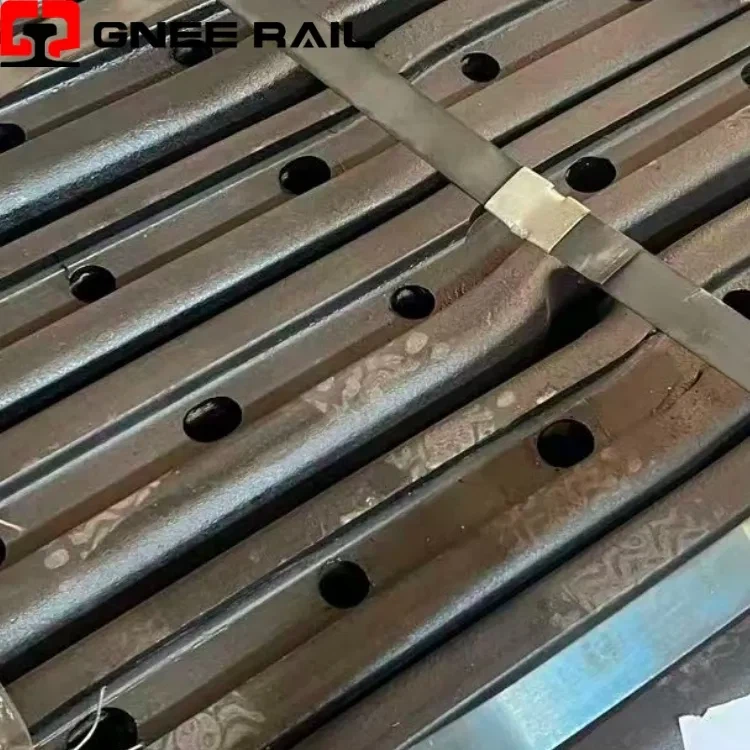

BS Rail Joint Bar
The basic design of this BS Rail Joint Bar is a V-shaped rail clamp that butts two pieces of rail together. This design reduces the gaps between the rails, thereby reducing noise and vibration...
read more
BS Rail Fish Plates
BS standard rail fish plate rail joint bar is a kind of connection fastener used for the connection between rails. The use of fish plate is more labor-saving than the rail butt welding technology,...
read more
BS Railway Fish Plate
BS railway fish plate is a type of railway fastener, It is a kind of metal bar bolted to the ends of two rails to join them together in a rail.
read more

Why choose us

One-Stop Service

We offer a full range of services to meet all your rail fastening system needs, from design and manufacturing to installation and maintenance.

Commitment to Quality

Quality is our top priority, and we adhere to stringent quality control measures throughout the production process to deliver products that meet or exceed industry standards.

Market-Focused Solutions

We stay informed about market trends and developments to provide innovative solutions that address current challenges and anticipate future needs.

Professional Technical Team

Our team of experts brings years of experience and specialized knowledge to ensure that your rail fastening system is designed to meet the highest standards of quality and performance.

Customer-Centric Approach

We prioritize customer satisfaction and strive to understand and fulfill our clients' unique requirements. Our customer-centric approach ensures that your needs are met promptly and effectively.

Sales Market

And our railway products are exported to over 150 countries and regions worldwide, including the United States, Russia, India, Canada, Brazil, South Africa, Mexico, the United Kingdom, Spain, Bangladesh, Kenya, Iraq, Nicaragua, Laos, Monaco, and more.

BS Standard Fishplates for Railway Rails (BS47-1:1997)
Specifications	Length of 4-bolt fishplate (mm)	Length of 6-bolt fishplate (mm)	Diameter of bolt holes in fish plates (mm)	Calculated weight per pair (4 hole) (kg)	Calculated weight per pair (6 hole) (kg)
BS50 “O”	406.4	609.6	20.64	6.68	10.14
BS60A	406.4	609.6	20.64	9.84	14.76
BS60R	406.4	609.6	20.64	8.75	13.14
BS70A	406.4	609.6	23.81	11.10	16.65
BS75A	406.4	609.6	23.81	11.82	17.73
BS75R	406.4	609.6	23.81	10.95	16.42
BS80A	406.4	609.6	23.81	13.15	19.72
BS80R	406.4	609.6	23.81	11.92	17.89
BS90A	457.2	685.8	26.99	17.49	26.23
BS95A	457.2	685.8	26.99	18.71	28.05
BS100A	457.2	685.8	26.99	19.96	29.94
BS110A	508	914.4	26.99	30.11	54.64
BS113A	507	914	27	30.11	54.64

We could also arrange production according to customers’ required drawing.

BS Standard Sizes

The British Standard (BS) sizes for fish plates are widely used in the United Kingdom and some countries in the Middle East and Africa. The BS standard sizes include BS60, BS75, and BS80. These sizes are designed for rails with different weights and dimensions. For instance, BS60 fish plates are used for rails that weigh 30.7kg/m, while BS75 fish plates are used for rails that weigh 47.6kg/m. BS80 fish plates are used for heavy rails that weigh 63.7kg/m. The dimensions of BS60 fish plates are 203.2mm x 114.3mm x 25.4mm, while those of BS75 fish plates are 228.6mm x 114.3mm x 25.4mm. The dimensions of BS80 fish plates are 305mm x 127mm x 38mm.

Quality Control in Rail Fishplate Production

We strictly follow standard procedures and maintain a robust quality control system for our suppliers:

Raw Material Inspection:

Before producing rail fishplates, we check and test all raw materials. Suppliers are required to provide production batch numbers, chemical composition data, mechanical properties, and other relevant test indicators.

In-Process Quality Testing:

Our quality control inspectors conduct sampling and batch testing during the manufacturing process. We verify material compliance using raw material certificates and other control methods to ensure the integrity of the testing process.

Physical and Chemical Testing:

Depending on the specific requirements of the rail fishplate, we carry out corresponding physical and chemical tests. If the results do not meet our standards, the materials will be rejected. Only materials that fully comply with our criteria are accepted.

Supplier Coordination and Oversight:

For semi-finished products and external suppliers of rail fishplates, we regularly hold quality control coordination meetings. We also provide technical advice and guidance to ensure all delivered products meet quality standards before shipment.

Our Certification

GNEE RAIL

productcate-1-1

FAQ

Q: What is the function of fish plates in rail tracks?

A: Fish plates are used to join two sections of rail in a track. The joint between two sections of rail is a weak point in the track because it is prone to wear and tear. Fish plates provide additional support and strength to the joint, helping to maintain the integrity of the track.

Q: What are the different types of fish plates?

A: There are two main types of fish plates: bolted and welded. Bolted fish plates are attached to the rails using bolts and nuts, while welded fish plates are attached using a welding process.

Q: What are the materials used to manufacture fish plates?

A: Fish plates are typically made from steel, cast iron, or aluminum. Steel fish plates are the most common and are used in most applications. Cast iron fish plates are used in special applications where there is a need for a more rigid joint, while aluminum fish plates are used in areas with high electrical conductivity.

Q: Why are standard sizes important for fish plates?

A: Standard sizes are important for fish plates because they ensure that the plates will fit properly with the rail sections they are joining. Using the wrong size of fish plate can result in a weak joint that is prone to failure.

Q: What are the UIC, AREMA, and BS standard sizes for fish plates?

A: The UIC standard sizes for fish plates include UIC54, UIC60, and UIC70. The AREMA standard sizes include 115-119RE, 132-136RE, and 141-143RE. The BS standard sizes include BS60, BS75, and BS80.

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional bs standard railway fish plate manufacturers and suppliers in China, featured by quality products and low price. Please rest assured to buy cheap bs standard railway fish plate in stock here from our factory. Contact us for customized service.
