Arema Standard Railway Fishplate
GNEE RAIL, founded in 2008, is engaged in the production and international supply of rail fish plates for railway and industrial rail applications. The company manufactures fish plates suitable for various rail profiles, with an emphasis on durability, accurate fit, and operational safety. Through continuous improvement in production management and technical capability, GNEE RAIL has established long-term cooperation with customers in approximately 150 global markets, providing dependable rail joint solutions for diverse railway environments.
-
![Arema Standard Rail Fishplate]()
Arema Standard Rail FishplateIn rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.read more -
![Arema Standard Fishplate For Railroad]()
Arema Standard Fishplate For RailroadRail fish plate, also called rail joint or joint bar, splice bar, is a metal joints bar connected to the ends of two rails to bond them together. A quality rail joint bar can largely reduce the...read more -
![AREMA Standard Fish Plate Joint Bar]()
AREMA Standard Fish Plate Joint BarIn rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The top and bottom edges are tapered inwards so...read more -
![Arema Standard Fish Plate -Railroad Fasteners]()
Arema Standard Fish Plate -Railroad FastenersIn rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The top and bottom edges are tapered inwards so...read more -
![Rail Joint Type -- Fishplate]()
Rail Joint Type -- FishplateA fishplate, splice bar or joint bar is a metal connecting plate used to bolt the ends of two rails into a continuous track. The name is derived from fish, a wooden reinforcement of a "built-up"...read more -
![Rail Fish Plates Meet AREMA Standard]()
Rail Fish Plates Meet AREMA StandardRailway fishplates and guide rails are important components of the railway system. Their role is to guide the train along the track and at the same time bear the weight and impact of the train.read more -
![AREMA Rail Fish Plate]()
AREMA Rail Fish PlateRail joints, also known as fishplates, splice bars or joint bars, are used in railroad terminology to join two rails together. The name of this device comes from a fishtail, a wooden pole with a...read more -
![AREMA Fishplate]()
AREMA Fishplate• AREMA Fishplate Joint Bar • 6 hole 36" availableread more
• 4 hole 24" available
• Fish plate holes can be punched or drilled.
• Size: insulation 132RE -
![Welding Railroad Rail]()
Welding Railroad RailWelding railroad rails is a crucial process in rail infrastructure maintenance and construction. Welded rails create continuous, smooth track sections that offer numerous benefits over traditional...read more -
![Bonded Insulated Rail Joints]()
Bonded Insulated Rail JointsBonded insulated rail joints are specialized components used in railroads to create electrically insulated connections between rail sections.read more -
![Compromise Joints]()
Compromise JointsIn the context of railroads, "compromise joints" typically refer to a type of rail joint that is used to join different rail profiles or sizes together.read more
Why choose us
One-Stop Service
We offer a full range of services to meet all your rail fastening system needs, from design and manufacturing to installation and maintenance.
Commitment to Quality
Quality is our top priority, and we adhere to stringent quality control measures throughout the production process to deliver products that meet or exceed industry standards.
Market-Focused Solutions
We stay informed about market trends and developments to provide innovative solutions that address current challenges and anticipate future needs.
Professional Technical Team
Our team of experts brings years of experience and specialized knowledge to ensure that your rail fastening system is designed to meet the highest standards of quality and performance.
Customer-Centric Approach
We prioritize customer satisfaction and strive to understand and fulfill our clients' unique requirements. Our customer-centric approach ensures that your needs are met promptly and effectively.
Sales Market
And our railway products are exported to over 150 countries and regions worldwide, including the United States, Russia, India, Canada, Brazil, South Africa, Mexico, the United Kingdom, Spain, Bangladesh, Kenya, Iraq, Nicaragua, Laos, Monaco, and more.
|
Standard |
Type |
Length/Diameter |
Weight /Material |
|
|
AREMA 2018 |
115RE |
4 hole-24″ |
17.04Kg |
|
|
115RE |
6 hole-36″ |
25.56Kg |
||
|
132RE-136RE |
4 hole-24″ |
17.75Kg |
||
|
132RE-136RE |
6 hole-36″ |
26.63Kg |
||
Materials:
Steel 45#,50#,55#,Q235
Model:
Customized according to the drawing
Surface:
Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Tensile Strength:
70kg/mm2
Extensibility:
12%
Packing Details:
20-40 pieces per bundle with fumigation free wooden box
MOQ:
100 Piece/Pieces
Supply ability:
500 Ton/Tons per Month
Delivery:
Within 20 working days
AREMA Standard Sizes
The American Railway Engineering and Maintenance-of-Way Association (AREMA) standard sizes for fish plates are widely used in the United States and Canada. The AREMA standard sizes include 115-119RE, 132-136RE, and 141-143RE. These sizes are designed for rails with different weights and dimensions. For instance, 115-119RE fish plates are used for rails that weigh 56.9kg/m, while 132-136RE fish plates are used for rails that weigh 67.4kg/m. 141-143RE fish plates are used for heavy rails that weigh 76.9kg/m. The dimensions of 115-119RE fish plates are 254mm x 114.3mm x 25.4mm, while those of 132-136RE fish plates are 279.4mm x 127mm x 25.4mm. The dimensions of 141-143RE fish plates are 330mm x 152.4mm x 25.4mm.
|
Q235B |
Mechanical Property |
Chemical Composition |
|||||||||||||||||||||||||
|
Yield strength |
Tensile strength |
Elongation |
Hardness |
C |
Si |
Mn |
S |
P |
Cr |
Ni |
Cu |
||||||||||||||||
|
MPa |
kg/mm² |
MPa |
kg/mm² |
min |
HB |
≤ |
≤ |
≤ |
≤ |
≤ |
|||||||||||||||||
|
≥235 |
360~510 |
18 |
≤0.17 |
≤0.35 |
≤0.65 |
0.030 |
0.030 |
0.25 |
0.25 |
0.25 |
|||||||||||||||||
|
55# |
Mechanical Property |
Chemical Composition |
|||||||||||||||||||||||||
|
Yield strength |
Tensile strength |
Elongation |
Hardness |
C |
Si |
Mn |
S |
P |
Cr |
Ni |
Cu |
||||||||||||||||
|
MPa |
kg/mm² |
MPa |
kg/mm² |
min |
HB |
≤ |
≤ |
≤ |
≤ |
≤ |
|||||||||||||||||
|
≥380 |
≥39 |
≥645 |
≥66 |
13 |
0.52-0.60 |
0.17-0.37 |
0.50-0.80 |
0.030 |
0.030 |
0.25 |
0.25 |
0.25 |
|||||||||||||||
|
Standard |
Type |
Length/Diameter |
Weight /Material |
|
|
AREMA 2018 |
115RE |
4 hole-24″ |
17.04Kg |
|
|
115RE |
6 hole-36″ |
25.56Kg |
||
|
132RE-136RE |
4 hole-24″ |
17.75Kg |
||
|
132RE-136RE |
6 hole-36″ |
26.63Kg |
||
We could also arrange production according to customers’ required drawing.
Arema Standard Railway Products Manufacturing Process
Product Design and Verification
During production, we perform in-process inspections and apply statistical process control to continuously monitor quality, ensuring all final products meet or exceed AREMA standards through rigorous testing
Material Selection
We source high-quality materials that comply with AREMA standards and conduct material testing to ensure durability and suitability for railway applications.
Manufacturing Process
Our approach involves using advanced manufacturing techniques for precision and quality, regularly training staff on AREMA compliance and new technologies, and conducting routine machinery maintenance to prevent faults and maintain consistent product quality.
Quality Assurance
During production, we conduct in-process inspections and tests to detect any deviations from the standard. We apply statistical process control to monitor quality continuously and ensure that final products undergo rigorous testing to meet or exceed AREMA standards.

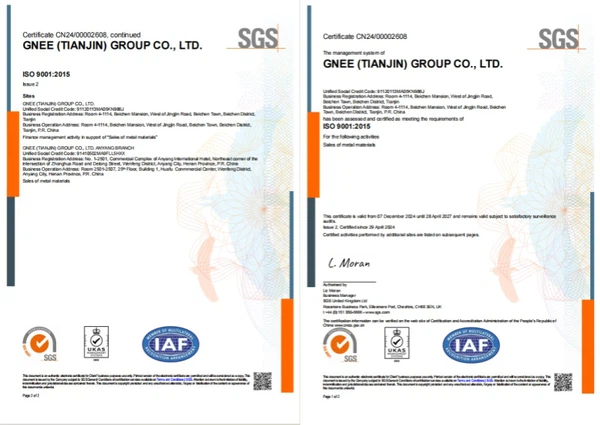

Our Certification
FAQ
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional arema standard railway fishplate manufacturers and suppliers in China, featured by quality products and low price. Please rest assured to buy cheap arema standard railway fishplate in stock here from our factory. Contact us for customized service.
