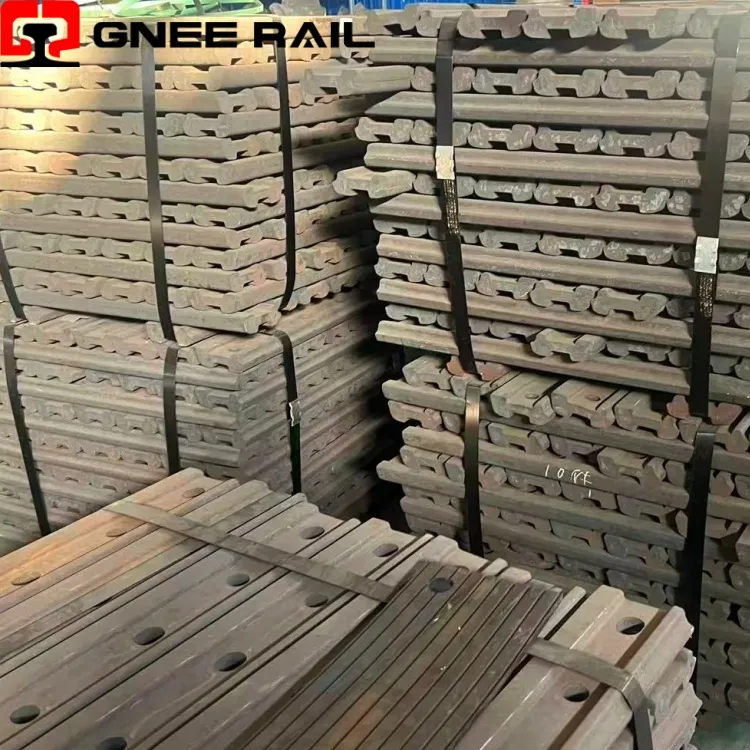

Rail Joint Type -- Fishplate

Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of rail joint type -- fishplate in China, also supports customized service with low price. Please feel free to buy cheap rail joint type -- fishplate made in China here from our factory.

A fishplate, splice bar or joint bar is a metal connecting plate used to bolt the ends of two rails into a continuous track. The name is derived from fish, a wooden reinforcement of a "built-up" ship's mast that helped round out its desired profile. The top and bottom faces taper inwards along their short dimensions to create an even alignment between the two rails when the fish plate is wedged into place by tightening its bolts during installation.

In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.

AREMA Standard Railway Fish Plate

Specifications of Railway Steel

Railway Steel

Specification: 8kg,12kg,15kg,18kg,22kg,24kg,30kg Material: 55Q/Q235B Length: 6-12m
Specification: 38kg, 43kg, 50kg, 60kg Material: 45mn/71mn Length: 12m-25m
Specification: 70kg, 80kg, 100kg, 120kg Material: 71mn/75V Length: 12m I-steel for mining

I-steel for mining

Specification：9#, 11#, 12# Material：20mnk Length：9m-12m

Support steel

Specification：18U, 25U, 29U, 36U Material: 20mnk Length: 9m-12m

Rail fish plate plays an irreplaceable function in fastening the steel rails, especially for securing the normal running of vehicles and the safety of rail track. The maintenance of rail joint and railway influences the safety of the passengers and our property. So it is necessary to check and maintenance the rail fish plate according to the inspection standard.
