Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of fish plate for 60 kg rail in China, also supports customized service with low price. Please feel free to buy cheap fish plate for 60 kg rail made in China here from our factory.
GNEE Rail Parts can supply all types of rail fishplates. Besides 60kg fish plate, we can also provide 43KG rail fish plate, 50KG railway fish plate, 75KG railroad fish plate, etc.
Fish Plate For 60 Kg Rail Specifications:
Material: 45# steel, 45Mn
Holes: 4 holes, 6 holes
Surface: Plain/Black Oil
Dimensions (L x W x H) (mm): 790/820mm
Producing process: Hot rolled
Application: 60 kg rail
Standard: TB/T 2345-2008
Packing: Bundled by steel strips with iron/wood pallets
| Rail Type | China Standard Fishplates in railway | |
| Fishplates Mechanical Properties | Fishplates Chemical Composition | |
| 43KG , 50KG, 60KG, 75KG | Tensile Strength | Rm : ≥785Mpa |
| Yield Strength | ReL / Rr0.2: ≥520 Mpa | |
| Elongation | A≥9% | |
| Reduction of Area | Z: ≥20% | |
| Brinell Hardness | HBW10 / 3000 : HBW 227-388 | |
| Cold Bending | 30°, in good condition | |
| Standard | TB/T2345-2008 | |
| railway track Fishplates Material | |||||
| C55 | C | Mn | Si | S | P |
| 0.52-0.60 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | |
Rail Fish Plate, also known as joint bar,Splice bar, is the fastener to connect the rails, generally consist of clamp and track bolt, could be removed and reuse.
We can provide various kinds of fish plates in railway track for our product 8-30Kg Light Rail, 38Kg-75Kg Heavy rail, QU70-QU120 Crane rail,UIC54 and UIC60 Rail.
Railway fish plate is used to joint/connect two pieces steel rails, such as light steel rail and heavy steel rail.
There are two kinds of fish plates, 4 holes and 6 holes. 4 holes fish plate is used to connect light steel rail,6 holes fish plate is used to connect heavy steel rail.

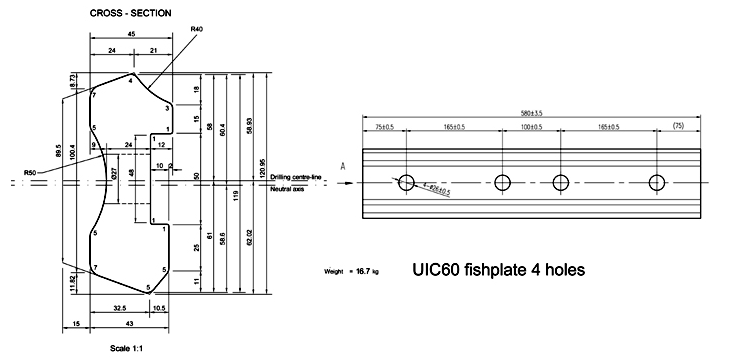

4 holes fishplate for UIC60 steel rail is used for connecting UIC60 steel rail, it has two kinds of dimension, the gap of rail is different, the narrow gap is used for Areas with minimal temperature changes, wide gap is used for Regions with significant temperature changes. The choice should base on your design.
UIC60 fishplate 4 holes
If you need it, please contact us to ask the details.
We can supply the railway fasteners as below, welcome to your inquiry:
Fish Bolt: 22×135, 24×135, 24×145
High-strength Fish Bolt: 22×135, 24×135, 24×145
Insulated Bolt: 22×160, 24×160, 24×170
T type bolt: M24x110
Flat Washer: 6×25×50
Spring Washer: 20×8, 24×8, 26×8
Double Spring Washer: 26×8
Screw Spike: M22x185, M24x195
Square head screw spike: 22×145, 22×155, 22×165
Hexagon screw spike: 22×145, 22×155, 22×165, 22×185, 22×195
Dog Spike: 16×16×165mm, 8x8x80mm, 10x10x100mm
Gauge Apron: 10#, 13#, 14#, 20#
Antiseptic gauge apron: 10#
Steel base plate/ base plate: For any type of rail
Rail anchor: For any type of rail
Rubber tie plate: For any type of rail
Elastic rail clip: A, B Type
Elastic rail clip: SKL serious Type
Antiseptic elastic rail clip: G Type, W Type, B Type
Nylon apron block: V type, 0-4#, 2-6#
Insulated Rail Gauge Rod: φ32, φ36
Fishplate: 43kg, 50kg, 60kg, 75kg, BS60, BS75R, BS80A, BS90A and so on.
Insulated fishplate: 43, 50, 60, 75, UIC60, UIC54 etc.
GNEE Rail is a professional manufacturer and supplier to provide different kinds of 4 holes or 6 holes railway track fish plates with round or oval holes, such as regular joint bars, compromise joint bars(include common joint bar, offset joint bar, weld repair joint bar), insulated joint bars, damper fishplate, variable Cross-Section Fish Plate and glued insulated fishplates, etc.
