Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of under rail ballast mat in China, also supports customized service with low price. Please feel free to buy cheap under rail ballast mat made in China here from our factory.
Product Introduction

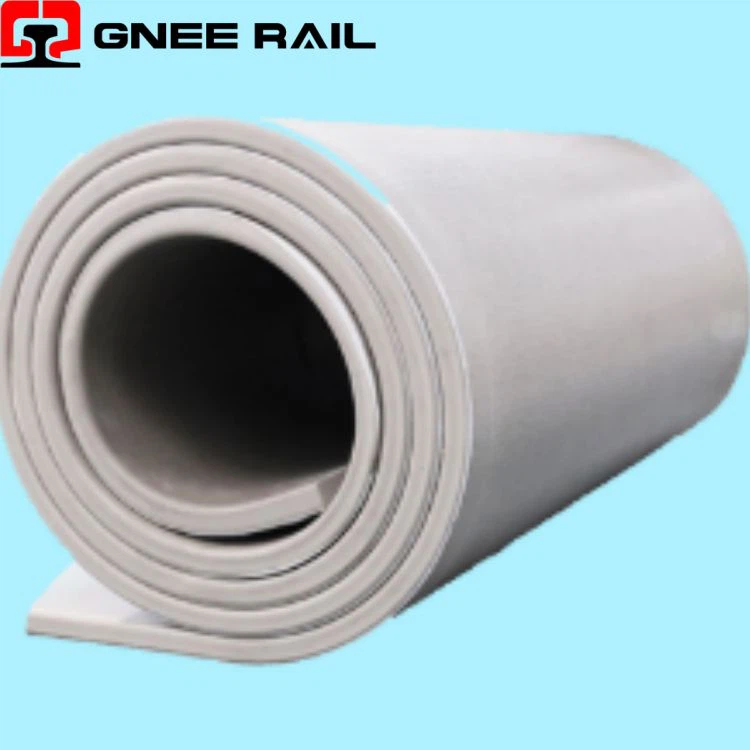

Railway ballast mats are elastic cushioning materials installed between the bottom of the railway ballast bed and the subgrade, serving as critical functional components in track structures. Their primary purpose is to absorb dynamic train loads through elastic deformation, reducing ballast particle breakage and degradation, thereby extending ballast bed maintenance cycles and enhancing track stability.
In terms of structural characteristics, ballast mats are typically made of polymer sheets with a thickness of 10-50mm, featuring specially designed surface textures to improve mechanical interlocking with the ballast. Based on material composition, they can be classified into:
Rubber ballast mats: Mostly made from recycled rubber, offering lower cost but moderate weather resistance
Polyurethane ballast mats: Exhibiting excellent fatigue resistance, making them suitable for heavy-haul lines
Composite ballast mats: Achieve enhanced performance through material hybridization for specific functions
The role of ballast mat
| Function Category | Key Benefits |
|---|---|
| Mechanical Protection | - Absorbs train impact energy through elastic deformation - Distributes track load pressure - Restricts ballast particle displacement |
| Lifespan Extension | - Reduces ballast breakage and degradation - Maintains ballast gradation stability - Decreases maintenance frequency |
| Performance Improvement | - Enhances overall ballast bed stability - Optimizes stress distribution on track - Minimizes uneven settlement |
| Environmental Adaptation | - Mitigates temperature variation effects - Blocks moisture penetration - Reduces vibration transmission |
| Economic Benefits | - Decreases ballast replenishment needs - Extends maintenance intervals - Lowers lifecycle costs |
Polyurethane ballast mat
Advantages of using polyurethane ballast mats：
| Category | Key Advantages |
|---|---|
| Mechanical Performance | • Optimal dynamic-to-static stiffness ratio (≤1.35) • Structural integrity maintained after 3 million load cycles • Compressive strength exceeds 10MPa |
| Durability | • 2-3 times greater fatigue resistance than rubber mats • Service life over 15 years • Superior anti-aging characteristics |
| Environmental Adaptability | • Operational temperature range: -40°C to 80°C • Resistant to oils, acids and alkalis • Water absorption rate below 3% |
| Cost Efficiency | • Reduces ballast replenishment by 40-60% • Maintenance intervals of 8-10 years • Over 30% reduction in total lifecycle costs |
| Specialized Applications | • Preferred solution for heavy-haul railways (>30t axle load) • Exceptional vibration damping for high-speed rail • Performs well in extreme environments |
Key Points for Laying Ballast Mats
The base layer must be level and clean
Before laying, thoroughly remove sharp objects such as gravel to ensure the roadbed surface is smooth and free of protrusions.
Stretching or wrinkling is strictly prohibited
Lay the material naturally in a relaxed state; forced pulling that may cause deformation is forbidden.
Seams must be tightly sealed
All seams must overlap by at least 10cm and be sealed with specialized adhesive.
Cover with ballast within 48 hours
After installation, ballast must be laid within two days to avoid exposure to sunlight or rain.
Direct mechanical compaction is prohibited
During ballast spreading, machinery must not directly contact the protective layer, maintaining a buffer layer of at least 30cm.
GNEE RAIL focuses on providing high-quality ballast mats. With strict production standards and mature processes, our products have excellent load dispersion, durability and drainage performance, which can effectively improve the stability of the roadbed and reduce maintenance costs.
We adhere to customer orientation, provide customized specifications and professional technical support to ensure that products meet the needs of different projects. At the same time, the perfect supply chain system guarantees stable delivery capabilities and helps customers to efficiently advance project progress.
Whether you need standard products or special solutions, we will become your trusted partner with reliable quality and efficient services.
