Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of skl14 rail clip for railway system in China, also supports customized service with low price. Please feel free to buy cheap skl14 rail clip for railway system made in China here from our factory.
Product Introduction

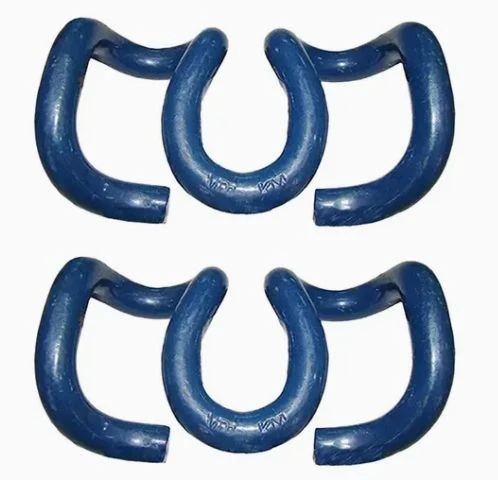

The SKL14 spring rail fastening system is a key fastener system widely used in railway track construction and maintenance. It consists of SKL spring rails, rail pads, spiral spikes, pads, washers, plastic sleeves and other components.
The system has strong fastening capabilities thanks to the SKL spring rails made of high-quality materials such as 60Si2CrA. At the same time, the cushioning, shock absorption and insulation properties of the rail pads can effectively reduce the vibration and noise generated during train operation, reduce damage to the track structure, and increase the service life of the track.
It has a wide range of applications, whether it is UIC 54, UIC 60 rails, or 50kg rails, 60kg rails, it can achieve stable adaptation. Moreover, the system can be flexibly customized according to the needs of different railway projects, with various surface treatment methods and packaging that can meet diverse requirements. The SKL14 spring-clip rail fastening system has the advantages of reliable connection, compact structure and easy installation. While ensuring the high-speed, safe and smooth operation of trains, it also significantly reduces the subsequent maintenance costs. It is an indispensable and important part of the modern railway track system and plays a vital role in improving the efficiency and safety of railway transportation.
Product Specifications
| Other Types of GNEE Rail Fastening Types | |
| Same series | SKL1 |
| SKL2 | |
| SKL3 | |
| SKL12 | |
| SKL14 | |
| General series | E type |
| N type | |
| KP / KPO type | |
| Special series | PR type |
| Deenik type | |
| Russian type | |
| Fats clip | |
| Gauge lock clip | |
| Composition | Rail Tension Clip | Angled Guide Plate | Rail Pad | Screw spike | Flat washer | Plastic dowel |
| Type | SKL14 | Wfp14K-12 | As drawing | 24*161mm | As drawing | As drawing |
| Material | 60Si2CrA | PA66 | EVA | 35# steel | Q235 steel | PA66 |
| Weight (kg) | 0.495 | 0.17 | 0.17 | 0.635 | 0.048 | 0.072 |
| Requirement | HRC41-46 | black | 6mm | L=135mm |
Product Application
As a professional service provider in the field of international trade of railway fasteners, GNEE RAIL is committed to building a bridge between China's high-quality manufacturing and global railway construction. The company's main products cover all kinds of standard parts and special parts required for rail engineering, and all cooperative factories have passed strict supplier certification.
We have innovatively established a "product + service" business model, not only providing high-quality products, but also equipped with a professional team of engineers to provide technical consultation for customers.
