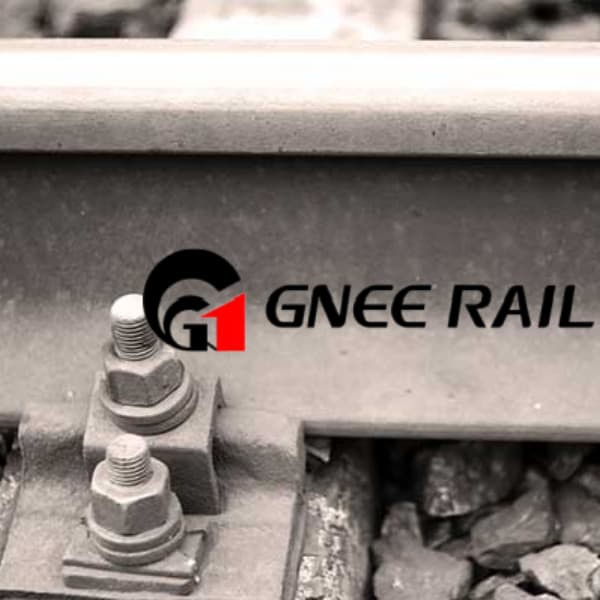

Maintaining consistency between the thread profile accuracy of track bolts and the torque of the spring clip fastening system is crucial
Why do minor deviations in thread profile accuracy cause significant torque fluctuations in elastic clip fastening systems?
The preload of elastic clips is converted from bolt torque and transmitted through tight engagement between bolt and nut threads. A deviation in the thread profile angle (e.g., ±0.5° from the Chinese standard 60°) changes the thread engagement from "surface contact" to "local line contact," concentrating contact stress on a few thread profiles. Deviations in pitch or pitch diameter cause uneven engagement gaps, leading to nonlinear changes in frictional resistance during tightening. These deviations can result in a preload deviation of over 15% under the same torque; during service, some bolts loosen due to insufficient preload, while others fatigue and fracture due to overload, disrupting the consistency of torque retention.
Why does the pitch diameter tolerance of the thread profile have a more significant impact on bolt preload than the profile angle?
The pitch diameter is the core fitting dimension of the thread, determining the engagement tightness between the bolt and nut. An oversized pitch diameter increases the thread engagement gap, requiring additional rotation to achieve the design preload during tightening and making it prone to loosening in service. An undersized pitch diameter causes interference fit of the threads, leading to a sharp increase in frictional resistance during tightening, which easily causes yielding of the bolt shank and failure to reach the design preload. In comparison, the impact of profile angle deviation is mainly concentrated in contact stress distribution, while the pitch diameter tolerance directly determines the "reference value" of preload-its sensitivity to preload is 2-3 times that of the profile angle, making its impact more significant.
What is the difference in thread profile accuracy grade requirements between high-speed and conventional line elastic clip fastening systems for track bolts?
Track bolts on conventional lines typically adopt the 6g/6H tolerance grade (bolt 6g, nut 6H) for thread profile accuracy, which can meet the torque consistency requirements under moderate vibration loads. High-speed lines have high vibration frequencies and frequent dynamic load impacts, requiring the thread profile accuracy to be upgraded to the 5g/5H grade, with the pitch diameter tolerance controlled within ±0.02mm and the profile angle tolerance within ±0.2°. The higher accuracy grade homogenizes the thread engagement gap, controlling the preload deviation under the same torque within 5% and ensuring the torque retention consistency of the elastic clip fastening system under high-frequency vibration.
How do the "thread rolling" and "thread cutting" processes in thread machining differ in their impact on profile accuracy and torque consistency?
Thread rolling forms threads through metal plastic deformation, resulting in a clear thread profile, high pitch diameter accuracy, low surface roughness (Ra≤0.8μm), and continuous metal fibers of the thread. The frictional resistance during engagement is stable, and torque consistency is excellent-making it the preferred process for track bolts. Thread cutting forms threads through machining, leaving cutting marks at the thread root, high surface roughness (Ra≥3.2μm), and cut metal fibers. The frictional resistance during engagement fluctuates greatly, leading to poor torque consistency. Additionally, the pitch diameter tolerance of thread cutting is difficult to control precisely; it is only suitable for low-precision temporary fastening bolts and is strictly prohibited for high-speed and heavy-haul lines.
How to quickly screen track bolts with unqualified thread profile accuracy using the "torque re-inspection method" on-site?
Select 10 sets of bolt-nut combinations from the same batch, tighten them to the design torque using a calibrated torque wrench, let them stand for 10 minutes, then conduct a torque re-inspection. Record the difference between the re-inspected torque and the initial torque, and calculate the torque retention rate. For bolts with qualified thread profile accuracy, the torque retention rate should be ≥95%, and the standard deviation of the 10 sets of data should be ≤1N·m. If the torque retention rate is below 90% or the standard deviation exceeds 2N·m, it indicates deviations in thread profile accuracy and unstable engagement frictional resistance. All such bolts must be returned to the manufacturer for re-inspection and are strictly prohibited from use to avoid track fastening failure caused by poor torque consistency.
