Rail fastening system is a set of fasteners that used to connect steel rail and railway sleepers. Generally, the railway fastening system is required to have reliable connection, simple structure and features of elasticity, shock absorption and insulation.

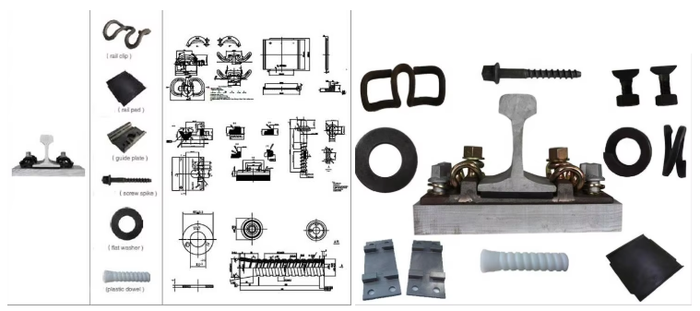

As for the components of SKL railway fastening system, including SKL rail clips, rail pad, screw spike, tie plate, washer, plastic dowel, track bolt and nuts, etc. common sizes of SKL rail fastening system include SKL 12, SKL 14 and SKL 3 rail fastening system.

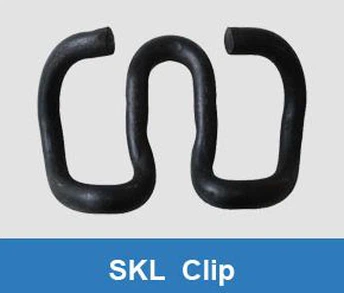

rail clip rubber pad rail screw
| Specifications for ONE unit of SKL Clip rail fastening system | ||||
| Item | Quantity | Type | Material | Remark |
| SKL tension clip | 2 | skl1, skl3, skl12, skl14 | 60Si2CrA, 60Si2CrA, 38Si7 | Hardness: 42-47HRC |
| Standard: DIN17221, GB/T1222 | ||||
| Ss35 screw spike | 2 | M24×150mm | Grade 4.6: Q235 | Standard: ISO898-1 |
| Grade 5.6: 35# | UIC864-1 | |||
| Grade 8.8: 45# | NF F500-50 | |||
| Flat washer | 2 | Uls7 | Q235 | Standard: EN10025, EN10139 |
| Plastic dowel | 2 | For different sizes of screw spike | HDPE, Reinforced Nylon 66 (PA66) | For insert into concrete sleeper |
| Guide plate | 2 | UIC54, UIC60, 50kg rail, 60kg rail, | Reinforced Nylon 66 (PA66) | Different designs are available |
| and other sizes as ordered | ||||
| Rail pad | 1 | Size as ordered | EVA, or rubber | |
SKL 12 Railway Fasteners System
As a typical type of SKL rail fastening system, SKL-12 rail fastening system is normally used in the ballast less track, which belongs to the separate rail fastening system of sleeper track plate without concrete retaining shoulder. Its main structural features as follows:
- Separate screw holes are arranged at both ends of ribbed plates and connected with railway sleeper/track plate by fork bolts.
- The ribbed plate is provided with t-bolt insert seat and retaining shoulder, and the elastic clip is fixed by tightening the nut of t-bolt.
- The horizontal and lateral adjustment is accomplished by using different sizes of eccentric heart taper pin.
- High and low adjustment of rail can be realized by inserting high and low setting plate.
GNEE RAIL also offers different kinds of railway fasteners to meet client's requirements, such as Elastic Rail Clip and Clamp, Rail Screw Spike, Plastic Dowel, High Tensile Track Bolt with Nut, Rail Base(Tie) Plate, Rail Fish Plate, Railway Shoulder(Insert), Fish Bolt, Railroad Rubber and EVA Pad, etc. Samples and drawings provided by customer, we will manufacture qualified products accordingly.Contact us for more product information.
