Rail fastening system is used for fastening the steel rail and railway sleeper. The function of rail fastening system is to maintain the gauge and prevent the vertical and horizontal movement of rails relative to the position of the sleeper. A fastening system is usually consist of rail tie plate, spike, clip, rail anchor or other fasteners.
rail elastic clip
Rail clip, or called elastic rail clip, is used to fasten steel rails to the underlying tie plate. Through bending and distortion, rail clip can put pressure on the rail, which prevents longitudinal movement of the rail, either from changes in temperature or through vibration. In general, rail clips are made of forged spring steel produced by hot forging process.

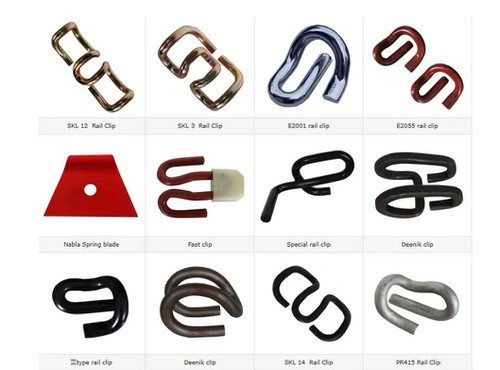

GNEE RAIL can provide various types of railway elastic clips, such as skl rail clip,e type elastic clip,kpo railway clamp,nabla railroad clamp,fast clip etc.
railway spike
Rail Spike is a kind of fasteners which is used to connect steel rail and sleeper or base plates and sleeper. The rail spikes are roughly chisel-shaped with a flat-edged point. The main function of the rail spike is to keep the rail in gauge.
GNEE RAIL can provide various types of railway spikes, such as dog spike, Ss series Sleeper Screw, Square head screw spike, Hexagon screw spike, etc., and can provide customized products according to the drawings provided by customers.
| Specification | Material | Surface | Standard |
| 5/8*6 '' | A3,Q235, 45#,55#, etc | According to customer needs. | According to customer's drawings or samples. |
| 9/16*5-1/2 '' | |||
| 3/8''*3-1/2 '' | |||
| 1/2*3-1/2 | |||
| Other kinds |
| Type | Ss5, Ss 8, Ss25, Ss36, UIC864-1 Series, etc |
| Raw material | Q235, 35 steel, 45steel, 40Mn2, 20 Mn Si |
| Grade | 4.6, 4.8, 5.6, 8.8 |
| Surface | plain(oiled), black paint, color paint, zinc, HDG, etc |
rail tie plate
Rail tie plate is also called rail base plate or sole plate, it is a main component in railroad construction of a crane rail or track support system.
| Product Name | Type | Process | Material |
| Tie plate | Single Shoulder | Rolled,Forging,Casting | QT450-10,20#,35#,etc |
| Double Shoulder | |||
| Hook Twin Tie Plates | |||
| Direct Fixation Tie Plates | |||
| Other kinds of baseplate are also available according to your drawings or samples! | |||
Technical Parameter for popular rail tie plates
| Type | Dimension | Holes | Incline | Rail | Weight(Kg) |
| Rph 1/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,86 |
| Rp 01/01/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,70 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 36,3 (2x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 FVZ | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,69 |
| Sph 1(a) | 345/350/127x410x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 20,60 |
| Rph 6/160 | 370/310/152x160x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 8,44 |
| Rph 6/210 | 370/310/152x210x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 11,32 |
| SZ 60 | 370/350/152x420x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 22,73 |
| Rph 11 Ü | 664/554x160 | Ø 26 (4x) | 1:40 | S 54 | 15,37 |
| Rph 13 Ü | 690/570x160 | Ø 26 (4x) | 1:40 | UIC 60 | 15,27 |
| Rpo 5 | 345/285/127x160x15/13 | Ø 26 (4x) | 1:20 | S 49/S54 | 8 |
Railroad anchor
Rail anchors made in one-piece construction from spring steel are designed to fasten the steel rail tight on the base of the rail to prevent the rail from longitudinal movements, i.e. the " creeping" of the rail, caused by changing temperature, grades, traffic patterns, and braking action of trains.
Rail anchors specifications
| Type | Used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail, or other types upon customers' drawings. | ||
| Material | 60Si2MnA | 45# | QT500-7 |
| Chemical composition(%) | C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 | ||
| C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 | ||
| Surface | plain (oiled),color painting, zinc painted or HDG | ||
| Standard | AS1085.10-20002 , DIN, ISO-9001 | ||
We also manufacture kinds of High Tensile Bolt with Nut and Washer, Rail Fish Plate, Rail Shoulder, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail and Other rail fasteners parts.Contact us for more product information.
