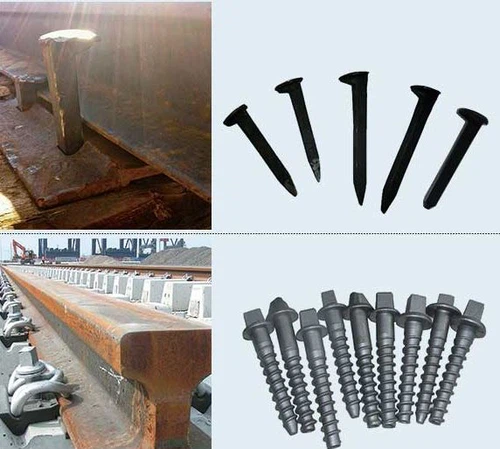

Spikes with various sizes are provided to meet the different requirements of penetrating length of spikes. The common track spikes are the 5/8"*6" and the 9/16"*5-1/2" for smaller rail sections, and they are usually secured in either 200 lb. kegs or 50 lb. kegs.Common types of rail spikes include dog-head spikes and screw spikes. As a professional railway fastener supplier, GNEE RAIL not only provides various sizes of railway spikes but also supplies multiple types of track fasteners such as elastic clips, baseplates, fish plates, bolts and nuts, rail anchors, switch components, embedded parts, and others.
| Specification | Material | Surface | Standard |
| 5/8*6 '' | A3,Q235, 45#,55#, etc | According to customer needs. | According to customer's drawings or samples. |
| 9/16*5-1/2 '' | |||
| 3/8''*3-1/2 '' | |||
| 1/2*3-1/2 | |||
| Other kinds |
| Type | Ss5, Ss 8, Ss25, Ss36, UIC864-1 Series, etc |
| Raw material | Q235, 35 steel, 45steel, 40Mn2, 20 Mn Si |
| Grade | 4.6, 4.8, 5.6, 8.8 |
| Surface | plain(oiled), black paint, color paint, zinc, HDG, etc |
| Type | Specification | Weight/kg | Surface | Standard |
| Ss 1/130 | M22*130 | 0.451 | UIC | |
| Ss 1/150 | M22*150 | 0.478 | Natural | AREMA |
| Ss 2/180 | M22*150 | 0.595 | Zinc | GB |
| Ss 5/150 | M24*150 | 0.545 | Paint | or |
| Ss 6/150 | M26*150 | 0.702 | Oil | According to your drawings or samples. |
| Ss 7/180 | M24*180 | 0.636 | According to your needs. | |
| Ss 8/140 | M24*140 | 0.528 | ||
| Ss 8/150 | M24*150 | 0.548 |
Hexagon screw spike
| Grade | 4.6 | 5 .6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa | Tensile strength: ≥ 800Mpa | Tensile strength: ≥ 1000Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | Yield strength: ≥ 900Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | Elongation: ≥ 9% | |
| Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | |
| without crack | without crack | without crack | without crack | |
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
Comparison of dog spikes and screw spikes
- Firstly, the screw spikes provides more than twice of the holding power than that of the dog spikes.
- Secondly, The production cost of a screw spike is higher than that of a dog spike or dog nail.
- Thirdly, a screw spike can also be used together with a spring washer. No matter it is a dog spike or a screw spike, it will be the best spike, if it is used in the right place. For more information regarding the differences, please contact us.
