What size are railroad tie plates?
Railroad tie plate sizes vary based on the rail size they are designed for, but common dimensions in the US market include 11 inches, 14 inches, and 14-3/4 inches. These plates are typically used with 5-1/2 inch and 6 inch wide rail bases. For example, AREMA standards define specific plates like a 11" plate for a 5-1/2" rail base.
Common sizes (US market): 11 inches, 14 inches, and 14-3/4 inches.
Corresponding rail base widths: These sizes are commonly used for rails with a 5-1/2 inch or 6 inch base.
Standardization: These dimensions are often based on AREMA (American Railway Engineering and Maintenance-of-Way Association) standards.

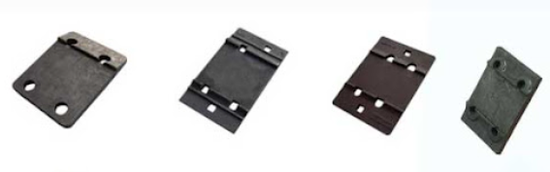

Specification of Rail Tie Plate
| Model | Application | Material | Unit Weight | Export Destination |
|---|---|---|---|---|
| 115RE Tie plate | AREMA 115RE rail | Q235 or QT400-15 |
10.6kg/pc | USA |
| 132/136RE Tie plate |
AREMA 132RE rail AREMA 136RE rail |
Q235 or QT400-15 |
11-12kg/p | USA |
| 115D Tie plate | AREMA 115D rail | Q235 or QT400-15 |
28.8kg/pc | USA |
| 100-8B Tie plate | AREMA 100-8B rail | Q235 or QT400-15 |
26kg/pc | USA |
| S49 Tie plate | S49 rail | QT450-10 QT400-15 Q235 |
7.57kg/pc |
| Model | Application | Specification | Material | Standard | Unit Weight | Export Destination |
|---|---|---|---|---|---|---|
| TYPE-D | Subway tie plate | 1/4"*8"*19-1/2" | Hot rolled carbon steel | ASTM-A36 H.R.1020. |
USA | |
| TYPE-19-A | Subway tie plate | 1/4"*8"*19-1/2" | Hot rolled carbon steel | ASTM-A36 H.R.1020. |
USA | |
| 01-63-14 | Subway tie plate | 20# | 4.53kg/pc | USA | ||
| 01-63-13 | Subway tie plate | 20# | 5.65kg/pc | USA | ||
| Base Plate | GB38kg rail | Q235 or QT400-15 QT450-10 |
8.5kg/pc |
| Type | for rail UIC54, UIC60, 50kg rail, 60kg rail, S49 and size as ordered | |
|---|---|---|
| Material- forged carbon steel | QT500-7 | QT450-10 |
| Chemical composition (%) | C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, P:≤0.07, S:≤0.03 |
| Surface | plain (oiled) | |
| Standard refers | UIC864-6 | |
| Type | Dimension | Holes | Incline | Rail | Weight(Kg) |
|---|---|---|---|---|---|
| Rph 1/160 | Rph 1/160 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,86 |
| Rp 01/01/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,70 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 36,3 (2x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 FVZ | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,69 |
| Sph 1(a) | 345/350/127x410x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 20,60 |
| Rph 6/160 | 370/310/152x160x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 8,44 |
| Rph 6/210 | 370/310/152x210x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 11,32 |
| SZ 60 | 370/350/152x420x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 22,73 |
| Rph 11 Ü | 664/554x160 | Ø 26 (4x) | 1:40 | S 54 | 15,37 |
| Rph 13 Ü | 690/570x160 | Ø 26 (4x) | 1:40 | UIC 60 | 15,27 |
| Rpo 5 | 345/285/127x160x15/13 | Ø 26 (4x) | 1:20 | S 49/S54 | 8 |
Detailed Functions of Railroad Tie Plate
- Fasten the Rails and Sleepers
Tie plate is an irreplaceable component in fastening the rails and sleepers, and it provides a solid foundation of the rails and reduces the abrasion damage of the sleepers. With the help of rail spikes and other fastening components, rail tie plates can fix the rail tracks properly and prolong the service life of rails and sleepers.
- Keep the Correct Rail Gauge
Consider of the force caused by the weight of passengers and the train, the rail may deviate from the original track slightly. It is tie plates together with sleepers which fasten the rails tightly so that the trains can run safely on the tracks. It is also vital for the railway workers to inspect and repair the railroad regularly, especially for the replacement of rail spikes, tie plates or other fastening accessories after using for a period of time.
- Distribute the Weight Forced on the Rail
Railroad tie plates can evenly distribute the weight of the train, cargo or passengers. The use of tie plates helps to reduce the friction between the rails and ties, and makes the sleepers last longer. With tie plates, the rails can bear the pressure evenly so that they can maintain a smoother surface.
GNEE RAIL offers different kinds of railway fasteners to meet client's requirements, such as Elastic Rail Clip and Clamp, Rail Screw Spike, Plastic Dowel, High Tensile Track Bolt with Nut, Rail Base(Tie) Plate, Rail Fish Plate, Railway Shoulder(Insert), Fish Bolt, Railroad Rubber and EVA Pad, etc. Samples and drawings provided by customer, we will manufacture qualified products accordingly.
