Background: Torque Is Only a Proxy for Preload

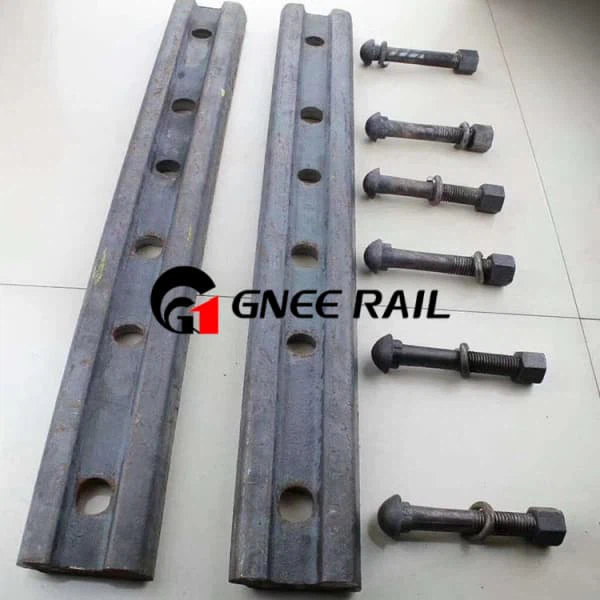

In a spring bar fastening system, track bolts clamp fishplates, baseplates or rail joint bars, and the service performance of the joint depends on the clamping force, not on the torque reading shown by the wrench. Torque is converted into preload through the thread, and the conversion factor, known as the nut factor, is sensitive to thread profile accuracy, surface finish, lubrication and materials. A bolt with an inaccurate thread profile can absorb a large share of the applied torque in friction and deliver far less clamping force than the design value, which explains why thread quality is a first-order requirement for track bolt procurement.
Thread Profile Accuracy and Tolerance Classes
Track bolts are normally manufactured to a 6g thread tolerance on the bolt and 6H on the nut, following the general metric screw thread system defined in ISO 965 and GB/T 197. The key controlled parameters are pitch diameter, pitch, flank angle and major and minor diameters. Pitch diameter tolerance has the strongest influence on the fit and on friction behavior; a bolt at the low limit of 6g combined with a nut at the high limit of 6H gives an easy-running fit, while the reverse combination can cause interference, galling and scatter in the measured torque.
Technical Parameters That Matter
| Parameter | Typical Requirement |
|---|---|
| Thread tolerance class | 6g bolt / 6H nut |
| Bolt property class | 8.8 or 10.9 per ISO 898-1 |
| Lubrication | Molybdenum disulfide or oil, k factor 0.15-0.25 |
| Torque retention after 24 h | At least 95% of initial value |
| Preload scatter in a batch | Within +/-15% with controlled lubrication |
These values are achievable only when thread profile accuracy is held within tolerance and the thread surface has a consistent finish. Random mixing of lubricants or uncalibrated wrenches can push preload scatter above 30 percent, which either loosens the joint or overstresses the bolt.
Inspection and Quality Control
Go and no-go ring gauges and plug gauges check pitch diameter and fit at receiving inspection.
Optical profile projectors and thread measuring machines verify pitch, flank angle and thread profile geometry on sample bolts.
Torque-tension testing on a calibrated rig measures the actual preload delivered at the specified torque for each production batch.
Hardness testing and tensile testing confirm the property class.
Site Practices for Consistent Torque
On site, the fastest way to destroy torque consistency is to tighten dry bolts, reuse lubricated bolts after washing, or use uncalibrated impact wrenches. Controlled tightening should apply the specified lubricant, use a calibrated torque wrench, and follow a two-pass sequence: an initial pass to seat the joint and a final pass to the target torque. Where preload accuracy is critical, angle-controlled tightening or hydraulic tensioning is used instead of torque control. Re-tightening after the first week of service captures the relaxation caused by coating seating and vibration, and the residual torque should be checked rather than assumed.
Common Misconceptions
Higher torque always means a stronger joint. Excessive torque can yield or break the bolt, while the preload still depends on the friction conditions of the thread.
Thread profile accuracy is only a fit issue. Pitch diameter and flank errors change friction and the nut factor, which shifts the preload delivered at a given torque.
One lubricant is as good as another. The k factor changes with lubricant type and quantity; changing the lubricant changes the preload even at the same torque.
Frequently Asked Questions
Q1: What do the thread classes 6g and 6H mean?
They are tolerance classes defined in ISO 965 and GB/T 197: 6g for the external thread of the bolt and 6H for the internal thread of the nut. The classes control pitch diameter deviation and tolerance, hence the fit and friction behavior.
Q2: Why does torque scatter matter for track joints?
Scatter in torque translates directly into scatter in preload. Low preload causes joint loosening and fatigue of bolts and fishplates; high preload risks bolt fracture and thread stripping.
Q3: How is thread profile accuracy verified on delivery?
Receiving inspection uses go/no-go thread gauges, and batch sampling with optical profile measurement and torque-tension testing verifies pitch, flank angle and actual preload delivery.
Q4: What is the effect of lubrication on the torque-tension relationship?
Lubrication lowers and stabilizes the friction coefficient. With a controlled lubricant the nut factor is typically 0.15 to 0.25, and preload scatter can be kept within plus or minus 15 percent.
Q5: Should track bolts be retightened after initial installation?
Yes. A re-torque pass after the first days of service compensates for seating relaxation, and regular inspection torque checks are part of track maintenance for spring bar fastening systems.
Q6: Can angle-controlled tightening replace torque wrenches?
Yes, for critical joints. Angle control tightens to a specified rotation beyond the snug point, which reduces the influence of friction scatter on preload.
