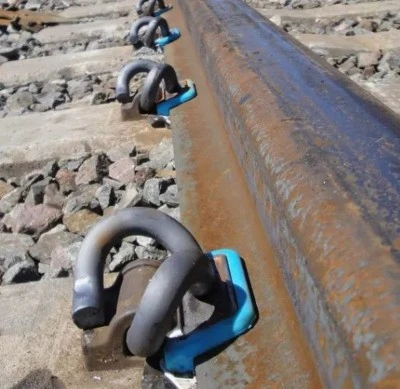

Elastic rail clip is one of the common railway fasteners in the railway system. In general, elastic rail clip is made of forged spring steel and has many applications. No matter as a part of rail fastening system or as a rail fastener, elastic rail clip is used with other railway track parts, such as railroad spike, rail pad, tie plate and plastic dowel.
What is E type rail elastic clip
E rail clip provide positive and durable rail alignment under the harshest working conditions, which extend the life of railway track. Generally, e rail clips are available at the range from 18mm to 23mm diameter. Rail –e clip is usually made of spring steel. As an important type of elastic rail clips, E-rail clip has a lot of sizes, such as E1, E2, E3, E1609, E1809, E1817, E2001, E2006, E2009, E2055, E2056, etc.
Types and Specification of E Clip Fasteners
Specification of E Clip Fasteners
| Item | E Clip Fasteners | |||
| Chemical Composition | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| C:0.56-0.64, Mn:060-0.90, Si:1.50-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80, Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00, Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 | |
| Hardness | 44-48 HRC | |||
| Fatigue Life | 3-5 million cycles without breaking | |||
| Surface | Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating, Color Painting | |||
| Standard | UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements | |||
| Package | Moven Bag, Pallet | |||
| Delivery | Depends on order | |||
Types of E Clip Fasteners
| Model | Diameter | Material | Under Pressure | HRC | Weight |
| E1609 | Ø 16mm | 60Si2MnA | ≥950kg | 44-48 | 0.43kg/pc |
| E1809 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.61kg/pc |
| E1813 | Ø 18mm | 60Si2MnA | ≥950kg | 44-48 | 0.62kg/pc |
| E2001 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2009 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2039 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2007 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2055 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2056 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2063 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
Advantages of using E-type railway clips
The role of the E-clip fastener extends far beyond basic fastening. It is regarded as one of the most reliable solutions for maintaining track stability and structural integrity. By preventing unwanted rail movement, bending, or deformation, these clips play a vital role in ensuring the long-term reliability of railway systems.
At GNEE RAIL, our E-clip fasteners are engineered to withstand heavy train loads and diverse environmental conditions. Manufactured from high-quality spring steels such as 38Si7, they offer superior strength, durability, and resistance to fatigue. With precision design and strict quality control, GNEE RAIL ensures that each E-clip provides outstanding performance, making it a trusted choice for global railway projects.
GNEE RAIL can provide various types of rail clips, including the rail e-clip, Nabla rail clip, SKL rail clips, Deenik clip, crane rail clip, Russia rail clip, and a multitude of other standard rail clips, each tailored to meet a distinct set of needs.We also provide various types of railway fasteners, including fish plates, fish bolts, dog spikes, screw spikes, rail pads, railroad tie plates, rail anchors, rail gauge rods, etc. Click here to contact us and obtain the GNEE RAIL product catalog.
