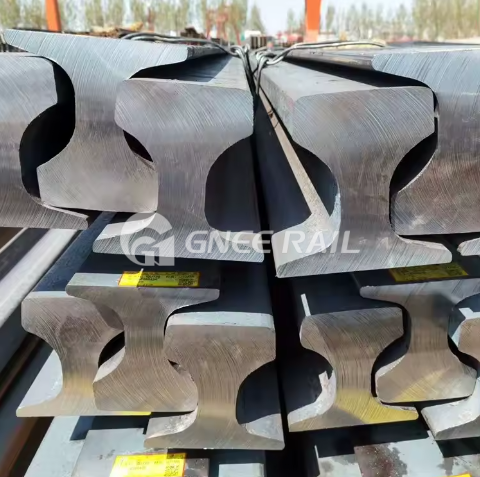

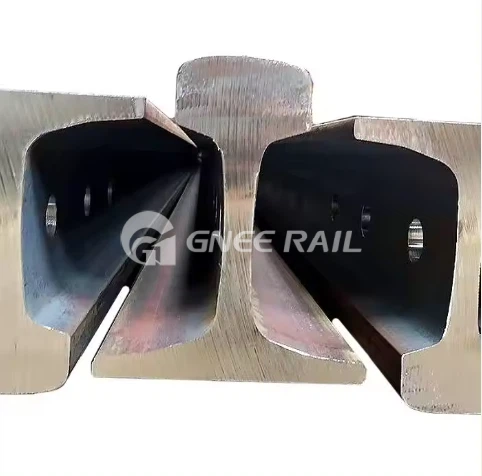

DIN536 Rail
DIN 536 rail is a type of steel rail specified by the German Institute for Standardization (Deutsches Institut für Normung, DIN). It is widely used in railway infrastructure in Germany and other countries that adhere to DIN standards. The DIN 536 rail is commonly utilized in various railway applications, including mainline tracks, branch lines, industrial tracks, and tramways. It is designed to support different loads and volumes of rail traffic, depending on its specific classification within the DIN 536 standard.
DIN536 Specifications
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length (m) |
| A45 | 45 | 55 | 125 | 24 | 22.1 | 700/900A/1100 | 10-12 |
| A55 | 55 | 65 | 150 | 31 | 31.8 | 700/900A/1100 | 10-12 |
| A65 | 65 | 75 | 175 | 38 | 43.1 | 700/900A/1100 | 10-12 |
| A75 | 75 | 85 | 200 | 45 | 56.2 | 700/900A/1100 | 10-12 |
| A100 | 100 | 95 | 200 | 60 | 74.3 | 700/900A/1100 | 10-12 |
| A120 | 120 | 105 | 220 | 72 | 100 | 700/900A/1100 | 10-12 |
| A150 | 150 | 150 | 220 | 80 | 150.3 | 700/900A/1100 | 10-12 |
DIN536 Crane Rail Drawing
