GNEE RAILWAY RAILWAY Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of 40lb. asce rail in China, also supports customized service with low price. Please feel free to buy cheap 40lb. asce rail made in China here from our factory.

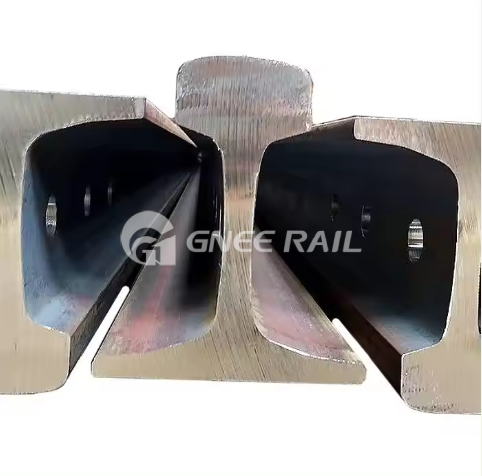

40LB. ASCE Rail
The 40LB ASCE Rail is a standard type of railway track defined by the American Society of Civil Engineers (ASCE). The "40LB" designation indicates that the rail weighs 40 pounds per yard.
GNEE RAILWAY Rail specializes in manufacturing various types of railway tracks, including the 40LB ASCE Rail. We also produce other ASCE rails ranging from 20 to 85LB with high quality. Feel free to contact us for inquiries.
Drawing
| Profiles | Weight | Head width | Height | Base width | Web | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| kg/m | lb/yd | mm | in | mm | in | mm | in | mm | in | |
| ASCE40 | 19.84 | 40.00 | 47.62 | 1 7/8 | 88.90 | 3 1/2 | 88.90 | 3 1/2 | 9.92 | 25/64 |
Mechanical properties
| Profiles - Grades available | ≥ 155 HB | ≥ 201 HB | ≥ 260 HB | ≥ 285 HB | ≥ 321 HB |
|---|---|---|---|---|---|
| ASCE20 | √ | ||||
| ASCE25, ASCE30, ASCE40, ASCE45, ASCE50 | √ |
Steel Rails Supplier
