Product Introduction
The railway fastener system is a collection of key parts used to connect rails and sleepers (or other sub-rail foundations) in railway tracks, also known as intermediate connecting parts. Its core function is to firmly fix the rails on the sleepers, maintain accurate track gauges, and effectively prevent the rails from moving vertically and horizontally relative to the sleepers.
Common categories include SKL series spring clip fastener systems, KPO type gusset fastener systems, Nabla spring rail fastener systems, and WJ-8 type spring clip fastener systems. The SKL series, such as the SKL12 type, mostly uses 60Si2CrA spring steel to make spring clips. With excellent elasticity and high strength, it has strong buckling pressure and is often used in heavy-duty railways. It can stably withstand repeated rolling by 10,000-ton trains. The KPO type gusset fastener system consists of gussets, threaded spikes, spring washers, etc. It has a simple structure and is easy to install and disassemble. It is more commonly used in the maintenance and renovation of some existing railways. The shrapnel of the Nabla shrapnel rail fastener system is thin and light, occupies little space, and has outstanding noise reduction performance. It is widely used in urban rail transit and can effectively reduce the impact of train running noise on the surrounding environment.

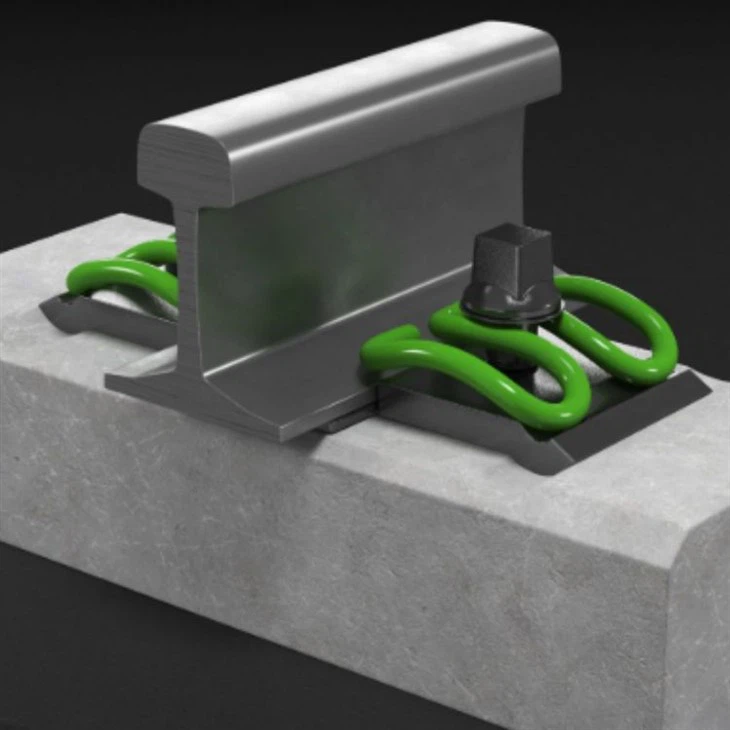

Type WJ-8 Rail Fastening System is specially designed for high-speed railway ballastless track. It uses a combination of spring clip IV type fastener and insulating gauge block. The spring clip is made of high-strength spring steel to provide stable buckling pressure. The insulating gauge block is made of modified nylon 66 material with excellent insulation performance and a resistance value of more than 10^8Ω. It is widely used in my country's high-speed rail network to ensure the safe and stable operation of electrified railways.
Product Specifications
Specifications for ONE unit of WJ-8 Rail Fastening system
| Item | Quantity | Material |
| Rail clip | 2 | 60Si2MnA |
| Screw spike | 2 | 20MnTiB |
| Flat washer | 2 | Q235A |
| Rail Insulator | 2 | PA66 |
| Guide plate | 2 | Reinforced Nylon 66 (PA66) |
| Rail pad | 1 | EVA, or rubber |
| Tie plate | 1 | QT450-10 |
| Plastic dowel | 2 | HDPE, Reinforced Nylon 66 (PA66) |
| Rail Adjustable Pad | 2 | PE |
| Tie Plate adjustable pad | 2 | PE |
Technical features
Good structural stability: Adopting elastic non-separated structure with iron pad, concrete sleeper or track plate bearing rail groove is equipped with shoulder, the lateral load from the rail is transmitted to the concrete shoulder through the iron pad and gauge baffle, which reduces the position of the lateral load and makes the structure more stable.
Excellent insulation performance: Insulation blocks are set between the shoulder and the rail on the iron pad, and gauge baffles are set between the iron pad and the concrete shoulder. Both are made of engineering plastics, which can effectively improve the insulation performance of the fastener system, prevent current leakage, and ensure the normal operation of the track circuit.
High elasticity and long life: Elastic cushion layer is set under the iron pad, which is made of long-life thermoplastic elastomer material, has good elasticity, can effectively buffer train loads, reduce fatigue damage of components, and extend the service life of the fastener system.
Multiple spring clip options: W1 spring clips with conventional buckling pressure and X2 spring clips with small buckling pressure can be installed, which can meet the requirements of longitudinal resistance of seamless lines in different sections such as roadbed, tunnels, bridges, etc.
Precautions for use
Passenger dedicated line: Applicable to passenger dedicated lines with an axle weight of 170KN (considering that the axle weight may increase by 10%) and a maximum speed of 350km/h, it can provide stable and reliable track support for high-speed trains.
Ballastless track transition section: For example, the transition section between the ballastless track and the ballasted track of the Beijing-Tianjin Intercity Railway uses WJ-8 type fasteners, which have been tested in actual operation and are in good condition in terms of installation gauge.
Product Packaging & Delivery
The WJ-8 Rail Fasteners System is packed in a flexible knitted mesh bag, with a waterproof Oxford cloth lining sewn at the bottom of the mesh bag to prevent puncture from sharp parts. The mesh bag filled with fasteners is tied and placed in a PP plastic storage box with handles. Anti-static flannel is laid in the box, and different mesh bags are separated by pull-out transparent plastic partitions. The box cover is locked with a rotating buckle for easy inventory and transportation.
GNEE RAIL is a professional exporter of railway fastener systems with ISO 9001:2015 certification, focusing on providing high-quality connection solutions for global railway construction projects. Our product line covers special fastener systems for high-speed railways, heavy-duty railways and urban rail transit, including various types of spring clips, insulated gauge blocks, anti-loosening bolts and more than 2,000 specifications of products. We have established a strict supplier evaluation system to ensure full quality control from raw materials to finished products.
