Rail tie plate is also called rail base plate or sole plate, it is a main component in railroad construction of a crane rail or track support system.GNEE RAIL is capable of producing rail tie plates by either casting(welded or fabricated type) or forging or rolling, applicable of different rail sections, for wooden, steel or concrete sleepers, depending on the load and rail standard, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.
Rail Tie Plate Specifications
| Appications | Apply for rail UIC54, UIC60, 50kg rail, 60kg rail, S49 and size as ordered | |||
| Raw Material | QT500-7 (Casting iron) | QT450-10 (Casting iron) | Low Carbon Steel | High Carbon Steel |
| Chemical Compostition (%) | C:3.60-3.80, Mn:≤0.6, | C:3.40-3.90, Mn:0.2-0.5, | ||
| Si:2.50-2.90, P:≤0.08, S:≤0.025 | Si:2.70-3.00, P:≤0.07, S:≤0.03 | |||
| Production Engineering | Forging ,Casting ,Rolling | |||
| Surface Treatment | Plain ,Sandblasting | |||
| Standard Reference | AREMA ,GB,JIS E1110, UIC864-6, | |||

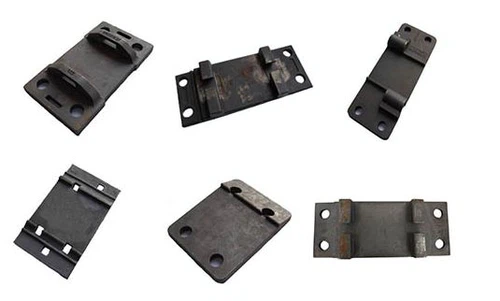

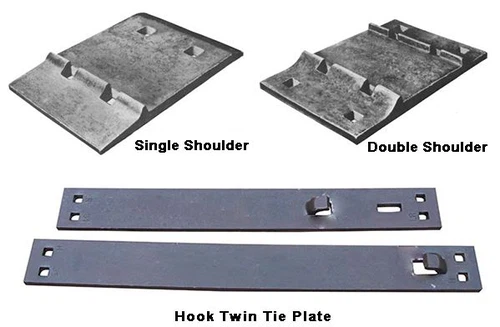

Types of Rail Tie Plate
| Product Name | Type | Process | Material |
| Tie plate | Single Shoulder | Rolled,Forging,Casting | QT450-10,20#,35#,etc |
| Double Shoulder | |||
| Hook Twin Tie Plates | |||
| Direct Fixation Tie Plates | |||
| Other kinds of baseplate are also available according to your drawings or samples! | |||
AREMA standard tie plate
| Model | Application | Material | Unit Weight |
| 115RE Tie plate | AREMA 115RE rail | Q235 or | 10.6kg/pc |
| QT400-15 | |||
| 132/136RE | AREMA 132RE rail | Q235 or | 11-12kg/p |
| Tie plate | AREMA 136RE rail | QT400-15 | |
| 115D Tie plate | AREMA 115D rail | Q235 or | 28.8kg/pc |
| QT400-15 | |||
| 100-8B Tie plate | AREMA 100-8B rail | Q235 or | 26kg/pc |
| QT400-15 | |||
| S49 Tie plate | S49 rail | QT450-10 | 7.57kg/pc |
| QT400-15 | |||
| Q235 |

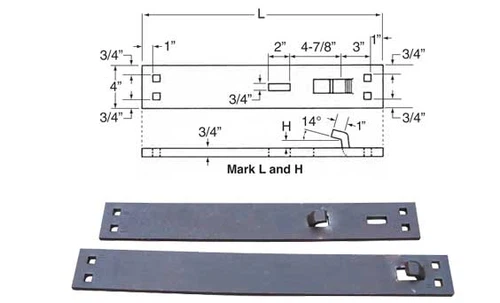

Hook Twin Tie Plates
Available varieties for 1'' thick hook twin tie plate: L29, L33, L37, LR28, LR32, LR36, H29, H33, H37, H41.
| AREMA 1''thick HTTPs | |
| Model | Unit Weight(KG) |
| L29 | 13.93 |
| L33 | 15.97 |
| L37 | 18.01 |
| LR28 | 13.42 |
| LR32 | 15.46 |
| LR36 | 17.5 |
| H29 | 14.12 |
| H33 | 16.16 |
| H37 | 18.2 |
| H41 | 20.24 |
Available varieties for 3/4'' thick hook twin tie plate: L23, L27, L31, LR23, LR27, LR31, H23, H27, H31.
| AREMA 3/4'' thick HTTPs | |
| Model | Unit Weight(KG) |
| L23 | 8.53 |
| L27 | 10.07 |
| L31 | 11.61 |
| LR23 | 8.53 |
| LR27 | 10.07 |
| LR31 | 11.61 |
| H23 | 8.66 |
| H27 | 10.21 |
| H31 | 11.75 |
| H35 | 13.29 |
