Rail fastening system is used for fastening the steel rail and railway sleeper. The function of rail fastening system is to maintain the gauge and prevent the vertical and horizontal movement of rails relative to the position of the sleeper. A fastening system is usually consist of rail tie plate, spike, clip, rail anchor or other fasteners.
The SKL clip rail fastening system is a system for fastening railway tracks. The core component of the SKL clip rail fastening system is a clamp called "SKL clip", which is elastic and can clamp the rail to ensure that the rail does not move or deform when the train is running.
According to the SKL clip rail fastener standard, GNEE RAIL can provide SKL3, SKL12 and SKL14 type fastening systems.

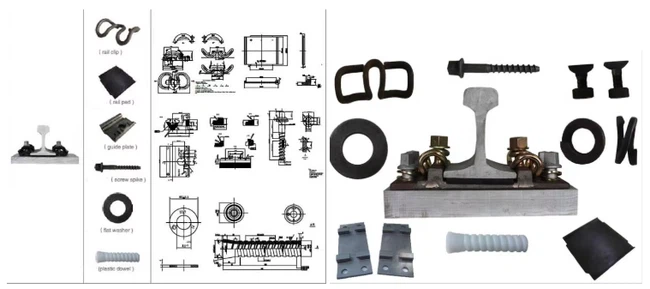

SKL12 Rail Fastening System Components
| Item | Quantity | Material | |
|---|---|---|---|
| SKL tension clip | 2 | 60Si2CrA, 60Si2CrA, 38Si7 | |
| Ss35 screw spike | 2 | Grade 4.6: Q235 | |
| Grade 8.8: 45# | |||
| Grade 5.6: 35# | |||
| Flat washer | 2 | Q235 | |
| Plastic dowel | 2 | HDPE, Reinforced Nylon 66 (PA66) | |
| Guide plate | 2 | Reinforced Nylon 66 (PA66) | |
| Rail pad | 1 | EVA, or rubber | |
GNEE RAIL can provide quality and safe rail fastening system for different rail track. We can offer Clip Type Fastening System, SKL Rail Fastening System, KPO Rail Fastening System, Spring Blade Fastening whether for high speed rail track, normal rail or subway etc.
We also offers different kinds of railway fasteners to meet client's requirements, such as Elastic Rail Clip and Clamp, Rail Screw Spike, Plastic Dowel, High Tensile Track Bolt with Nut, Rail Base(Tie) Plate, Rail Fish Plate, Railway Shoulder(Insert), Fish Bolt, Railroad Rubber and EVA Pad, etc. Samples and drawings provided by customer, we will manufacture qualified products accordingly.
