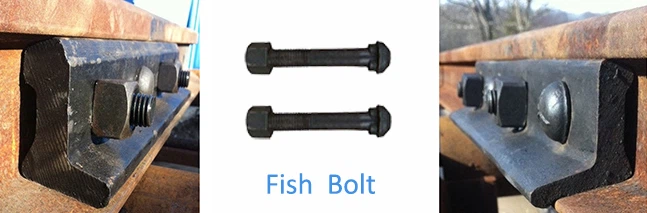

Railway fish plate, also called rail joint or splice bar, is a metal bar connected to the ends of two railroad rails to join them together. By experience, high quality railway fish plates can effectively reduce the influence of wheels to the jointing sections of the steel rail and increase the steadiness and continuity of the train when passing through the jointing sections. As an important part of rail components, railway fish plates are widely used both in light rail and heavy rail to guarantee the safety of railroad transportation.
Insulated Rail Joint in Railway Track System
Insulated Rail Joints (IRJs) are railway track components where impact and high dynamic wheel-rail contact forces occur due to the rail discontinuity. The frequent high impacts reduce up to five times the service life of Insulated Rail Joints with respect to continuously welded rails.
Hot sale Common Rail Joint Bars from GNEE RAIL
| No. | Type | Material | Unit weight (kg/pc) | Standard |
| 1 | 136RE 36'' | 55# | 26.72 | AREMA |
| 2 | 115RE 36'' | 24.5 | ||
| 3 | 136RE 24'' | 22.3 | ||
| 4 | 115RE 24'' | 20.4 | ||
| 5 | 100-8 36'' | 15.6 | ||
| 6 | BS80O | 55# | 10.2 | BS |
| 7 | BS80R | 10.2 | ||
| 8 | BS75A | 8.86 | ||
| 9 | BS90A | 13.1 | ||
| 10 | BS100A | 15 | ||
| 11 | UIC50 | 55# | 18 | UIC |
| 12 | UIC54 | 22.8 | ||
| 13 | UIC60 | 27.4 | ||
| 14 | P65 | 55# | 29.7 | GOST |
| 15 | Insulated 60 | 23.2 |
Click here to obtain the detailed product catalog of GNEE RAIL.
COMPROMISE JOINT BARS AVAILABLE AT GNEE RAIL
| No. | Type | Material | Unit weight(kg/pc) | Remark |
| 1 | 136RE-115RE | 55# | 27.5 | 4pcs per set |
| 2 | 136RE-132RE | 55# | 26.7 | 2pcs per set |
| 3 | 141RE-136RE | 55# | 26.7 | 2pcs per set |
| 4 | 141RE-132RE | 55# | 26.7 | 2pcs per set |
| 5 | 100-8 of 1/8〞vertical off | 55# | 15.6 | 2pcs per set |
| 6 | 100-8 of 3/8〞vertical off | 55# | 15.6 | 2pcs per set |
| 7 | UIC60-P50 | 55# | 23 | 2pcs per set |
| 8 | BS80A-115RE | 55# | 20 | 2pcs per set |
| 9 | UIC60 thermit welded joint | 55# | 18 | 2pcs per set |
| Material and bar length can be customized upon buyer request. | ||||
Send your special customization requirements to GNEE.
