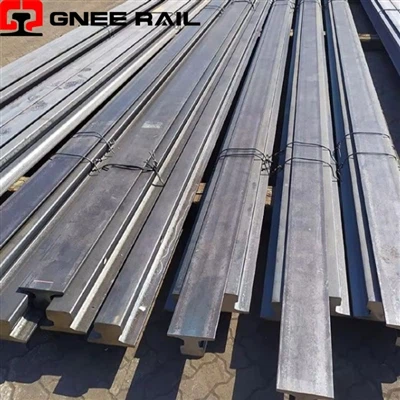

What is the standard length of a DIN536 A65 Crane Rail Profile?
The standard length for a DIN 536 A65 crane rail profile is typically 12 meters, though 10-meter and 15-meter lengths are also widely recognized industry standards. While 12 meters is the most common specification due to its compatibility with standard 40ft shipping containers, the actual A65 rail length can be customized to meet specific project requirements, ranging from 6 to 18 meters.
To understand why length selection is critical for industrial runways, the following points detail the technical considerations:
- Joint Reduction: Utilizing standard 12m or 15m A65 profile rail segments minimizes the total number of joints in the runway. Fewer joints result in a smoother surface, which significantly reduces vibration and wear on the crane's wheels and electronic sensors.
- Logistics Optimization: The 12-meter A65 Steel Rail is the global preference for export because it fits perfectly into international shipping containers, reducing transport costs to overseas markets.
- Thermal Expansion Management: Longer continuous sections of A65 Steel Crane Rail require precise calculations for expansion gaps. In outdoor A65 runway sections, the cumulative thermal movement of the steel must be managed through specialized Rail Clamps and gap settings.
- Custom Machining: Beyond standard lengths, rails can be factory-cut to exact A65 Rail Specifications, including mitered ends for specialized joints or pre-drilled holes for fishplate connections, ensuring a ready-to-install solution.
Why Choose Standardized A65 Rail Lengths?
Choosing standardized A65 rail lengths (typically 12 meters, or custom lengths tailored to DIN 536 standards) provides significant advantages in heavy-duty applications by ensuring structural integrity, reducing installation time, and lowering long-term maintenance costs. The A65 rail, with a 65mm head width and a 175mm bottom width, is a widely used German-standard (DIN 536) rail, making it ideal for cranes, industrial transport, and mining.
| Category | Key Advantages | Technical Impact & Value |
| Structural Stability | Optimal Squat Profile | Features a 75mm height and 175mm base, ensuring a low center of gravity to resist side-thrust forces. |
| Heavy Load Support | Specifically designed to support 40–80 tonne class cranes and manage wheel loads up to 250+ tons. | |
| Rigid Web Design | The 38mm thick web provides superior resistance against buckling and vertical deformation. | |
| Material Performance | High-Strength Steel | Typically manufactured from U71Mn (900A) or 50Mn (700) for maximum durability. |
| Superior Hardness | Head hardness of 260–300 HB prevents "mushrooming" and plastic deformation under high-duty cycles. | |
| Extended Fatigue Life | Engineered for 24/7 operations with a fatigue life often exceeding 500,000 cycles. | |
| Installation & Maintenance | Global Standard Compliance | Fully compliant with DIN 536-1:1991, ensuring seamless integration with standard clips like M120 or 9116. |
| High Precision Travel | Straightness tolerance of ±0.8mm/m minimizes noise and ensures smooth, precise crane positioning. | |
| Cost Efficiency | Standardized 12m lengths and durable materials reduce the frequency of replacements and long-term maintenance costs. | |
| Space Efficiency | Compact Geometry | The low 75mm profile is ideal for facilities with limited overhead clearance without sacrificing capacity. |
What are the specific dimensions of an A65 steel rail profile?
The A65 steel rail, commonly used for industrial crane runways and manufactured according to the DIN 536 P1:1991 standard, features the following specific dimensions and properties:
- Head Width: 65 mm
- Total Height: 75 mm
- Base Width: 175 mm
- Web Thickness: 38 mm
- Weight: 43.1 kg/m
| Profile | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | |||
| A65 | DIN 536 | 75 | 175 | 65 | 38 | 54,90 | 43,10 | |
