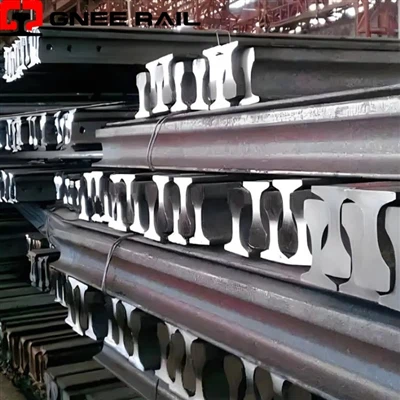

What are the performance advantages of DIN 536 Standard A65 rail?
The performance advantages of DIN 536 Standard A65 rail include superior lateral stability, optimized load-bearing geometry, and high durability under intense industrial duty cycles. Due to its unique "A" type profile-which features a wide base (175 mm) and a low height (75 mm)-this rail offers a significantly lower center of gravity than standard railway tracks. This mechanical configuration is specifically engineered to resist the horizontal thrust and heavy vertical wheel loads typical of overhead bridge cranes, gantry systems, and automated warehouse machinery.
- Exceptional Lateral Stability: The wide-flange design of the A65 Steel Rail ensures that the track remains stable under the side-thrust forces generated by crane acceleration and braking.
- Uniform Load Distribution: With its expansive footprint, the A65 profile rail spreads vertical pressure across a larger surface area of the Steel Soleplates, preventing structural fatigue of the runway beams.
- High Wear Resistance: Typically manufactured as DIN536 900A A65 Crane Rail, the high carbon and manganese content provide a hard-wearing surface that resists plastic deformation and "mushrooming."
- Space-Efficient Profile: The squat height of the A65 profile (75mm) allows for maximum vertical clearance in workshops with limited headspace.
GNEE RAIL leverages professional-grade manufacturing processes to maximize these performance advantages, ensuring that every meter of our DIN 536 A-series crane rails meets the strict straightness and metallurgical tolerances of the European DIN 536 standard.
How Is Load Distribution Optimized in A65 Crane Rail Sections?
Load distribution in A65 crane rail sections is optimized through a combination of engineered geometry (defined by DIN 536 P1:1991), high-strength material composition, and specialized installation techniques that manage both vertical and lateral forces. The A65 rail, weighing 43.1kg/m, is specifically designed for medium-to-heavy duty crane systems, providing a stable 65 mm wide head and a wide 175 mm base to distribute wheel pressure efficiently.
| Category | Optimization Feature | Functional Impact & Benefits |
| Engineered Geometry | 65 mm Head Width | Provides a large surface area to lower contact pressure and decrease surface wear. |
| 38 mm Thickened Web | Ensures high resistance to vertical loads and shear stresses during heavy braking. | |
| 175 mm Broad Base | Enhances stability and distributes load to the support structure to reduce localized stress. | |
| 75 mm Height | Increases vertical bending strength to minimize deflection under heavy loads. | |
| Material Strength | U71Mn High-Carbon Steel | Offers superior hardness and wear resistance in high-friction industrial environments. |
| Mounting System | Elastomeric Rail Pads | Absorbs vibration and distributes dynamic loads evenly to the supporting beam. |
| Steel Soleplates | Provides a larger bearing surface to transfer loads to concrete or steel structures. | |
| Adjustable Fastening | Maintains alignment and gauge under dynamic loads via horizontal adjustment. | |
| Performance Factors | Support Rigidity | Load sharing is determined by the stiffness of the underlying steel or concrete beam. |
| Fastener Spacing | Directly affects the vertical deflection of the rail during operation. | |
| Continuous Beam Action | Spreads wheel loads over multiple supports rather than a single point. |
Specifications of A65 Rail
The A65 rail is a heavy-duty crane rail manufactured to the DIN 536 P1:1991 standard, designed for overhead cranes and gantry applications. Key specifications include a weight of 43.1kg/m, a profile height of 75mm, a base width of 175mm, and a top head width of 65mm. They are generally made from high-strength U71Mn steel for superior wear resistance.
| Parameter | Value | Tolerance |
|---|---|---|
| Rail height (H) | 75 mm | ±1 mm |
| Base width (B) | 175 mm | ±2 mm |
| Head width (C) | 65 mm | ±1 mm |
| Web thickness (E) | 38 mm | – |
| Cross-sectional area | 54.90 cm² | – |
| Mass per metre | 43.10 kg/m | – |
| Standard length | 12 m | – |
| Custom length range | 5–25 m | By request |
FAQ
- Why is A65 better than standard railway rail for cranes?
Standard railway rails are tall and narrow, making them unstable under the side-thrust forces of a crane. The A65 profile rail is squat and wide, providing the lateral stability necessary for safe crane travel.
- How does A65 rail handle thermal expansion?
Like all steel products, A65 rail length will change with temperature. However, the use of adjustable Rail Clamps allows the rail to expand and contract longitudinally while maintaining its lateral alignment.
- What is the benefit of the "A" shape in DIN 536 A series rails?
The "A" shape (or Burbach Rail A65) provides a low center of gravity and a wide base, which are mechanical necessities for distributing the heavy, concentrated loads of gantry cranes.
- Does A65 rail require a specific material grade?
For heavy industrial use, the DIN536 900A A65 Crane Rail is recommended. Grade 900A offers superior hardness compared to the standard 700 grade, making it more resistant to surface wear.
- Can A65 rail reduce factory noise?
Yes. When installed with a high-quality rubber backing plate and secure Rail Clamps, the A65 rail standard significantly dampens vibration and noise during crane movement.
- What accessories are needed for peak A65 rail performance?
For optimal performance, the rail should be installed with Steel Soleplates, Rubber Pads, and adjustable Rail Clamps to ensure a level, stable, and quiet track system.
