1. The SKL-Type Elastic Fastening in the Product Family

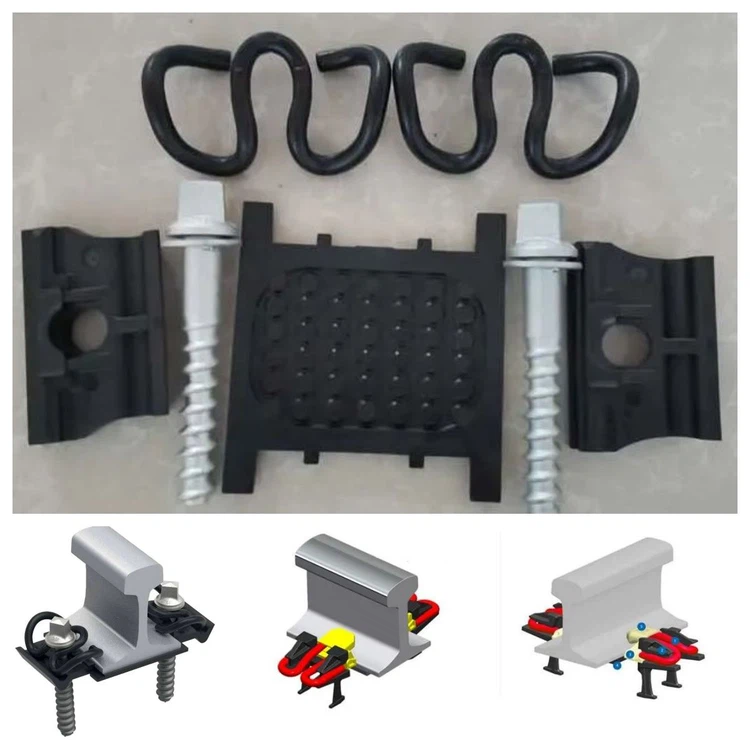

The SKL-type fastening system is a spring clip fastening family widely used on Chinese and export lines: the rail foot is clamped by a spring clip (SKL1, SKL3, SKL12, SKL15, SKL23 and similar) seated on a shoulder or base plate, with a gauge apron controlling lateral position and a rubber pad providing vertical elasticity between rail and sleeper. The comparison this article makes is with the traditional rigid fastenings: dog spikes driven through tie plates into sleepers, and screw spikes with or without spring washers, which hold the rail by friction and clamping alone without a designed elastic element.
The decisive difference is the toe load. A rigid fastening clamps the rail foot against the plate and relies on the screw or spike tension; when the rail lifts under a passing wheel, the clamping force momentarily drops, the rail moves, and impact follows. An elastic clip is pre-loaded to a defined toe load and deflects with the rail; it keeps a controlled force on the rail foot through the whole load cycle. This one property explains most of the practical advantages below.
2. Technical Comparison: Elastic vs Rigid Fastening
| Aspect | SKL-type elastic fastening | Rigid fastening (spikes/tie plates) |
|---|---|---|
| Toe load control | Defined toe load per clip type, verifiable by gauge | Depends on spike tension, decays with seating |
| Vertical elasticity | Rubber pad provides designed vertical stiffness | Little or none; rail sits hard on the plate |
| Gauge retention | Gauge apron locks lateral position; clip holds foot down | Friction only; gauge widening under lateral load |
| Shock absorption | Clip and pad absorb wheel impact | Impact passes into the sleeper and plate |
| Installation | Clip seated with tool; torque per specification | Spike driving, re-driving after seating losses |
| Maintenance | Toe load checks; clip replacement per batch | Spike re-driving and retightening; plate corrosion |
| Curved track behaviour | Lateral restraint from gauge apron and toe load | Rail roll tendency; gauge loss on outer rail |
| Component materials | 60Si2CrA clips, galvanized plates, rubber pads | Steel spikes and plates, galvanized or bare |
3. Material and Manufacturing Basis
The clip is manufactured from spring steel such as 60Si2CrA (per GB/T 1222), hardened and tempered to give the required toe load and fatigue life; the base plate, gauge apron and shoulder are steel sections, normally hot-dip galvanized per GB/T 13912 for corrosion protection. The rubber pad is specified by static stiffness, hardness and ozone resistance, and its footprint matches the rail foot and plate. Manufacturing tolerances are controlled so that the clip seats consistently and the toe load band is reproducible from batch to batch; the toe load is verified with a toe load gauge on the assembled system, not assumed from the steel grade.
This production discipline is what separates a serious elastic fastening from a loosely assembled one: the clip steel, the heat treatment, the plate dimensions and the pad stiffness all contribute to the final toe load, and each must be certified. For procurement engineers, the acceptance documents are the material certificate (steel grade and heat number), the toe load test report, the pad stiffness certificate and the galvanizing thickness report.
4. Application Scenarios
Main lines and secondary lines: SKL-type fastenings replace or upgrade rigid fastenings where gauge retention and component life are the issue.
Curved sections: the gauge apron and clip toe load control rail roll, the main cause of gauge widening and derailment risk on curves.
Urban rail and metro: the elastic pad reduces vibration and noise transmitted to the structure, which matters in tunnels and near buildings.
Heavy-haul and mixed traffic: defined toe load keeps the rail foot seated under high axle loads and high lateral forces.
Slab track and bridge track: the elastic fastening is the standard interface on concrete slab where spikes cannot be used.
Retrofit projects: replacing rigid fastenings on existing sleepers requires checking the rail foot width, sleeper spacing and plate footprint before selecting the SKL variant.
5. Selection and Operating Points
Match the clip type and toe load to the rail section and the traffic: heavier traffic and steeper curves need higher toe load within the clip's rated window.
Verify the pad stiffness grade against the track type; do not substitute a stiffer pad to "improve" a section without re-checking the system.
Torque the fastening bolts with a calibrated wrench and re-check after the first weeks of traffic; clip seating settles and toe load must be restored.
Keep the toe load gauge and the correct clip seating tool at the depot; hammering clips into place damages the arm.
Check the galvanizing at coastal sites: damaged zinc layers must be repaired locally, and salt exposure shortens the inspection interval.
Order clips and pads by batch with certificates, and record installation dates for fatigue life and maintenance planning.
6. Common Misconceptions
"SKL-type fastenings are the same as spike fastenings with a different look." False. The elastic clip provides a defined, maintained toe load and vertical elasticity that a spike cannot deliver; the difference shows in gauge retention and component life.
"A stiffer pad makes a stronger fastening." Not necessarily. Pad stiffness must match the track type; an over-stiff pad raises dynamic forces and accelerates rail head and sleeper damage.
"The clip alone is the system." False. The fastening is a system: clip, gauge apron, shoulder, pad and plate work together. Changing one component without re-verifying the assembly changes the toe load.
"Any spring steel can make an SKL clip." False. The clip must be made from a spring steel grade such as 60Si2CrA with the correct heat treatment and hardness band; substitutes change the fatigue life.
"Once installed, an elastic fastening needs no maintenance." False. Toe load checks, torque re-checks, galvanizing inspection and pad condition checks are part of the maintenance regime; the advantage is a longer, more predictable interval, not zero maintenance.
FAQ
Q1: What are the components of an SKL-type fastening system?

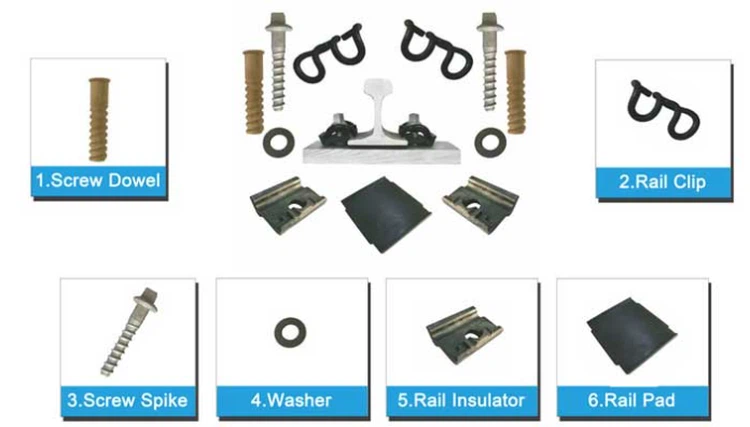

The main components are the spring clip, gauge apron, shoulder (or base plate with shoulder), rubber rail pad, and the fastening bolts with nuts and washers. Each component has a defined role in toe load, lateral restraint and vertical elasticity.
Q2: What is the main advantage over spike and tie plate fastenings?
The controlled toe load from the elastic clip: the rail foot is held with a defined, stable force that absorbs shock and retains gauge, while a rigid spike fastening relies on friction and loses force as seating and corrosion develop.
Q3: Which materials are used for SKL-type components?
Clips are spring steel such as 60Si2CrA per GB/T 1222, hardened and tempered; plates and shoulders are galvanized steel per GB/T 13912; pads are rubber or elastomer specified by stiffness and ozone resistance.
Q4: Can SKL-type fastenings be used on slab track?
Yes. Elastic fastenings are the standard interface on concrete slab track, where spikes cannot be used; the base plate is bolted to the slab and the clip and pad provide the elastic interface.
Q5: How is toe load verified in the field?
With a toe load gauge applied at the standard point on the clip arm with the rail correctly seated; the measured value is compared with the batch certificate, and clips outside the band are replaced.
Q6: Are SKL-type systems suitable for heavy-haul lines?
Yes, when selected correctly: a clip variant with the appropriate toe load, matched pad stiffness and heavy-duty galvanizing is required; the system must be validated for the axle load and tonnage of the line.
