JIS Standard JIS 22KG Rail



Steel rails are also commonly referred to as railway rails, track rails, or simply rails. Rails work in conjunction with other track components, such as sleepers, fishplates, and fastenings, to create a continuous and stable track structure that supports efficient rail transport. JIS Standard Rails are steel rails manufactured in compliance with the Japanese Industrial Standards (JIS), particularly under the JIS E series. The JIS 22KG Rail is a type of steel rail manufactured according to the Japanese Industrial Standards (JIS). With a weight of 22.30 kg per meter.

GNEE Rail is a reliable supplier of JIS steel rails, featuring a broad assortment including JIS 9kg, JIS 15kg, JIS 22kg, JIS 30kg, JIS 37kg, and other models. Beyond rail production, we provide a comprehensive range of railway accessories, including fishplates, rail spikes, bolts, and more. We are committed to offering products that conform to international quality standards. Additionally, we offer tailored solutions to fit your specific requirements, whether you need standard sizes or customized options. Our team is ready to assist with any questions or special needs you might have. Contact us to learn more or to discuss your specific requirements.



JIS Standard JIS 22KG Rail specification



Model: JIS Standard JIS 22KG Rail

Brand: GNEE rail

Material: Q235B

Rail height (mm): 93.66
Bottom Width (mm): 93.66

Size: JIS 15KG, JIS 22KG, JIS 30KG, JIS 37KG, etc

Length: 9-10m, 10-12m, 12-25m, or custom lengths as required

Standard: JIS E1103-91/JISE 1101-93 standard



JIS Standard JIS 22KG Rail dimension



Size: 22kg
Rail height (mm): 93.66
Bottom Width (mm): 93.66
Head Width (mm): 50.80
Web Thickness (mm): 10.72
Weight (kg/m): 22.30

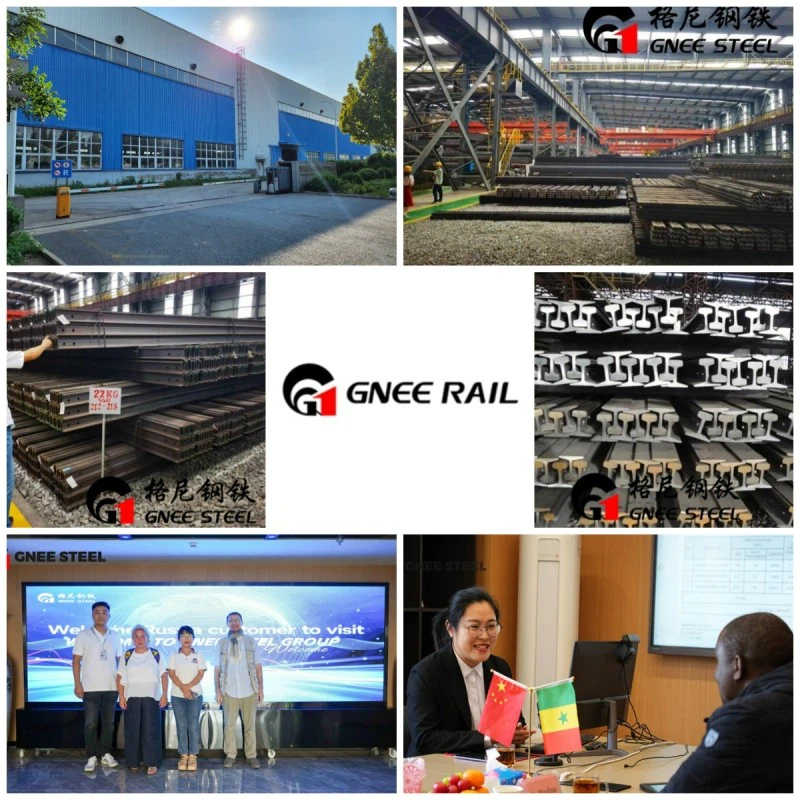

JIS Standard JIS 22KG Rail workshop
