Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of gb heavy rail steel railway in China, also supports customized service with low price. Please feel free to buy cheap gb heavy rail steel railway made in China here from our factory.
Product Introduction & Application

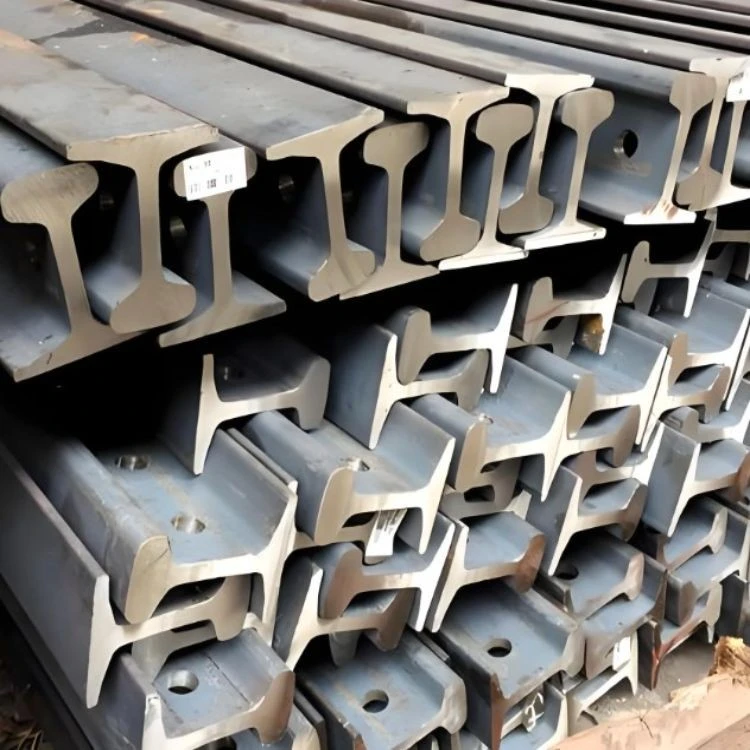

Heavy rail is an important component of railway track, with a weight of 38kg or more per meter, including 38kg/m, 43kg/m, 50kg/m, 60kg/m, 75kg/m and other types. It plays an important role in guiding the wheels of locomotives and vehicles, bearing the huge pressure of the wheels and transmitting it to the sleepers or rail beams, and also provides a continuous, smooth and least resistant rolling surface for the wheels. On electrified railways or automatic block sections and rail battery cars, rails can also be used as track circuits.
The main materials of rails are U71Mn, U75V, U78CrV, etc. Different grades have different chemical compositions and performance characteristics. For example, the carbon content in U71Mn is between 0.65% and 0.76%, and the manganese content is between 0.70% and 1.20%, with good strength and toughness.
Product Specifications
| Classification | Height(mm) | Head (mm) | Bottom (mm) | Thick(mm) | Weight (kg/m) | |
| Heavy Rail | 38 KG/M | 134 | 68 | 114 | 13 | 38.733 |
| 43 KG/M | 140 | 70 | 114 | 14.5 | 44.653 | |
| 45 KG/M | 145 | 67 | 126 | 14.5 | 45.546 | |
| 50 KG/M | 152 | 70 | 132 | 15.5 | 51.514 | |
| 60 KG/M | 176 | 73 | 150 | 16.5 | 60.64 | |
| Rail Type | SIZE(mm) | ||||||||
| Section height | Bottom width | Rail head width | |||||||
| Heavy rail | 75KG | 192mm | 150mm | 75mm | |||||
Product Application
Product Packaging & Delivery
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What are the shipping ports?
A:You can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001,EWC and other certifications.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
