Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of gb 8/9/12/15/18/22/24/30 kg railway light rail in China, also supports customized service with low price. Please feel free to buy cheap gb 8/9/12/15/18/22/24/30 kg railway light rail made in China here from our factory.
Product Introduction

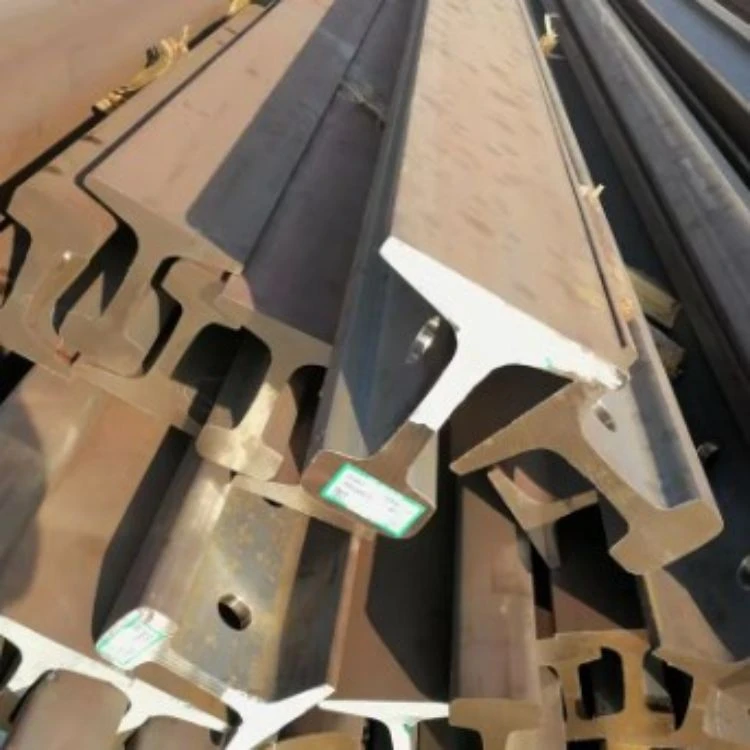

The length of light rail is usually 8 meters, 9 meters, 12 meters, etc. Most of the light rails are made of Q235 or 55Q materials, and their specifications include 30kg/m, 24kg/m, 22kg/m, etc. The national standard light rail (GB standard) is mainly used in urban rail transit systems. Common light rail rail types include 24kg/m, 30kg/m, etc. The specific choice depends on the design requirements and carrying capacity of the line. Light rail is mainly used in urban rail transit systems, such as subways, light rail trains, etc., and has the characteristics of large passenger capacity and fast running speed.
Products Description
| Rail Type | SIZE(mm) | ||||||||
| height | bottom width | head width | waist depth | ||||||
| Light rail | 8KG | 65 | 54 | 25 | 7 | ||||
| 9KG | 63.5 | 63.5 | 32.1 | 5.9 | |||||
| 12KG | 69.85 | 69.85 | 38.1 | 7.54 | |||||
| 15KG | 79.37 | 79.37 | 42.86 | 8.33 | |||||
| 18KG | 90 | 90 | 40 | 10 | |||||
| 22KG | 93.66 | 93.66 | 50.8 | 10.72 | |||||
| 24KG | 107 | 90 | 51 | 10.9 | |||||
| 30KG | 107.95 | 109.95 | 60.33 |
12.3
|
|||||
| Light rail | Model/Material | Q235,55Q | Specification | 30kg/m | |||||
| 24kg/m | |||||||||
| 22kg/m | |||||||||
| 18kg/m;15kg/m | |||||||||
| 12kg/m;8kg/m |
Product packaging & delivery
Company Introduction
GNEE Steel was established in 2008, with a management team of more than 200 people and a factory area of more than 35,000 square meters. The company's steel products are exported to more than 200 countries and regions around the world. Not only in product quality, but also in service in the field of world steel supply chain, it continuously meets the different needs of global customers and is determined to become the world's most internationally competitive steel supply chain company.
FAQ
Q: What is the shipping port?
A: You can choose other ports as needed.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary in different periods.
Q: What certifications do your products have?
A: We have ISO 9001, EWC and other certifications.
Q: How long does your delivery time take?
A: Usually, our delivery time is within 7-45 days, and it may be delayed if there are extreme or special circumstances.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: Is there any quality inspection of the products before loading?
A: Of course, all our products are strictly quality tested before packaging.
Hot Tags: gb 8/9/12/15/18/22/24/30 kg railway light rail, China gb 8/9/12/15/18/22/24/30 kg railway light rail manufacturers, suppliers, factory, Wear pressure resistant rail, U71Mn Railway, Long Life Heavy Rail, QU70, QU70 Workshop rail, GB QU rail
