Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of european standard din5901 s14 rail in China, also supports customized service with low price. Please feel free to buy cheap european standard din5901 s14 rail made in China here from our factory.

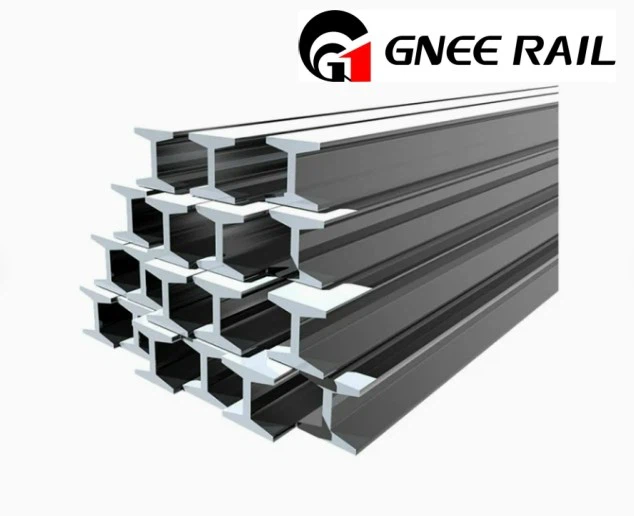

European Standard DIN5901 S14 Rail
DIN 5901 S14 Rail is a lightweight steel rail designed in accordance with European standards, weighing 14 kg/m. It is primarily used in various applications such as plants, ports, and railways. GNEE Rail is a trusted and professional supplier of steel rails, offering a comprehensive range of products, including S14 light rail, S18 light rail, S20 rail, S24 light rail, and S30 light rail, among others. We manufacture rails that adhere to a variety of international standards, including BS, AS, JIS, EN, and AREMA. With our advanced equipment and innovative technology, we are committed to delivering high-quality production. Our aim is to provide exceptional results in rail manufacturing. If you have any inquiries or specific needs, please feel free to contact us.
European Standard DIN5901 S14 Rail specification
Type: Light Rail
Brand: GNEE rail
Size: S14, S18, S20, S30
Material: 55Q, Q235B
Weight: 14kg/m
Length: 6-12m or custom lengths as request
Standard: DIN5901:1955-11
European Standard DIN5901 S14 Rail dimension
| Product Name | DIN Standard Rail | ||||||
| Standard | DIN5901:1955-11 | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| S14 | 38 | 80 | 70 | 9 | 14 | 55Q | 6-12 |

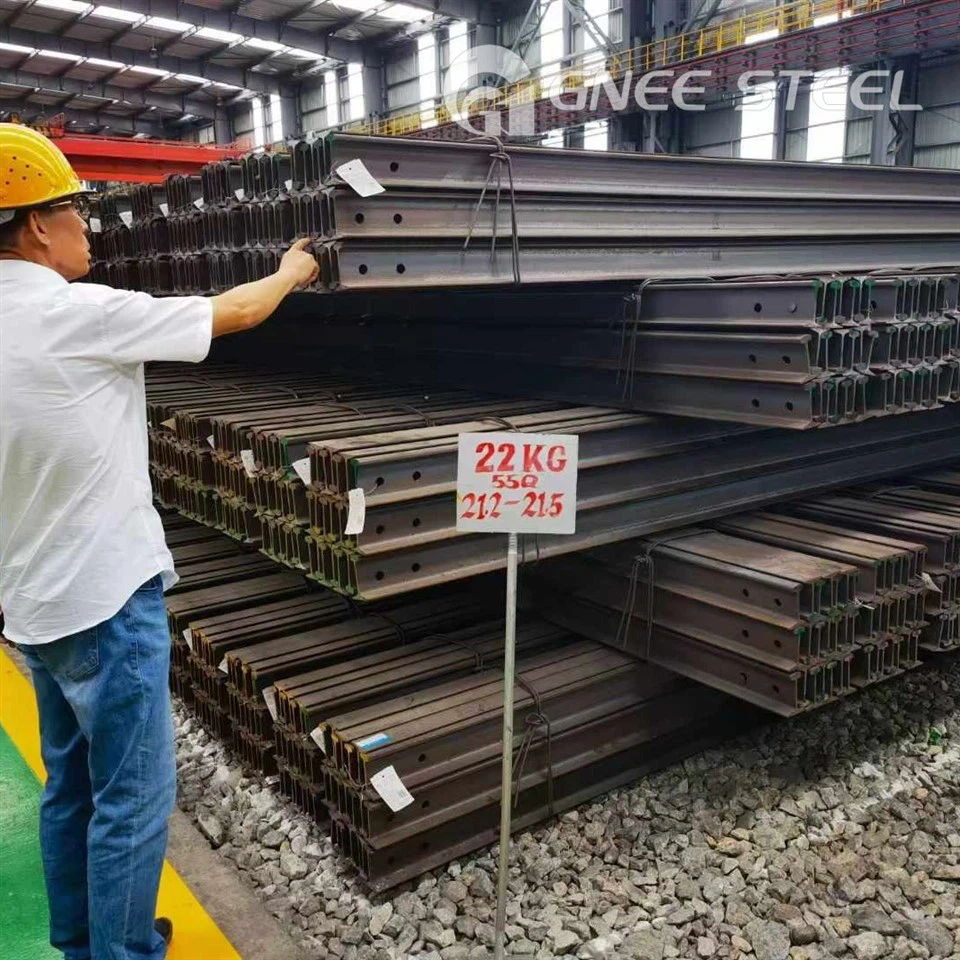

GNEE steel rail workshop
