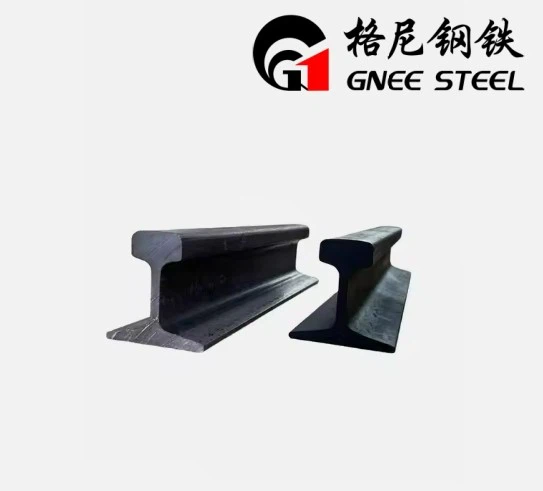

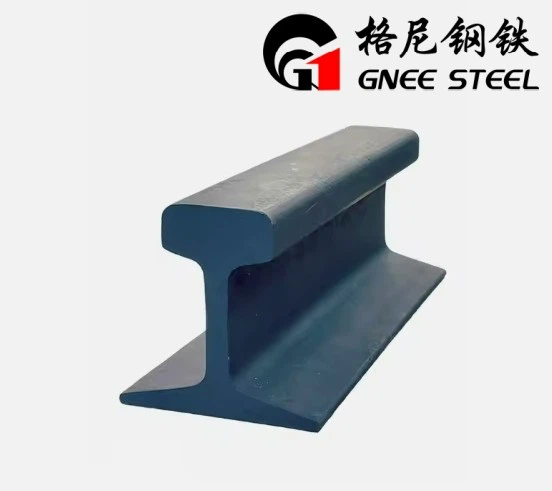

EN Standard 50E5 Rail
Steel rails, often referred to as railway tracks or train rails, are essential elements of rail systems, designed to support the weight of trains and facilitate smooth movement. Constructed from high-strength steel, these rails offer outstanding durability, resistance to wear, and the ability to support heavy loads. The EN Standard 50E5 Rail complies with EN 13674-1 specifications and weighs 49.90 kg per meter. At GNEE Rail, we provide a wide range of steel rail options, including light, heavy, and crane rails, as well as other standards like the EN 50E2. If you have any inquiries or require assistance, please don't hesitate to contact us.
EN Standard 50E5 Rail specification
Size: 50E5 steel rail
Length: 5m~25m or other length according to customers' requirement
Material: R200, R260, R260MN, R350HT
Standard: EN 13674 – 4
EN Standard 50E5 Rail dimension
| Size | Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m) |
| 50E1 | 153.00 | 134.00 | 65.00 | 15.50 | 50.37 |
| 50E2(50EB-T) | 151.00 | 140.00 | 72.00 | 15.00 | 49.97 |
| 50E4 | 152.00 | 125.00 | 70.00 | 15.00 | 50.46 |
| 50E5 | 148.00 | 135.00 | 67.00 | 14.00 | 49.90 |
