Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of din standard a150 rail in China, also supports customized service with low price. Please feel free to buy cheap din standard a150 rail made in China here from our factory.
DIN Standard A150 Rail
The DIN Standard A150 Rail is a high-capacity rail designed according to the guidelines set by the German Institute for Standardization (DIN). This rail is primarily used in overhead and floor-mounted cranes, making it ideal for heavy-duty applications in environments such as ports, warehouses, and manufacturing facilities. With a weight of 150.3kg per meter. GNEE rail can supply a substantial stock of DIN Standard Crane Rails, featuring sizes A45, A55, A65, A75, A100, A120, and A150, all available for immediate sale. If you are looking for other types of railroad rails for sale, our expert teams are here to assist you. Don't hesitate to reach out to us anytime!
DIN Standard A150 Rail specification
Type: DIN Standard A150 Rail
Size: DIN A45, A55, A65, A75, A100, A120, A150, etc
Material: ASSZ-1/U75V/U71Mn/1100/900A/700
Weight: 150.3 kg/m
Length: 10-12m
Standard: DIN536-1-1991
DIN Standard A150 Rail dimension
| Size | Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness(mm) | Weight(Kg/m) | Material | Length(m) |
| A55 | 55 | 150 | 65 | 31 | 31.8 | 700/900A/1100 | 10-12 |
| A65 | 65 | 175 | 75 | 38 | 43.1 | 700/900A/1100 | 10-12 |
| A75 | 75 | 200 | 85 | 45 | 56.2 | 700/900A/1100 | 10-12 |
| A100 | 100 | 200 | 95 | 60 | 74.3 | 700/900A/1100 | 10-12 |
| A120 | 120 | 220 | 105 | 72 | 100 | 700/900A/1100 | 10-12 |
| A150 | 150 | 220 | 150 | 80 | 150.3 | 700/900A/1100 | 10-12 |

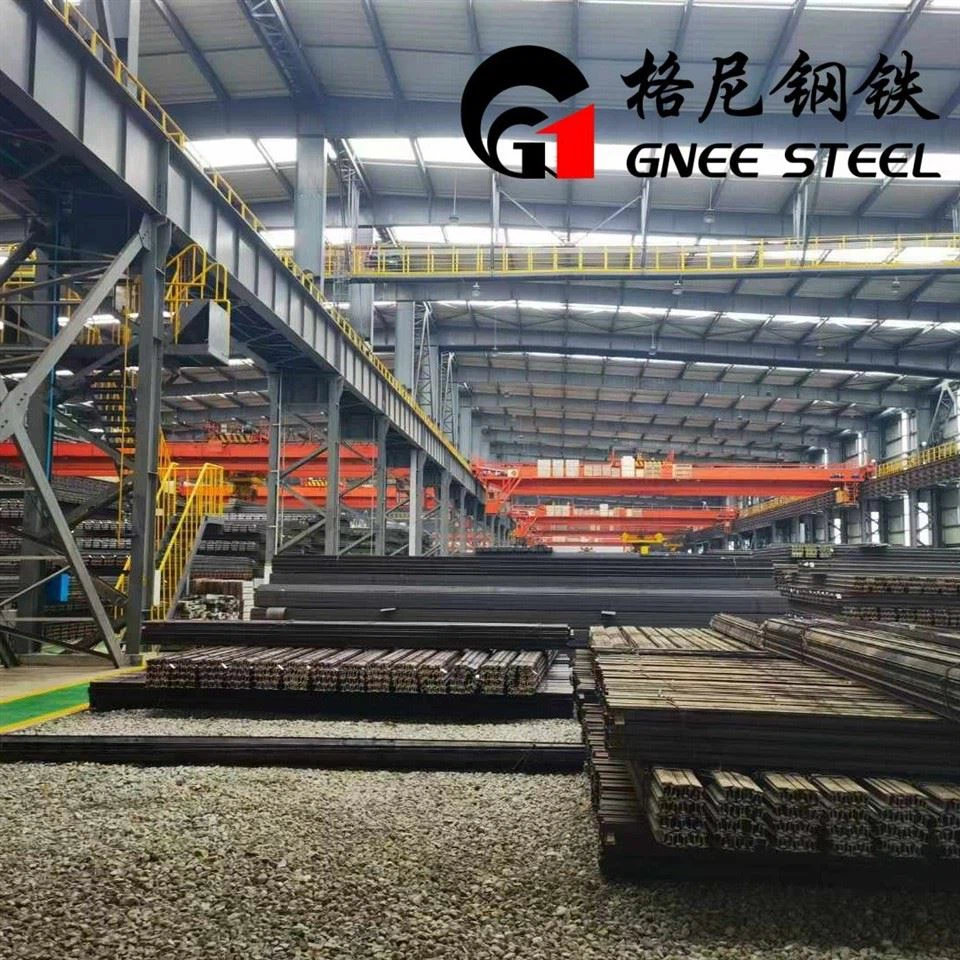

DIN Standard A150 Rail workshop
