GNEE RAILWAY RAILWAY Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of crane rail qu70 qu80 qu100 qu120 u71mn in China, also supports customized service with low price. Please feel free to buy cheap crane rail qu70 qu80 qu100 qu120 u71mn made in China here from our factory.

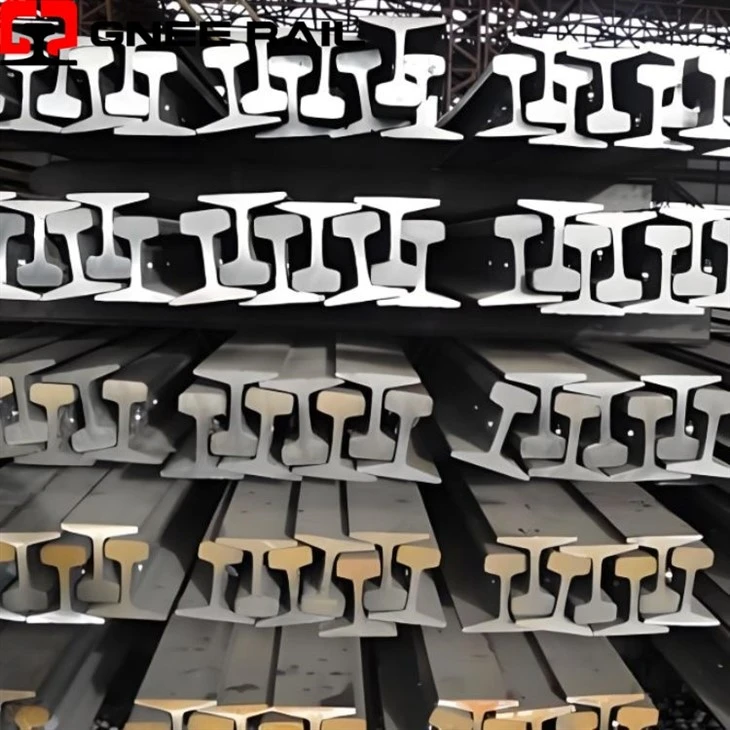

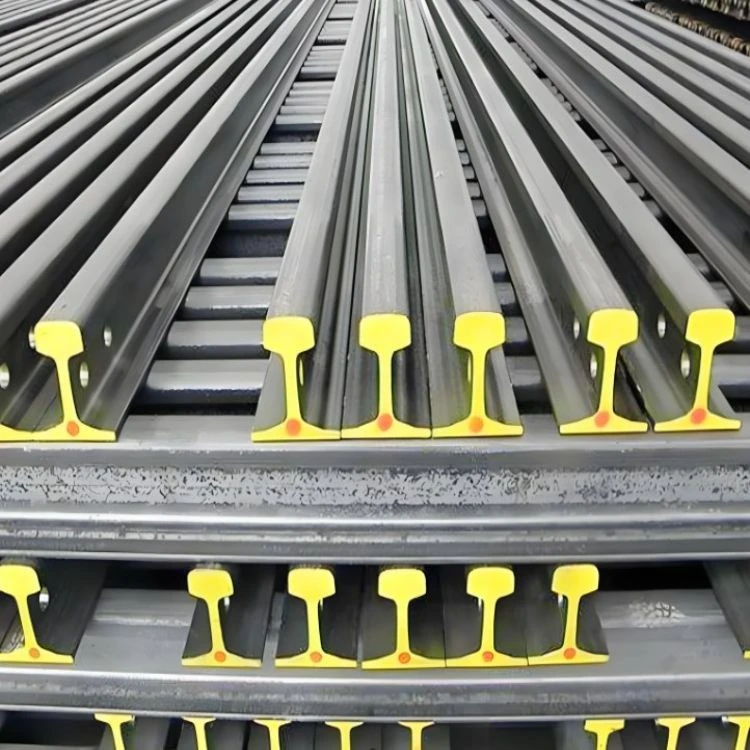

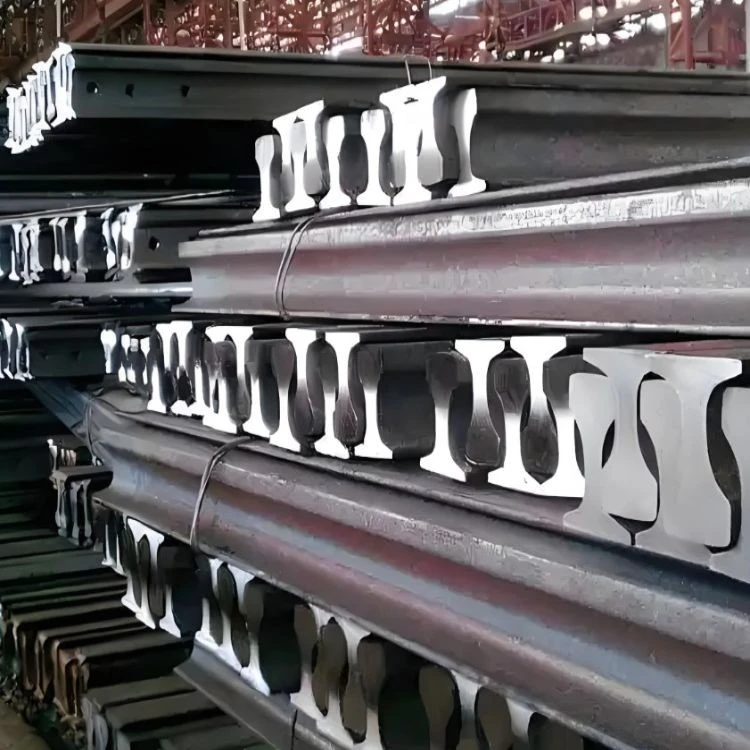

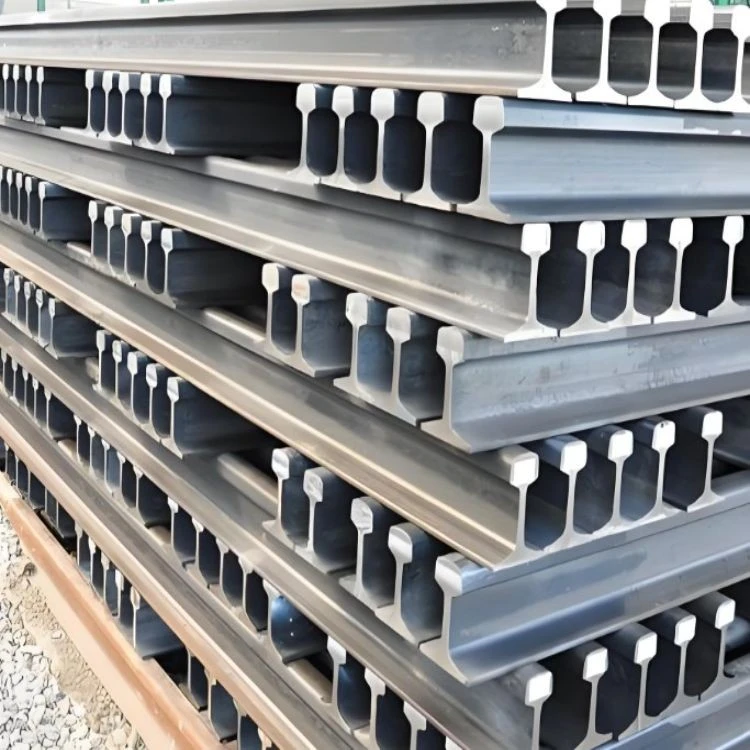

QU Series Crane Rail
QU rails produced according to GB specifications improve wheel force distribution through rail bottom slope design, reduce wheel tread eccentric wear, and improve the linearity and stability of crane operation. Crane rails QU70, QU80, QU100, and QU120 are commonly used rail models for cranes, and the material is usually U71Mn.
| Classification | SIZE(mm) | theoretical weight | |||||||||
| height | bottom width | head width | waist depth | ||||||||
| Crane rail | QU70 | 120 | 120 | 70 | 28 | 52.8 | |||||
| QU80 | 130 | 130 | 80 | 32 | 63.69 | ||||||
| QU100 | 150 | 150 | 100 | 38 | 88.96 | ||||||
| QU120 | 170 | 170 | 120 | 44 | 118.1 | ||||||
If you have special requirements for length or higher strength materials, please contact us for special custom production.
GB Crane Rail Material
U71Mn is a medium manganese low-alloy rail steel with increased manganese content based on the chemical composition of carbon steel. Its chemical composition contains 0.65%-0.76% carbon, 0.15%-0.35% silicon, 1.10%-1.40% manganese, and no more than 0.030% sulfur and phosphorus, and no more than 0.030% vanadium and niobium, respectively.
| Steel Grade | C(%) | Si | Mn | Cr | V | P | S | Tensile Strength (Rm/MPa) |
| U71Mn | 0.65~0.76 | 0.15~0.58 | 0.70~1.40 | – | – | ≤0.035 | ≤0.030 | ≥880 |
U71Mn has high strength and hardness, with a tensile strength greater than or equal to 880N/mm², and can withstand the weight of the crane and its hoisted cargo. At the same time, it also has good wear resistance and fatigue resistance, and can adapt to the working conditions of frequent starting, braking and lateral movement of cranes, ensuring that the track is not prone to wear, fatigue cracks and other problems in long-term use, and ensuring the safe operation of cranes.
crane Rail Application

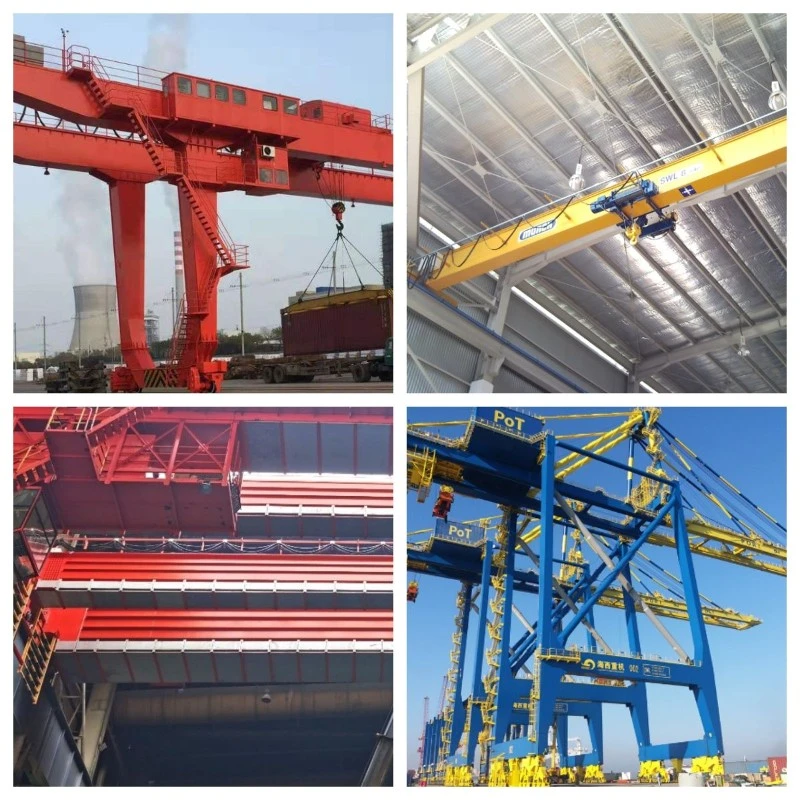

QU crane tracks are often used in large-scale projects, dock hoisting containers and other scenes, and are commonly used tracks for large cranes such as gantry cranes. For example, in some large ports, gantry cranes that need to lift large containers will choose the appropriate model of QU crane track according to their lifting weight and working requirements.
Generally speaking, cranes with large lifting weights and frequent work will use larger specifications of tracks, such as QU100 and QU120; while for some cranes with relatively small lifting weights and not particularly high working frequencies, tracks with specifications such as QU70 and QU80 can be used.
As a professional crane rail manufacturer and exporter in China, GNEE RAILWAY RAIL not only provides QU70, QU80, QU100, QU120 and other series products that meet international standards, but also provides customized services according to customer needs, including personalized solutions for special sizes, materials and heat treatment processes. GNEE RAILWAY has a complete quality management system, and implements full quality control from raw material procurement to finished product delivery to ensure that each track meets the highest standards. We look forward to establishing long-term and stable cooperative relations with global customers and providing you with the most cost-effective crane rail products and professional technical support services.
