Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of 30kg light rail in China, also supports customized service with low price. Please feel free to buy cheap 30kg light rail made in China here from our factory.
Rails are hot rolled from continuously cast blooms or rounds having the appropriate cross-section for the rails to be produced. They can also be rolled from near-net shape continuous cast rails, which saves time, energy, and cost by minimizing the processing needed to get the rail to its final shape.
Introduction:

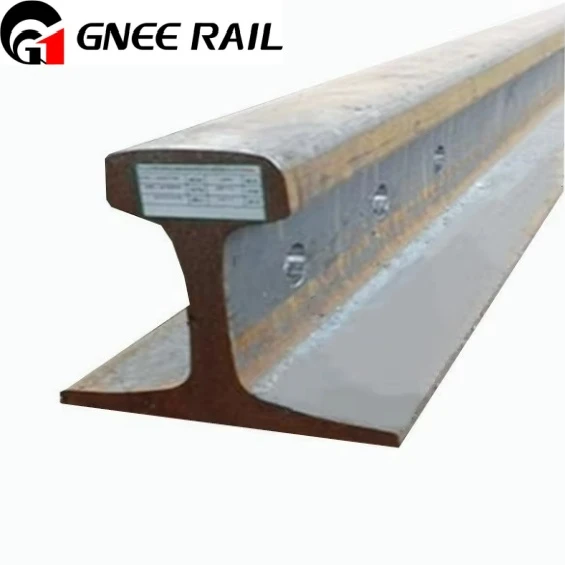

30KG Rail Railroad Steel is one of steel rail. The standard of 30KG Rail Railroad Steel usually composed by two joint bars, rails fixed to the sleepers, rail pad under the sleepers for the road, including roadbed, rail connection parts,etc..30kg rail consists of rail head, rail waist and rail bottom.
Main Function:
30kg rail is oriented and load bearing, it is used with the track wheel, to support the weight.30kg rail changes the direction of the cart.
Main Application:

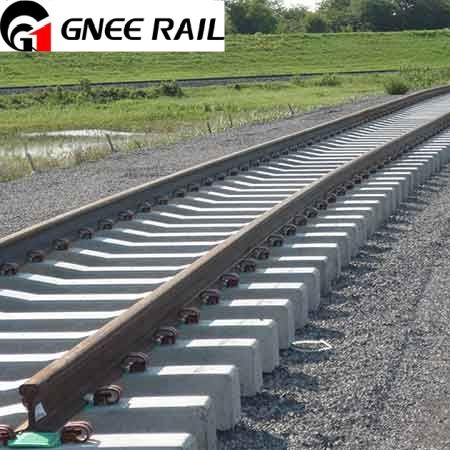

The 30kg rail is mainly used for the laying of temporary transportation lines and light locomotive lines for forest areas, mining areas, factories and construction sites.
Specifications:
| 30kg Rail Parameters | |||
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 30kg | 30.1 | Q235/55Q | 6-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 60.33 | 107.95 | 107.95 | 12.3 |
Type: 30kg light steel rail
Material: Q235/55Q
Weight: 30.1KG/M
Length: 6-12m
Standard: GB11264-89
