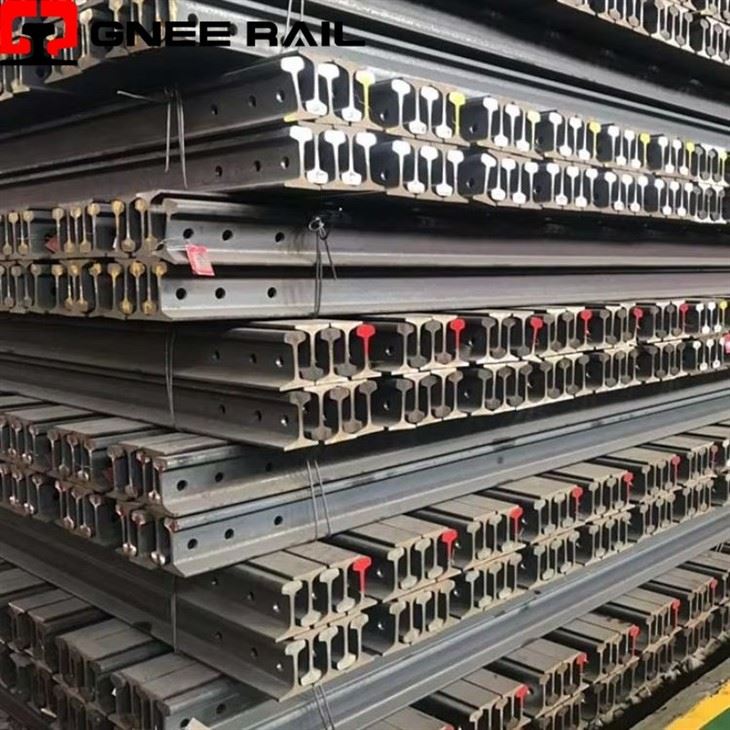

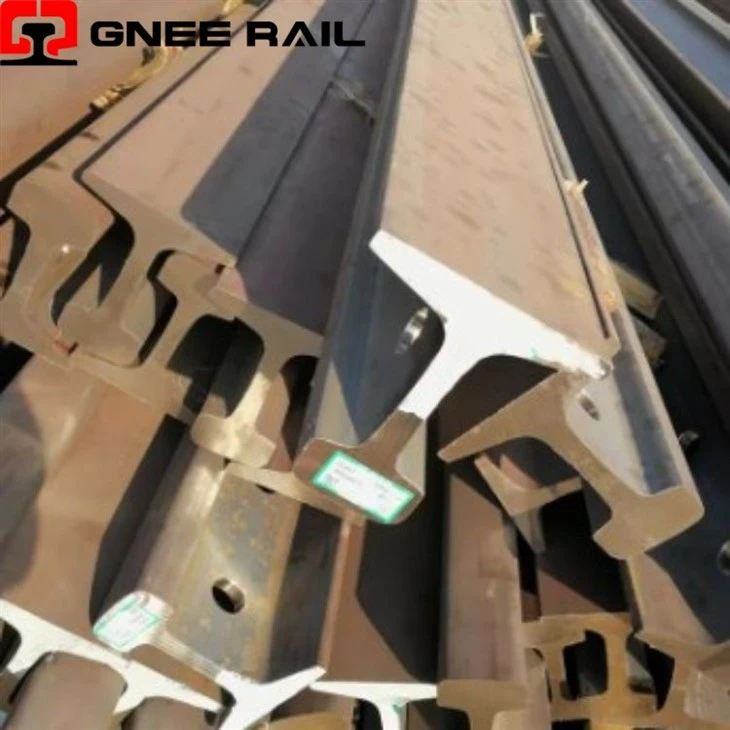

GNEE RAILWAY RAILWAY Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of 132re steel rail in China, also supports customized service with low price. Please feel free to buy cheap 132re steel rail made in China here from our factory.
What Is The American Standard Rail?
Rails are generally classified by weight over a standard length. Canada, the United Kingdom, and the United States use pounds per yard. China, Australia, and mainland Europe use kilograms per meter. Normally, the heavier rail supports greater axle loads and higher train speeds.
ASCE rail is the rails manufactured according to The ASTM A1 standard. It is a rail model under US standards. It is widely used throughout the Americas. Light rail is mostly used by mining farms. Some of these devices will also use ASCE rails. the rail specification includes:
ASCE25/ASCE30/ASCE40/ASCE50/ASCE60/ASCE70/ASCE80/ASCE85.
American standard rails are classified by weight per yard and primarily designed under AREMA (American Railway Engineering and Maintenance-of-Way Association) or ASTM specifications. Heavy rails like the 132RE (132 lbs/yd) are widely used in mainlines, heavy-haul railways, and freight Class I railroads across North and South America. GNEE RAILWAY provides standard and head-hardened 132RE rails to meet demanding axle loads and ensure long-term durability. We also offer matching joint bars and tie plates for a seamless installation.
Manufacturing Process of Rails:
Raw Materials–Heating – High pressure water dephosphorization - Blooming – High pressure air Phosphorus removal-Planish-Sawing-Pre Bending-Air Cooling-Physical and Chemical Property testing-Straightening- UT flaw detection - Drilling and milling-Heat Treatment-Test Rating-Identification-Package-Fished Steel Rails.
Specification:
| Type of Rail | Standard | Dimensions mm | Steel Grade | Mass M | |||
| Height | Base Width | Head Width | Web Thickness | kg/m | |||
| 132RE | AREMA | 181 | 152.4 | 76.2 | 16.7 | IS/SS | 65.33 |
Drawing:
Frequently Asked Questions about 132RE Steel Rail
Q1: What steel grades are available for GNEE RAILWAY's 132RE steel rails?
A1: We supply 132RE rails in various AREMA-compliant steel grades, including Standard Strength (SS) and Head Hardened (HH) rails (e.g., 310 HBW / 370 HBW), designed for heavy-haul railways and high-wear transit systems.
Q2: Can GNEE RAILWAY provide custom processing services for 132RE rails?
A2: Yes. We support customizable rail lengths (such as 39ft and 80ft) and offer precision end-drilling services (bolt holes) according to your engineering drawings.
Q3: Do you offer matching joint bars (fishplates) for 132RE rails?
A3: Absolutely. GNEE RAILWAY is a professional railway system supplier. We provide one-stop sourcing for 132RE compatible joint bars, tie plates, track bolts, and rail clips to ensure 100% geometric fit on-site.
About Us:

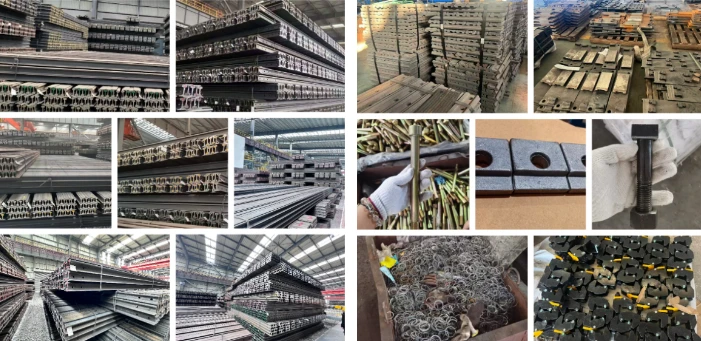

GNEE RAILWAY is one of China's leading exporters of railway equipment, with many years of experience in exporting railway equipment, you can discuss your sourcing requirements with us.
We are conveniently located in Anyang City, Henan Province.We would like to provide one-stop service for more friends all over the world and make your choice easier. We firmly believe that mutual benefit and win-win is the basis of our long-term cooperation.
As a professional rail fastener manufacturer and supplier, GNEE RAILWAY has been devoted in producing rail fasteners and rail joints since 2008. We have our own R&D team, after-sales team and quality control team. In addition, we have a testing center with full sets of inspections facilities for each rail products.
