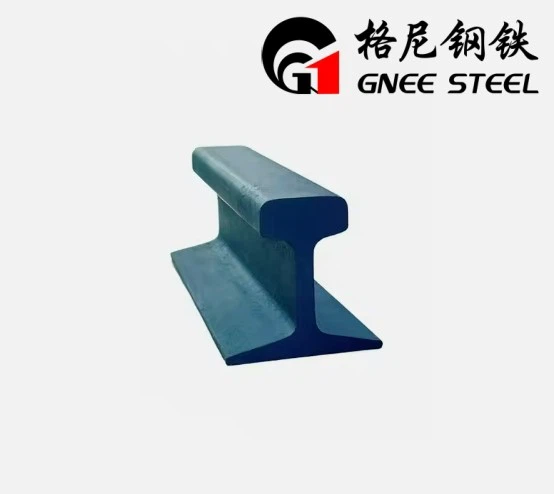

132-lb ASCE Rail
The 132-lb ASCE Rail is a heavy-duty rail product that adheres to the specifications of the American Society of Civil Engineers (ASCE). It is primarily used in mainline railroad tracks, where high load-bearing capacity is essential for transporting heavy freight and passenger trains. The "132-lb" designation indicates that the rail weighs 132 pounds per yard (approximately 65.46 kilograms per meter). This rail type is widely adopted in the U.S. and other regions following ASCE standards, ensuring compatibility with major rail infrastructure systems. Custom lengths, drilling, and technical support services are available to suit specific project needs. GNEE Rail is a reliable steel rail supplier, offering a wide variety of rails, including 132-lb ASCE Rail, light, heavy, and crane rails with various specifications. Feel free to contact us for more details!
132-lb ASCE Rail specification
Rail Type: 132 RE Rail
Section Number: 13225
Nominal Weight: 132 lbs/yd
Standard Length: 39'
Standard Drilling: 3-1/2" x 6" or 3-1/2" x 6" x 6" with 1-1/4" dia. holes
Joint Bar Length: 24" or 36"
Joint Bar Weight: 4-Hole bars: 70 lbs/pr with hardware: 79 lbs/pr
6-Hole bars: 117 lbs/pr with hardware: 130 lbs/pr
Track Bolt: 1" x 6"
132-lb ASCE Rail dimension
| Size | Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m) |
| 132lb 132RE | 180.90 | 152.40 | 76.20 | 16.60 | 65.58 |

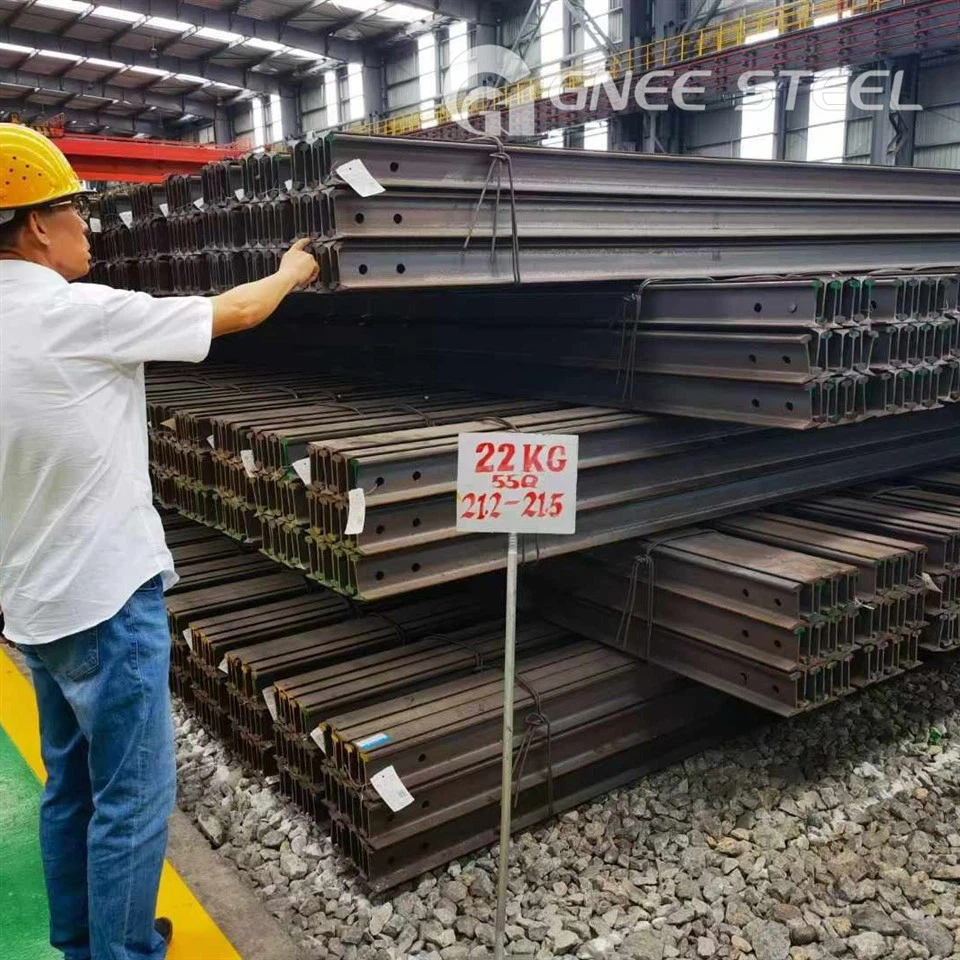

132-lb ASCE Rail workshop
