Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of rail clip e1609 in China, also supports customized service with low price. Please feel free to buy cheap rail clip e1609 made in China here from our factory.

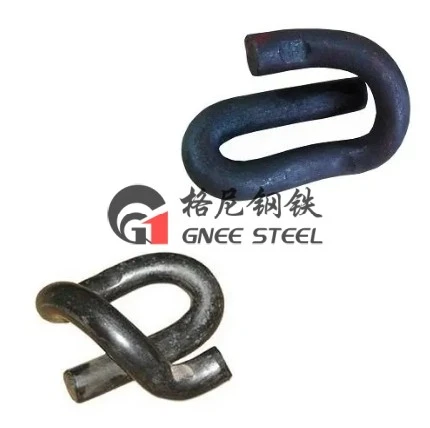

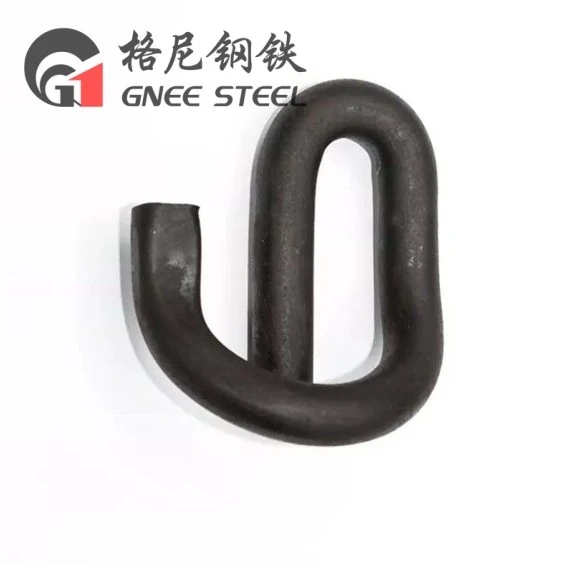

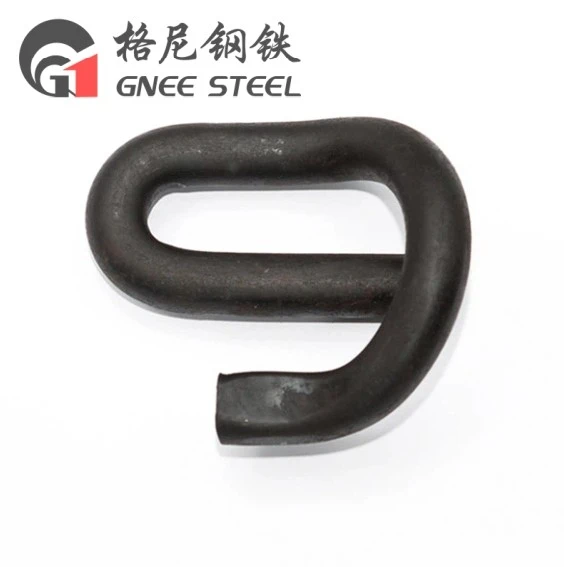

Rail Clip E1609
The E1609 rail clip is designed to secure railway tracks to their base plates or ties, ensuring stability and alignment.We specialize in manufacturing the E1609 rail clip and offer customization options to meet your specific needs. We are a professional manufacturer of railway components, producing a wide range of products such as rail fishplates, elastic rail clips, spikes, and rails. All our products are customizable and adhere to international standards. Please feel free to contact us for more information.
Rail Clip E1609 specification
Item No.: E1609
Type: E rail clip, elastic rail clip
Brand: GNEE rail
Other Names: Elastic railroad clip, railway fastener clip, railway clip
Material: 60Si2Mn or according to customer needs
Diameter: ø18 mm
Clip Length: 93±3 mm
Weight: 0.43 kg
Hardness: 44-48 HRC
Pressure Resistance: ≥9.5 kN
Fatigue Test: 5,000,000 times without break
Countries: Southeast Asia
Rail Clip E1609 technical parameters
| Item | Materials | Diameter | Weight | HRC | Under pressure | Fatigue test | Export area |
| Type III | 60Si2MnA | ø18 | 0.80kg | 44-48 | ≥950kgf | 5000000 times without breaking |
America Spain Brazil |
| 1809 | 60Si2MnA | ø18 | 0.63 kg | 44-48 | ≥950kgf | Southeast Asia | |
| e1609 | 60Si2MnA | ø16 | 0.43 kg | 44-48 | ≥950kgf | America European |
Rail Clip E1609 application
