Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of clip rail fastener system in China, also supports customized service with low price. Please feel free to buy cheap clip rail fastener system made in China here from our factory.

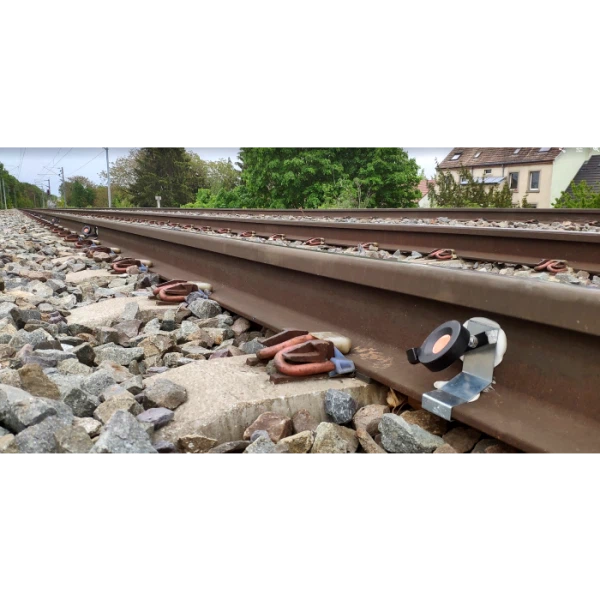

Rail elastic clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process. Because of the uniform microstructure of forged clips, it is considered to be better than other metal forming process.
Gnee Rail Clips
Approved by China's Railway Ministry and certified by ISO9001-2008 and SGS authorities, Gnee manufactures and supplies elastic rail clips of excellent properties covering complete types and standards. Using optimum spring steel as raw material, the finished products show high tensile strength and corrosion resistance after a series of precise processing procedures. The elastic rail clips we produced can withstand bending, torsion, fatigue corrosion, and many other effects. Owing to the biggest production base, our production capacity is up to 5,000,000 pieces.

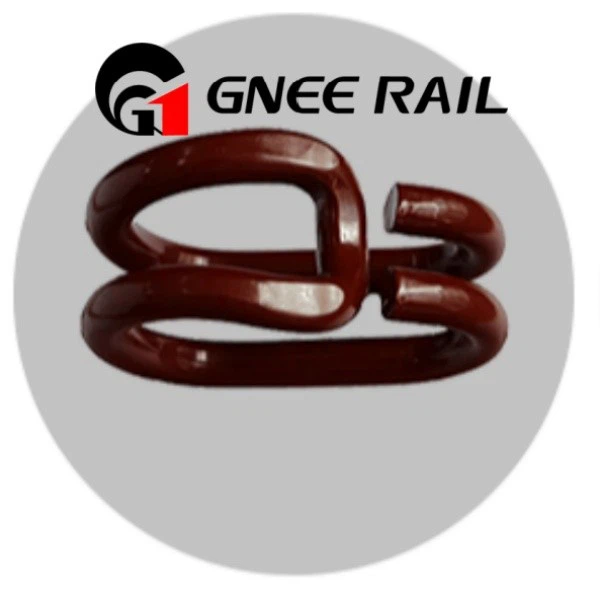

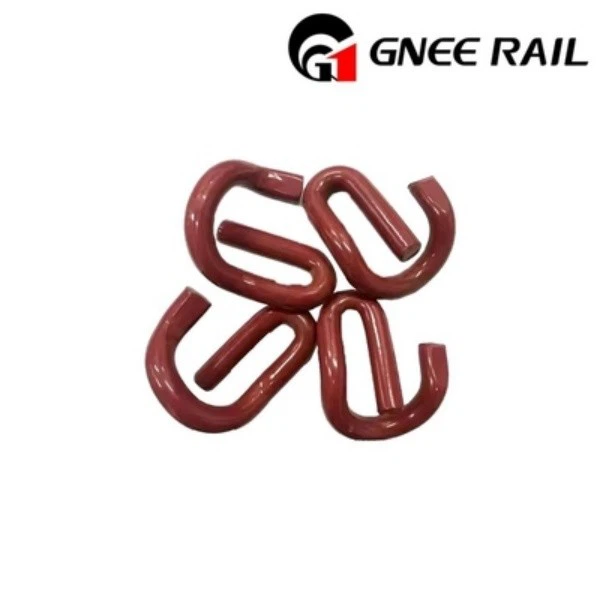

E-type Clip: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.

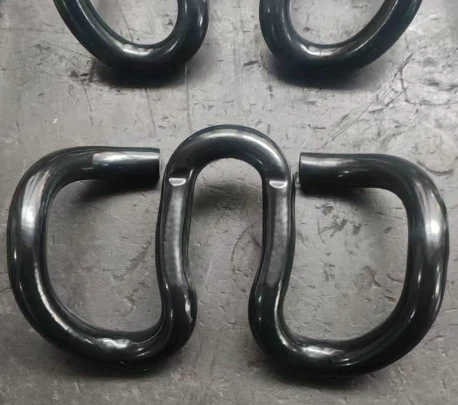

SKL Tension Clips: SKL1, SKL3, SKL12, SKL14, SKL75.
Other Rail Clips: Russian rail clip, Special rail clip,
Customized Rail Clips as per drawings or requirements of clients.
Varieties of Elastic Rail Clips
| Series | Type | Hardness | Material | Fatigue life | Surface |
|---|---|---|---|---|---|
| Elastic rail clip | E1,E2,E3 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
Plain (oiled), Oxide black, color painting or upon customer requirement. |
| E1609 | |||||
| E1809 | |||||
| E1817 | |||||
| E2001 | |||||
| E2006 | |||||
| E2009 | |||||
| E2055 | |||||
| E2056 | |||||
| SKL clip& Forged rail clip |
SKL1 | 42-47HRC | |||
| PR rail clip | PR309 | 44-48HRC | |||
| PR401 | |||||
| PR601 | |||||
| PR85 | |||||
| We can also manufacture customized rail clips following your drawings or samples! | |||||
The importance of rail clips in railway tracks cannot be understated. Without them, the rails would move, leading to derailments and other accidents. Rail clips ensure that the rails remain firmly in place, even when subjected to various forces such as vibrations and changes in temperature.
In conclusion, rail clips are a vital component of railway track systems that ensure their safety and stability. As the railway industry continues to evolve, future trends in rail clip technology will likely focus on improving durability, reducing maintenance costs, and increasing efficiency and safety in railway track systems.
