Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of railroad track bolts in China, also supports customized service with low price. Please feel free to buy cheap railroad track bolts made in China here from our factory.

Size: customization

Standard: UIC, GB, BS, DIN and GOST or ISO, etc.

Surface: Plain, black painting or upon customer requirement

Packing: Woven Bag/Kegs and Pallet/wooden box or upon customers

Track bolts also called rail bolts, a are used to fasten steel rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.

The track bolts can be classified into several types, such as, button head oval neck track bolt, diamond neck track bolt, rail bolt NF F50-008, fish bolt, track bolt of Russian standard, clip bolt, clamp bolt and inserted bolt for Russia, anchor bolt, T-bolt clamp and other special bolts, etc.

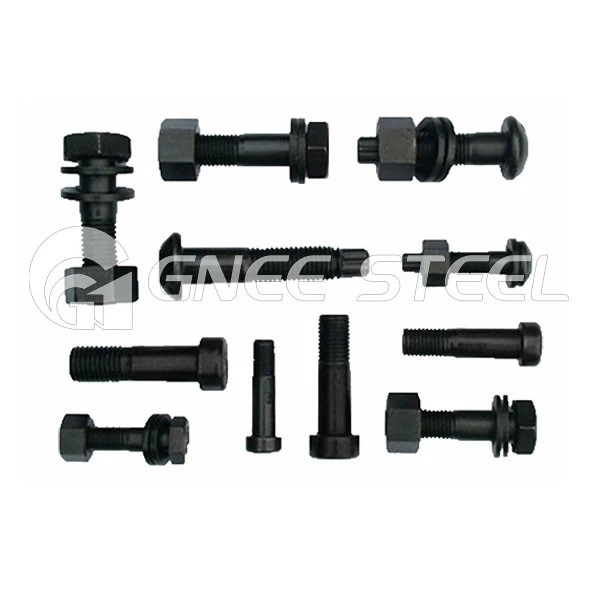

Railroad Track Bolts

GNEE Track Bolts

The parameters of Agico track Bolts are presented in the following for your reference:

Button head oval neck track bolt		Material: Carbon steel Grade: 8.8 10.9 Size: Dia. M5-M42 Surface: zinc plated
Diamond neck track bolt		Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 10.9 Standard: UIS864-2 Surface: plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Rail bolt NF F50-008		Material: Q235, 35#, 45#,, 40Cr Grade: 4.6, 5.6, 8.8 10.9 Certificate:ISO9001:2008 Surface: plain (oiled), Oxide black, Zinc, HDG
Clip bolt with BSW thread		Material: Q235, 35#, 45#, 40Cr Grade: 4.6, 5.6, 8.8, 10.9 Certificate:ISO9001:2008
Fish bolt used for rail joints (with railnuts and spring washers)		Material: Q235, 35#, 45#,, 40Cr , C45 Grade: 4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145 Surface: plain (oiled), Oxide black, Zinc, HDG Types: BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard, etc.
Clip bolt HS26 & HS32		This type of bolt is used to connect base plates and rail clamps together with nuts and washers. Two types of clip bolts are available: with square neck or without neck. Standard: UIS864-2 Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Standard: UIC, GB, BS, DIN and GOST or ISO, etc. Surface: Plain, black painting or upon customer requirement For rail types: M20 X 60 30Kg rail, M20 X 75 30Kg rail, M22 X 66 40Kg rail, M22 X 80 48Kg rail, etc.
Clamp bolt and inserted bolt for Russia		Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Size: M22 ×75, M22 ×175 Surface: Plain, black painting or upon customer requirement
Anchor bolt		We produce rail anchor bolt for concrete sleeper rail fastenings or for crane rail fastening systems. Material: Q235 Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement Type: L type,J type, I type, curve bolt, or the type by customers' drawings
T-bolt		Material: Q235, 45# Standard:GB37-88 Size: M5-48 Grade: 4.6, 5.6, 8.8, 10.6, 12.9 Surface: Natural or according to customers' requests
Special bolt		Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement
Tunnel bolt		Type :available by customers drawings and samples . Surface: plain (oil ) black.zin .HDG etc Class:4.6.4.8.8.8.10.9. Types: Square flange bolts with round thread, special curve bolt, spear bolts with special pitches
