Railway Track Anchors

Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of railway track anchors in China, also supports customized service with low price. Please feel free to buy cheap railway track anchors made in China here from our factory.

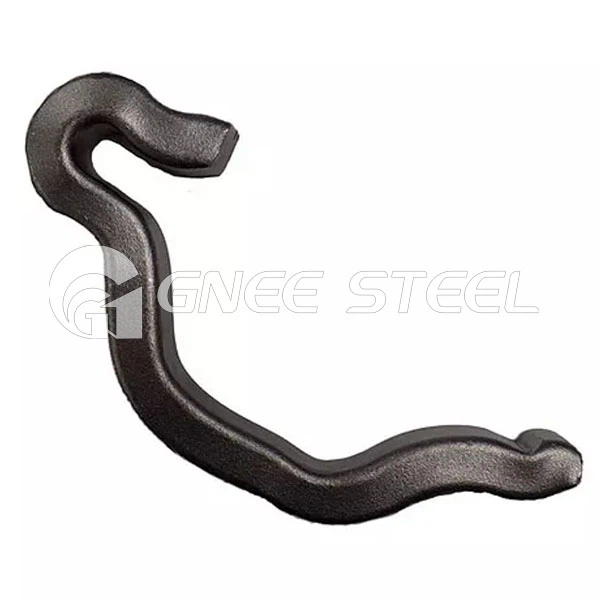

The Railway Track Anchors enlarge the contacting surface against both rail and tie, prolonging the life of wooden ties.

Railway Accessaries Railroad Anchor are used in 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54 and UIC60 rail, and so on.

Generally speaking, based on our former production experience, most common material for rail anchor production is 60Si2MnA, which is often used for rails such as 50kg, 70lb, 80lb, 90/91lb and so on.

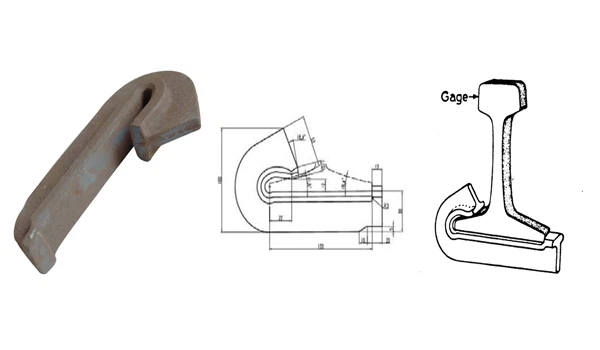

Rail anchors are applied to the rail base directly and lodge up against the tie, they are equipped to fasten rail track on the base plate and sleepers, it is designed in one-piece construction to prevent the rail from longitudinal movements, as“creeping” of the rail, which caused by changing temperature, grades, traffic patterns, and braking action of trains.

It provide a large bearing surface against rail base and rail tie, preventing cutting and wear, so as to prolong the working life of the rail ties. Rail Anchors are made for a specific rail weight and base width, which can be classified into two types: the Drive-on rail anchors and Spring type rail anchor.

Rail anchors are applied to the rail base directly and provide a large bearing surface against rail base and rail tie, preventing wear and cutting, and eventually to prolong the working life of the rail ties. According to specific rail weight and base width, anchors can be classified into two types: the Drive-on rail anchors and spring type rail anchor.

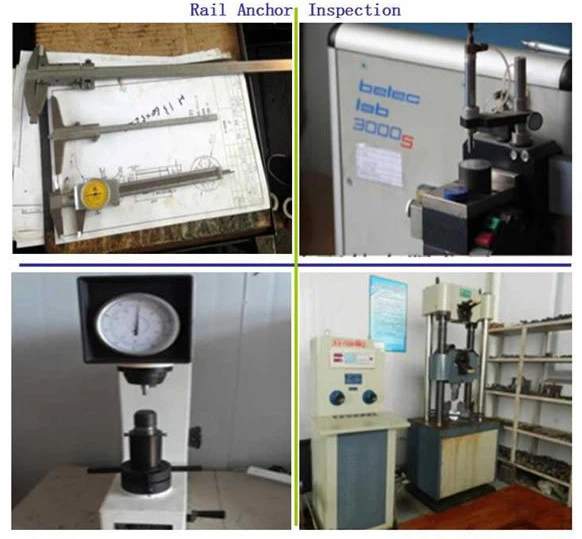

Rail anchors are produced in accordance with exacting quality standards, approved by GNEE Quality Assurance Guarantee as well, with features as below:

1. With consistent style and high quality for right rail fit

2. ISO9001 certified rail anchors with higher longitudinal keeping power.

3. Fast, simple and safe usage

4. Available in drive-on or spring design.

5. Available for solutions of various different rail types and conditions
