GNEE RAILWAY RAILWAY Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of skl 14 elastic clip for railway fastening system in China, also supports customized service with low price. Please feel free to buy cheap skl 14 elastic clip for railway fastening system made in China here from our factory.
Product Introduction

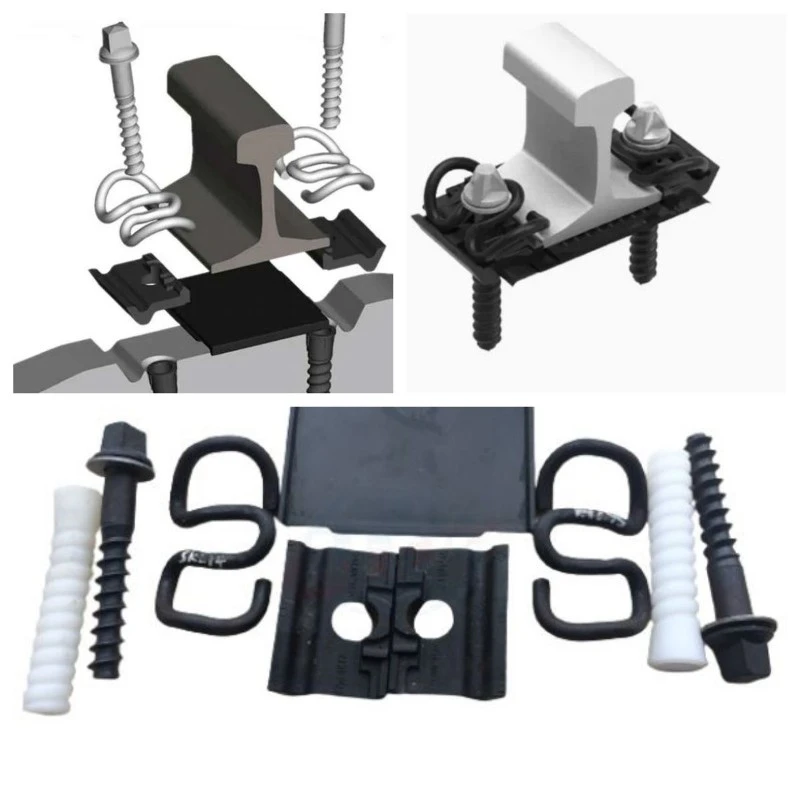

The SKL fastener system is a rail connection system developed based on many years of railway engineering practice experience. It consists of components such as spring bars, insulating gauge blocks, and rubber pads. Through scientific mechanical design, it realizes reliable connection between rails and sleepers, and can effectively resist the longitudinal force, lateral force and vertical impact force generated by train operation. The system uses high-strength alloy steel and high-performance rubber materials, and has good high and low temperature adaptability.
In terms of model classification, SKL1 is an entry-level product used for general railway maintenance; SKL2 enhances stability by improving the spring bar structure and is often used in important freight channels; SKL3 adopts a composite vibration reduction structure and is widely used in urban rail transit; SKL12 is optimized to meet the stringent requirements of high-speed rail for smoothness; SKL13 reinforced configuration is specially designed for heavy-duty railways with axle weights of more than 30 tons; SKL15 is customized for the characteristics of ballastless tracks to ensure long-term stability of track geometry.

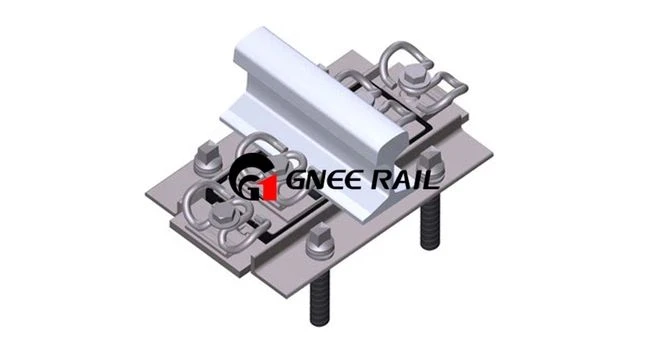

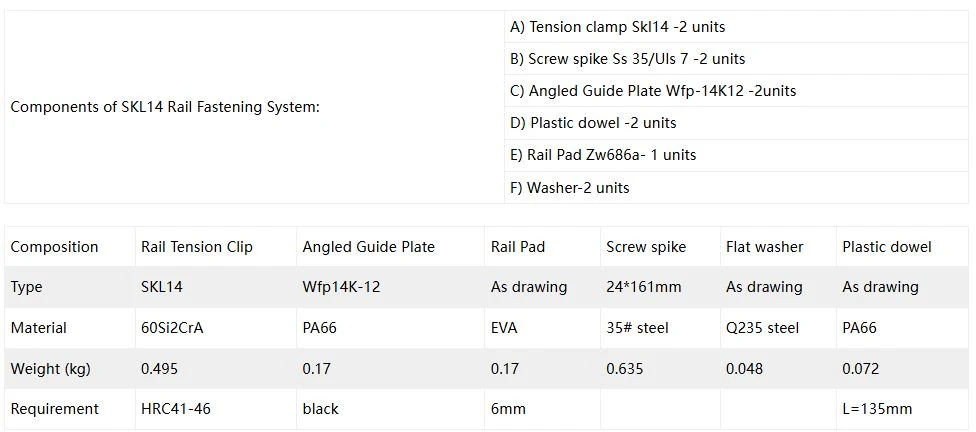

SKL 14 Elastic Clip Railway Fastening System

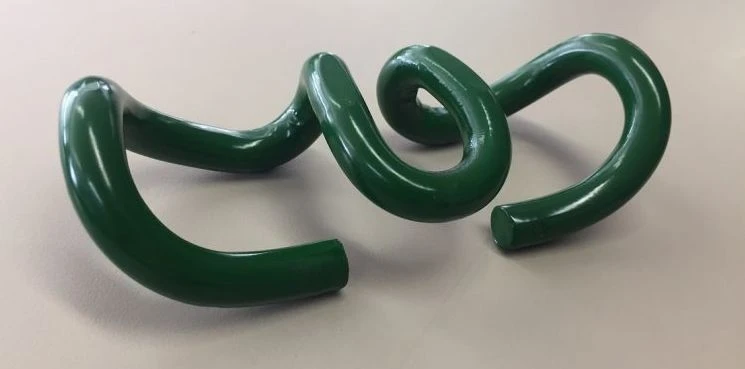

W14 spring bar: has good elasticity and high strength, and the surface hardness is usually 40-46HRC.
Threaded spike: used to fix the fastener system on the sleeper, providing reliable connection force.
Embedded sleeve: has high load-bearing capacity, can effectively transmit force and reduce damage to the sleeper, while reducing lateral force and reducing the load on the sleeper.
Flat washer: placed between the head of the threaded spike and the sleeper, it plays a role in dispersing pressure and protecting the sleeper surface.
Gauge block: adjust the gauge through different widths to ensure that the rails remain in the correct position.
Elastic pad under the rail: has good elasticity, can compensate for vertical forces, make the rails produce stable deflection, and at the same time play a role in shock absorption and reducing structural noise.

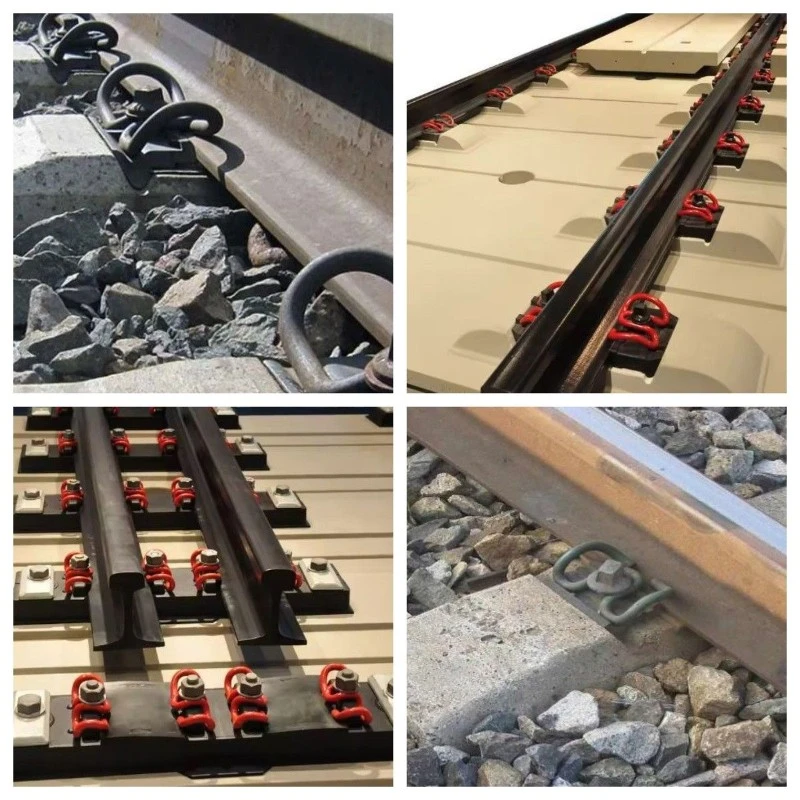

Product Application
GNEE RAILWAY RAILWAY is a company specializing in the international trade of railway engineering connectors. Its products cover all-scenario application needs such as tracks, bridges, and tunnels. We integrate domestic high-quality manufacturing resources and establish a strict quality control system to ensure that product performance meets international standards. All cooperative factories have passed ISO 9001 quality management system certification and have mature and stable production processes. We are equipped with a multilingual service team that can provide customers with professional technical support and product selection recommendations.
