Product Introduction
The Nabla Clip rail fastening system for trams is an efficient and reliable rail connection device.
Features
Easy installation: The system is compatible with both bottom-up and top-down construction methods and can be quickly installed in dry mix or fresh concrete, allowing tram lines to be put into operation as soon as possible.
Strong compatibility: Equipped with a cover to prevent concrete contamination, it is compatible with a variety of surfaces such as grass, pavement, concrete and asphalt, making it suitable for tracks in various environments.
Reliable performance: Its design includes an optimized base plate to prevent weak points in the concrete fill, ensuring the strength and performance of the track system during its service life.
Good load balance: The GS anchor device can transfer loads to the concrete slab well, providing 90kN and above pull-out resistance.
Good adjustability: It can provide a wide range of stiffness (from 35mn/m to 150mn/m) and better than -10db vibration attenuation, suitable for a variety of track application scenarios.
Product Specifications
| Nabla Rail Fastening System | |||
| Part Name | Pcs / Set | Types | Material |

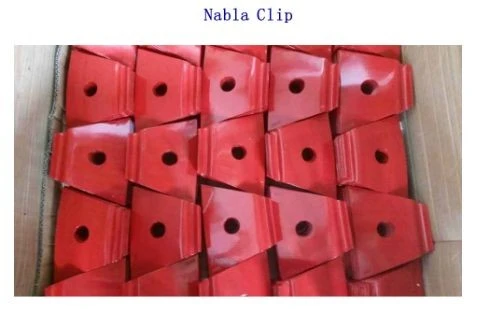

| Nabla Clip | 2 | Thickness: 4mm or 4.5mm | 60Si2MnA / 60Si2CrA |
| Rail Insulator | 2 | For Rail of UIC54,UIC60, | Reinforced Nylon 66 (PA66) |
| 50kg rail,60kg. | |||
| Double Head Screw Spike | 2 | For Rail of UIC54,UIC60, | Grade 4.6: Q235 |
| 50kg, 60kg. | Grade 5.6: 35# | ||
| Grade 8.8: 45# | |||
| Nut | 2 | Can be customized | Grade 5: 35# |
| Grade 8: 45# | |||
| Spring | 2 | Can be customized | ML08AL, 60Si2MnA, 65Mn |
| Spring Washer | 2 | 18.25×34×78mm | ML08AI |
Product Packaging & Delivery
Foldable PP plastic Wantong board is used to make packaging boxes. Adjustable plastic partitions are inserted into the box according to the specifications of the fasteners to form independent storage spaces. After the fasteners are installed, sponge buffer strips are placed in each compartment to avoid mutual friction. The box cover and the box body are connected with Velcro for easy opening and closing. When multiple boxes are stacked, the four corners of the box body are designed with nesting structures. After stacking, environmentally friendly fiber strapping is used to bundle them horizontally and vertically, which not only saves transportation and storage space, but also effectively protects the goods.
