Product Introduction

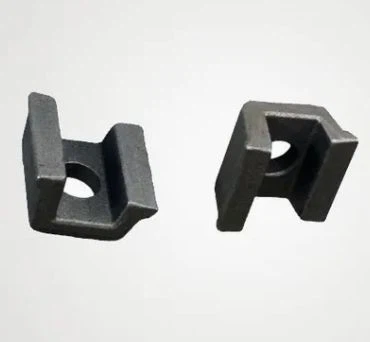

The KPO Track fastener system is a standardized fastening solution designed for railway track engineering, mainly divided into three specifications: KPO3, KPO6, and KPO9. The system consists of KPO clips, embedded screw spikes, high-strength hexagonal bolts and nuts, spring washers, and composite rubber pads.
Among them, the KPO clip is pressed from Q235 carbon structural steel, and the screw spikes and other load-bearing parts are made of 35# or 45# high-quality carbon steel according to the load-bearing requirements. The system is mainly used for rail fixing on ballasted and ballastless railway tracks, and can effectively resist the vibration and impact generated by train operation. Its advantages are high installation efficiency and long maintenance cycle. The production process covers conventional processes such as steel forging, mechanical cutting, and surface galvanizing anti-corrosion treatment to ensure that the components meet the strict standards of the railway industry.
The KPO rail fastener system is mainly composed of several key components such as gussets, iron pads, spiral spikes, rubber pads, and insulated gauge blocks.
Gussets: Through specific design and structure, the rails are tightly connected with other components to prevent the rails from displacement.
Iron pads: It evenly distributes the pressure from the rails to the sleepers, effectively reducing the local pressure on the sleepers and increasing the service life of the sleepers.
Spiral spikes: Spiral spikes are used to firmly fix the gussets and iron pads on the sleepers. It cooperates with the pre-set holes on the sleepers and uses the tightening effect of the threads to ensure that the entire fastener system is tightly connected to the sleepers.
Rubber pads: The rubber pads are located between the rails and the iron pads, and have important functions of buffering and vibration reduction.
Insulated gauge blocks: The insulated gauge blocks mainly play the role of maintaining the gauge and electrical insulation. It can effectively prevent current leakage and ensure the normal operation of the track circuit.
Product Specifications
| Specifications for ONE unit of KPO type rail fastening system | ||
| Item | Quantity | Material |
| KPO clip | 2 | Q235 |
| Screw spike | 2 | Grade 4.6: Q235 |
| Grade 5.6: 35# | ||
| Grade 8.8: 45# | ||
| HS bolt | 4 | Grade4.6: Q235 |
| Grade5.6: 35# | ||
| Grade8.8: 45# | ||
| Hex nut | Grade 5: 35# | |
| 2 | Grade 8: 45# | |
| Double coil spring washer | 2 | 65Mn |
Product Application
Product Packaging & Delivery
Flexible webbing fixing + fiberboard box packaging: First, arrange the fasteners in parallel in a customized fiberboard box, and lay a non-slip rubber mat on the bottom of the box. Use high-strength flexible webbing to pass through the reserved holes in the box in a "well" shape to firmly fix the fasteners in the box to avoid shaking during transportation. The box cover is connected to the box body through an embedded buckle, and then reinforced horizontally and vertically with fiber strapping, and a fragile warning sign is affixed to the outside, which is suitable for the stable transportation of fasteners such as large screws and steel bars.
GNEE RAIL is a professional company focusing on international trade of railway fasteners. We are committed to providing comprehensive procurement solutions for global customers. We have established a nationwide supplier network and selected more than 50 high-quality manufacturers with ISO certification to ensure stable and reliable product quality.
The main products include various types of rail connectors, fastener systems, special bolts, etc., with more than 1,200 specifications, which can meet the use requirements of different rail types and climatic conditions. We are equipped with a professional foreign trade team and quality inspection center, and each batch of products is strictly inspected before delivery.
