Product Introduction
The Fatc Clip track fasteners system is a mechanical connection device specially designed for railway tracks, achieving a tight connection between rails and sleepers (or ballast beds). It consists of elastic fasteners, connecting parts and rubber pads.
The elastic fasteners provide elastic buckle pressure, the connecting parts realize the connection between components, and the rubber pads provide shock absorption and noise reduction. The system can effectively limit the deformation of the rails, enhance the integrity and stability of the track, and adapt to the high-speed and heavy-load operation requirements of trains.
components of FC track fasteners system

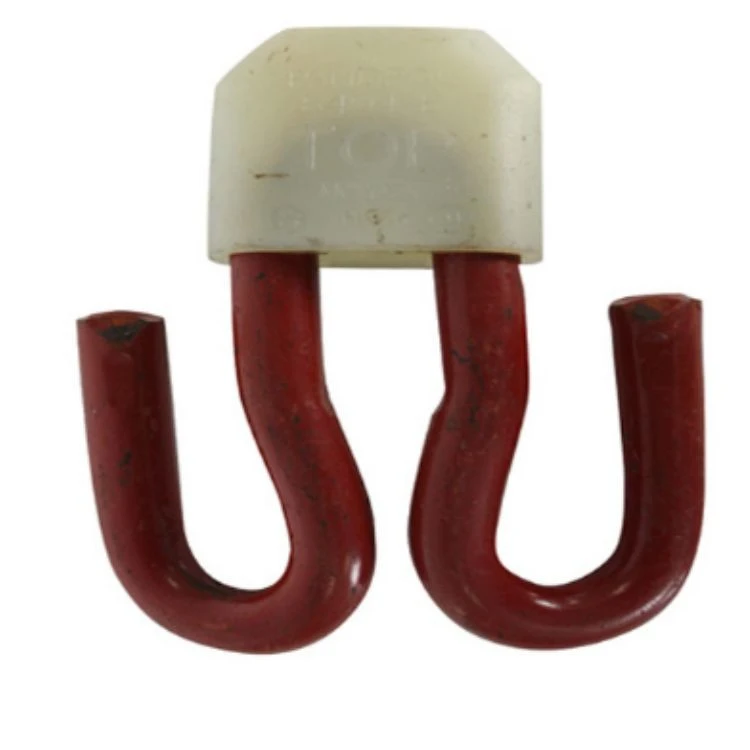

- Spring Clip: There are many types of spring clips, such as Fc1504, Fc1502 and Fc1306. The spring clip is a key component that provides buckle pressure and fixes the rail to the sleeper through its own bending and twisting deformation.
- Insulating Cap: Installed on the spring clip, the insulating cap provides insulation and protection of the spring clip, preventing the current from being conducted through the spring clip and reducing the wear and corrosion of the spring clip.
- Embedded Base: The embedded base is pre-buried when making the sleeper, providing an installation position for the spring clip so that the spring clip can stably buckle the rail and form an integral structure with the sleeper.
- Insulating Gauge Block: Located between the embedded base and the rail, the insulating gauge block is used to adjust the left and right position of the rail and provides electrical insulation to ensure the normal operation of the track circuit.
- Rubber Pad: Placed between the rail and the sleeper, the rubber pad has good elasticity and shock absorption performance. It buffers the impact force generated by train operation, reduces the wear of the rail and the sleeper, and extends the service life of the track.
| Item | Detail |
|---|---|
| Type | FC rail fastening system |
| Material | Steel alloy, rubber, nylon |
| Manufacturing process | Forging and machining |
| Feature | Easy installation and maintenance |
| Usage | Track stability |
| Application | Concrete sleeper |
| Accessories | Fast clip, rail base plate, insulated steel pin |
Contact now
GNEE RAILWAY RAILWAY supplies FC Clip Track Systems and compatible railway fastening components for railway construction and maintenance projects. The system can be configured with rail clips, base plates, rail pads, spikes, bolts, and other track accessories according to rail profile, sleeper type, and project requirements. GNEE RAILWAY RAILWAY provides dimensional and material specifications, quality inspection, and export documentation to support international railway projects.
