Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of crane rail kpo3, kpo6, kpo9 clamp in China, also supports customized service with low price. Please feel free to buy cheap crane rail kpo3, kpo6, kpo9 clamp made in China here from our factory.
Product Introduction

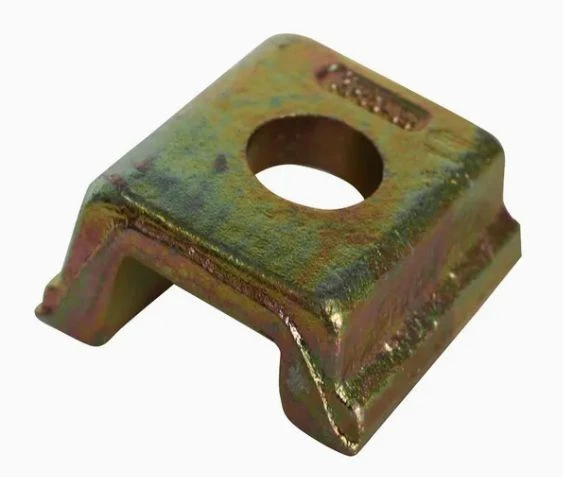

The KPO fastener system is a clamping fastening solution for railway tracks, covering three series: KPO3, KPO6, and KPO9. The system consists of KPO clips, threaded spikes, hexagonal bolt and nut sets, conical spring washers, and elastic pads under the rail. The clips are cold-formed with Q235 steel, and the spikes and other load-bearing parts are made of 45# medium carbon steel.
It is mainly used for track laying in urban rail transit, and can absorb the vibration energy during train operation. Its advantages are fast installation and compact structure. The production process includes steel cold processing, mechanical tapping, surface anti-rust coating and other processes.
KPO3, KPO6, and KPO9 are different models of buckle plates in the KPO type railway fastener system, which are widely used on crane tracks.
Applicable scenarios
KPO3: Generally suitable for some light crane tracks, such as small bridge cranes and electric hoists in workshops. These cranes have relatively small lifting weights and slow running speeds, and the load requirements for track fasteners are not particularly high.
KPO6: Commonly used for crane tracks with moderate lifting weights, such as bridge crane tracks in some medium-sized factories and portal crane tracks in ports. It can meet the requirements of frequent operation and operation of cranes under medium load conditions.
KPO9: Mainly used for heavy-duty crane tracks, such as casting crane tracks in large steel plants and large loading and unloading bridge tracks in mines. The cranes in these places have large lifting weights and frequent operations, and the tracks need to withstand huge loads and impact forces. KPO9, with its strong buckling pressure and stability, can ensure the safe operation of the tracks under long-term heavy loads.
| KPO fastening system | ||||||
| KPO clamp | Screw spike | HS bolt | Hex nut | spring washer | Base plate | |
| Pieces required | 4 | 8 | 4 | 4 | 8 | 2 |
| Material | Q235 | Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# | Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45# | Grade 5: 35# Grade 8: 45# | 65Mn | Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel; |
| Type; | KPO3, KPO6, KPO9 | M24X150mm M24 x160mm M24 x180mm | HS26, HS32 | As ordered | As ordered | UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size |
| NOTE | Standard: DIN5906 | Standard: ISO898-1, UIC864-1 and NF F500-50 | Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm | Standard: DIN985 | Standard: UIC864-3 | Standard: UIC864-6 |
Product Packaging & Delivery
Degradable film wrapping + pulp molded pallet: The bundled fasteners are wrapped with degradable bio-based film, which is dustproof and easy to identify. The wrapped goods are placed in a pulp molded pallet, and the pallet is designed with a support structure based on the shape of the goods. After multiple pallets are stacked, they are fixed with degradable fiber belts and covered with waterproof paper covers on the top, meeting green environmental protection export standards and suitable for markets with sustainability requirements.
GNEE RAIL is a professional company focusing on international trade of railway engineering fasteners. Its product line covers all kinds of connectors required for railway construction. We have established strategic cooperation with many large manufacturing companies to ensure the stability of the supply chain. All products have passed strict factory inspection and meet international railway industry standards. We are equipped with a professional technical support team to provide customers with product selection and technical consulting services.
