Approved by China's Railway Ministry and certified by ISO9001-2008 and SGS authorities, GNEE RAIL manufactures and supplies elastic rail clips of excellent properties covering complete types and standards. Using optimum spring steel as raw material, the finished products show high tensile strength and corrosion resistance after a series of precise processing procedures. The elastic rail clips we produced can withstand bending, torsion, fatigue corrosion, and many other effects. Owing to the biggest production base, our capacity is up to 5,000,000 pieces.
Types of rail clips provided by GNEE RAIL

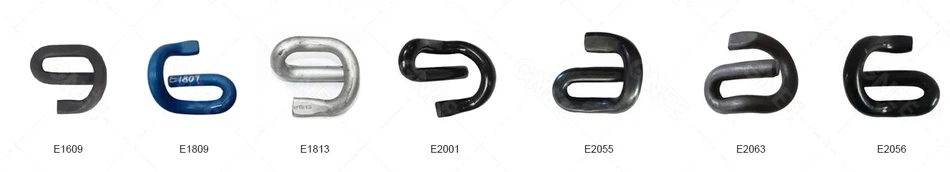

E-type Clip: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.
| Model | Diameter | Material | Under Pressure | HRC | Weight |
| E1609 | Ø 16mm | 60Si2MnA | ≥950kg | 44-48 | 0.43kg/pc |
| E1809 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.61kg/pc |
| E1813 | Ø 18mm | 60Si2MnA | ≥950kg | 44-48 | 0.62kg/pc |
| E2001 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2009 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2039 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2007 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2055 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2056 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2063 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
SKL Tension Clips: SKL1, SKL3, SKL12, SKL14.
| Model | Diameter | Material | Hardness |
| SKL1 | ø13 | 60Si3CrA | 42-47 |
| SKL3 | ø13 | 60Si3CrA | 42-47 |
| SKL12 | ø13 | 38Si7 | 42-47 |
| SKL14 | ø14 | 60Si2MnA | 42-47 |
Other Rail Clips: Russian rail clip, special rail clip,
| Other Rail Clips | |||||
| Model | Russia rail clip | Deenik clip | Anti-vandal clip | Fast clip GL1419 | GL1419 |
| Diameter | ø18 | ø25 | ø18 | ø15 | ø14 |
Customized rail clips are as per drawings or client requirement.

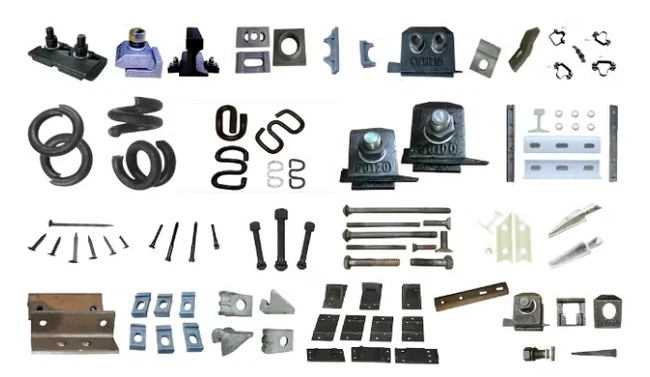

We also manufacture kinds of Railway Screw Spike, Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail,and Other rail fastening parts.
