As a professional manufacturer and supplier of railway fastenings, GNEE RAIL provides specialized elastic fasteners for railways, such as SKL rail clips, E-type railway clips, Russian rail clips, FAST rail elastic clips, FIST railroad clips, and others. Our elastic fasteners are manufactured from high-quality raw materials with precision design, offering high tensile strength and corrosion resistance. Our products can also be customized according to client requirements.
We are capable of producing elastic fasteners that meet various axial load and axle load requirements to secure rails to wooden, steel, or concrete sleepers. We produce different types of elastic fasteners and offer solutions tailored to diverse axial load and axle load demands for fastening rails to wooden, steel, or concrete sleepers.

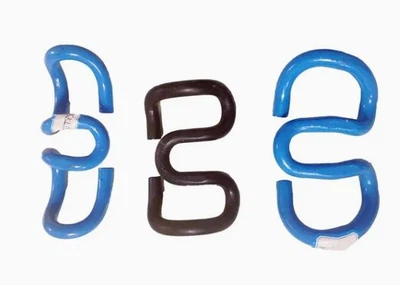

E Type Rail Clip
| Model | Diameter | Material | Under Pressure | HRC | Weight |
| E1609 | Ø 16mm | 60Si2MnA | ≥950kg | 44-48 | 0.43kg/pc |
| E1809 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.61kg/pc |
| E1813 | Ø 18mm | 60Si2MnA | ≥950kg | 44-48 | 0.62kg/pc |
| E2001 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2009 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2039 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2007 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2055 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2056 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2063 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
SKL Tension Rail clip
| SKL Tension Clips | |||
| Model | Diameter | Material | Hardness |
| SKL1 | Ø13 | 60Si2CrA | 42-47 |
| SKL3 | Ø13 | 60Si2CrA | 42-47 |
| SKL12 | Ø13 | 38Si7 | 42-47 |
| SKL14 | Ø13 | 60Si2MnA | 42-47 |
Deenik Railroad Clip
| Diameter (mm) | Weight (Kg) | Toe Load (Kgf) |
| Ø12 | 0.18 | 200~400 |
| Ø14 | 0.3 | 400~600 |
| Ø16 | 0.44 | 500~700 |
| Ø18 | 0.59 | 800~1000 |
| Ø20 | 0.76 | 1100~1400 |
| Ø25 | 0.49-0.68 | 1200~1500 |
We also manufacture kinds of Railway Screw Spike, Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, and Other rail fasteners parts.
