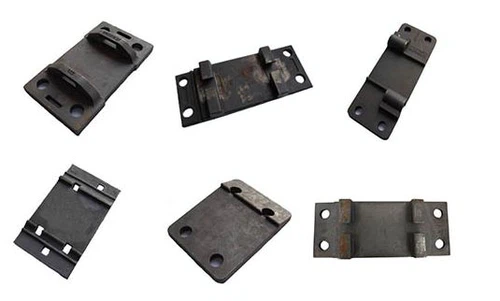

Rail tie plate is also called rail base plate or sole plate, it is a main component in railroad construction of a crane rail or track support system.Rail tie plates can be classified depending on either a single or double shoulder construction, GNEE RAIL can supply various ribbed tie plates.
Types of Railroad Tie Plate
| Product Name | Type | Process | Material |
| Tie plate | Single Shoulder | Rolled,Forging,Casting | QT450-10,20#,35#,etc |
| Double Shoulder | |||
| Hook Twin Tie Plates | |||
| Direct Fixation Tie Plates | |||
| Other kinds of baseplate are also available according to your drawings or samples! | |||
Rail Tie Plate Specifications
| Appications | Apply for rail UIC54, UIC60, 50kg rail, 60kg rail, S49 and size as ordered | |||
| Raw Material | QT500-7 (Casting iron) | QT450-10 (Casting iron) | Low Carbon Steel | High Carbon Steel |
| Chemical Compostition (%) | C:3.60-3.80, Mn:≤0.6, | C:3.40-3.90, Mn:0.2-0.5, | ||
| Si:2.50-2.90, P:≤0.08, S:≤0.025 | Si:2.70-3.00, P:≤0.07, S:≤0.03 | |||
| Production Engineering | Forging ,Casting ,Rolling | |||
| Surface Treatment | Plain ,Sandblasting | |||
| Standard Reference | AREMA ,GB,JIS E1110, UIC864-6, | |||
| Rail tie plate | Applicable condition | Processing way | Material |
| Singer shoulder tie plate | Rail weight | casting, | QT500-7 or QT450-10 (low carbon steel or high carbon steel by forging, and low carbon steel S275JR, Q235,etc. by rolling.) |
| 56lb~100lb | forging, rolling | ||
| Double shoulder tie plate | Rail weight | ||
| ≥100lb | |||
| Hook twin tie plate | turnout |
Technical Parameter for popular rail tie plates
| Type | Dimension | Holes | Incline | Rail | Weight(Kg) |
| Rph 1/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,86 |
| Rp 01/01/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,70 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 36,3 (2x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 FVZ | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,69 |
| Sph 1(a) | 345/350/127x410x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 20,60 |
| Rph 6/160 | 370/310/152x160x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 8,44 |
| Rph 6/210 | 370/310/152x210x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 11,32 |
| SZ 60 | 370/350/152x420x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 22,73 |
| Rph 11 Ü | 664/554x160 | Ø 26 (4x) | 1:40 | S 54 | 15,37 |
| Rph 13 Ü | 690/570x160 | Ø 26 (4x) | 1:40 | UIC 60 | 15,27 |
| Rpo 5 | 345/285/127x160x15/13 | Ø 26 (4x) | 1:20 | S 49/S54 | 8 |
GNEE RAIL manufactures railway fasteners and standard components. As one of a leading railway fasteners manufacturers in China, with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service.
