Crane rail and accessories are specially used for cranes. In addition to the crane rails, important crane accessories also include crane rail clips, crane rail pad, crane rail clamp, crane sole plates, etc. Since the cranes are generally used for heavy load transport, the use of special parts such as crane rail, crane rail clips and crane sole plate is particularly important.
As one of the experienced crane rail suppliers, GNEE RAIL's crane rail and accessories have sold overseas and widely used in many fields such as railway lines, power, mining, metallurgy, steel mills, ports, shipbuilding, coking, etc. industries.
Next, we will give you a detailed introduction to the specifications of crane rails in various standards, helping you select the product that best meets your requirements. GNEE RAIL can supply crane rails of any standard, and if you have special customization needs, please contact us.
Crane Rail
Crane traveling track is the running route of the crane laying by the crane rails. It can ensure the crane running along the prescribed line and ensure transportation safety. The selection of crane rail is usually matched according to the type of crane. Specifically, we mainly refer to the maximum wheel pressure and minimum wheel pressure of the crane to calculate the crane rail size and selected wheel size by the crane.
According to different types of cranes, there are different supporting crane rail, such as overhead crane rail, gantry crane rail, etc. When we choose the crane rail, we should not only consider the size of the wheel, but also consider the design and installation of the crane rail in the actual environment.
Chinese standard crane rail
QU70 crane rail
- Rail Designation: QU70
- Rail Origin: China
- Standard: YB/T5055-93
- Area of section: 6722 mm2
- Calculated Mass: 52.8 kg/m
- Neutral Axis to base: 59.3 mm
QU80 crane rail
- Rail Designation: QU80
- Rail Origin: China
- Standard: YB/T5055-93
- Area of section: 8206 mm2
- Calculated Mass: 64.4 kg/m
- Neutral Axis to base: 64.9 mm
QU100 crane rail
- Rail Designation: QU100
- Rail Origin: China
- Standard: YB/T5055-93
- Area of section: 11344 mm2
- Calculated Mass: 89 kg/m
- Neutral Axis to base: 76.3 mm

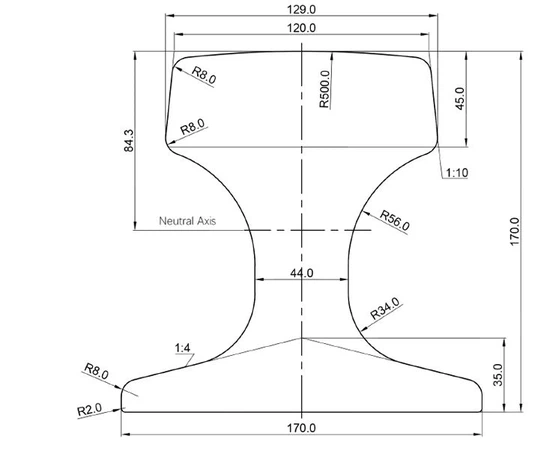

QU120 crane rail
- Rail Designation: QU120
- Rail Origin: China
- Standard: YB/T5055-93
- Area of section: 15096 mm2
- Calculated Mass: 118.5 kg/m
- Neutral Axis to base: 87 mm
In addition to crane rails, we also provide crane rail accessories such as Crane Rail Clamp, Crane Sole Plates, Crane Rail Pad etc.Click here to obtain the detailed product catalog of GNEE RAIL.
