Screw spikes, also known as threaded spikes, are core fasteners used to secure rails. Especially in railway engineering, they connect with sleepers through a threaded structure, providing stronger holding force and pull-out resistance than traditional spikes. Screw spikes produced by GNEE RAILWAY RAILWAY are typically made of Grade 3 steel and are named "screw spikes" due to the threads on the surface of their shanks. Their tensile strength is 0.5 to 1.0 times higher than that of ordinary spikes, but their pushing resistance is 50% lower. Due to the inconvenience of disassembly and assembly and the difficulty in adjusting the gauge, they are generally used in railway turnouts.
GNEE RAILWAY RAILWAY can provide screw spikes of various specifications, as well as a series of railway fasteners such as elastic clips, fish plates, bolts and nuts, flat washers, rubber pads, railway turnout components, and gauge rods.
GNEE RAILWAY RAILWAY offers the following types of screw spikes:

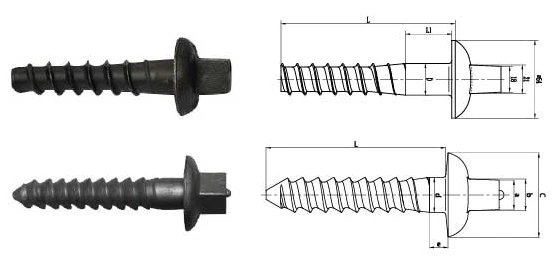

Ss series Sleeper Screw
| Type | Specification | Weight/kg | Surface | Standard |
| Ss 1/130 | M22*130 | 0.451 | UIC | |
| Ss 1/150 | M22*150 | 0.478 | Natural | AREMA |
| Ss 2/180 | M22*150 | 0.595 | Zinc | GB |
| Ss 5/150 | M24*150 | 0.545 | Paint | or |
| Ss 6/150 | M26*150 | 0.702 | Oil | According to your drawings or samples. |
| Ss 7/180 | M24*180 | 0.636 | According to your needs. | |
| Ss 8/140 | M24*140 | 0.528 | ||
| Ss 8/150 | M24*150 | 0.548 |
Square head screw spike
| Type | Specification | Material | Surface | Standard |
| Square head screw spike | M22*145 | 45# | Natural | UIC |
| 55Q | Zinc | AREMA | ||
| M22*155 | Q235 | Paint | DIN | |
| M22*165 | or | Oil | GB | |
| M22*185 | According to your needs. | According to your needs. | or | |
| M22*195 | According to your drawings or samples. | |||
| Other kinds |
Hexagon screw spike
| Grade | 4.6 | 5 .6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa | Tensile strength: ≥ 800Mpa | Tensile strength: ≥ 1000Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | Yield strength: ≥ 900Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | Elongation: ≥ 9% | |
| Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | |
| without crack | without crack | without crack | without crack | |
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
Double-head screw spike
| Size: 23×174 |
| Grade: 4.6, 5.6, 8.8, 10.9 |
| Raw Material: 35# |
| Raw material: Q235, 35#, 45# |
| Surface Treatment: Plain (oiled), Bluing, Zinc, HDG, etc |
ASTMA66-87 screw spike
GNEE RAILWAY RAILWAY also supply the railway sleeper screw spikes with the standard ASTMA66-87, Standard strength 65000PSI or high strength 100000psi is available. Common sizes include 3/4", 7/8", 15/16".
Screw spike with big disk for Africa and South America
Rail screw spikes with big disk are mostly applied in South America and Africa
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
3V sleeper screw
The mechanical properties of 3V sleeper screw are in accordance with NF F 50006.
Tension strength: 700MPA (min)
Elongation: 12% (min),
Cold bending: 30 degree without crack.
| Type | Dimension(mm) | Weight (Kg) |
| V20-135 | M20×135 | 0.438 |
| V23-115 | M23×115 | 0.48 |
| V23-135 | M23×135 | 0.55 |
| V23-155 | M23×155 | 0.62 |
| V23-215 | M23×215 | 0.78 |
| V26-115 | M26×115 | 0.55 |
High tension screw spike
High tension screw spike is also called as screw spike for wooden sleeper. Size: 15/16×6-1/2.
| Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness |
| 120,000psi(min) | 92,000psi(min) | 14%(min) | 35%(min) | HRC22-HRC3 |
DHS35 screw spike
DHS35 rail sleeper screw spike can be used as a part of SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
T type screw spike NF-F 50014
T type screw spike with round thread, according to the standard NF-F 50014.
Dive spike
The dive spike has wide applications, including timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The dive spike has advantages of low cost of installation and maintenance. Meet with the standard ASTMA66-87, cold bending 90 degree without crack.
Main Size: 5/8×10 and 7/8×7
Material: 35#
| Tensile Strength | Yield Strength | Elongation 2" |
| 414Mpa | 207Mpa | >18% |
Similar to this is the dog railroad spike. If you want to know the difference between these two types of railroad spikes, please click here. If you need more detailed information about the products mentioned above, please contact us.
