Pandrol E Clip Specifications

Pandrol E Clip specifications include material, hardness, fatigue life, and performance data, which can vary by model and application. The clips are typically made from high-carbon or spring steel (60Si2Mn) and are heat-treated to a surface hardness of 44-48 Rockwell C. Performance specifications like static and dynamic stiffness, clamping force, and longitudinal restraint vary by track type and application, from light rail to high-speed lines.

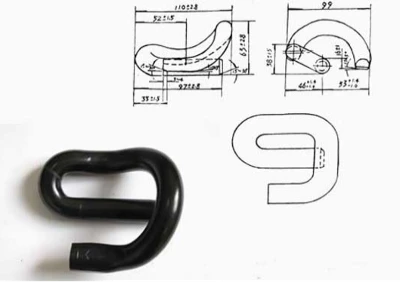

Types and Specification of E Clip Fasteners

Performance and compatibility of Pandrol E Elastic Clip

• Clamping Force: Varies by application, for example, exceeding 16 kN for many conventional and high-speed lines.



• Stiffness: Static and dynamic stiffness values vary by track type, with higher values for heavy-duty applications.



• Lateral Adjustment: Can provide lateral adjustment per rail, often up to ±5 mm, using vertically serrated holes in the SRS version.



• Compatibility: Compatible with common rail sizes, including UIC54, UIC60, and others.

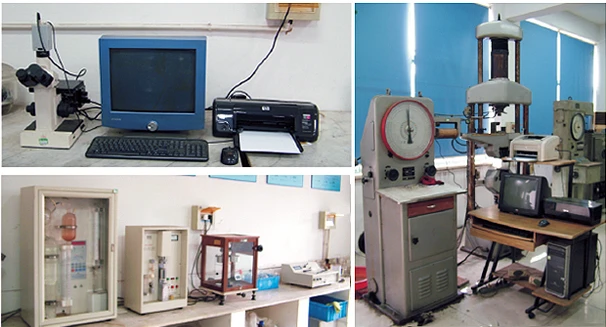

Quality Control of Finished Elastic Rail Clips

GNEE RAILWAY RAILWAY has strict test and completely authentication at every single step of manufacturing rail clips and a full set of quality control system, from raw material purchasing to the finished rail clip packing. We have a professional inspection team to check about each process of the production line.

GNEE RAILWAY RAILWAY supplies E-clips, PR clip, SKL clips, Russia rail clip, Deenik clip, Nabla spring blade, KPO rail calmp, gantrex rail clips, fast clip, crane rail clip and other special clips for rails. We have proffesional production cline to design and manufacture standard rail clips or nonstandard clips.

For more information – Get in touch now!
