22kg rail weighs 22.3kg per meter and is designed for crane tracks, overhead transport systems, and other industrial setups requiring higher load-bearing capacity. This model bridges the gap between light and heavy rails, suitable for applications such as light duty-gantry cranes or transport in logging and mining sites.
How to Install 22kg rail Properly?
The installation of railroad tracks is a highly technical process that demands accuracy, experience, and compliance with strict engineering standards.

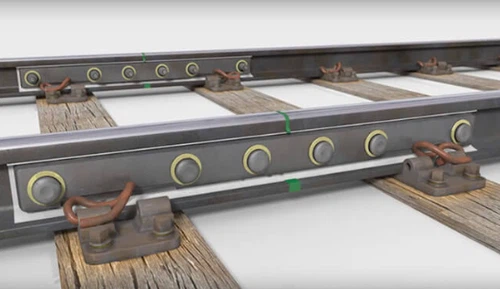

- To properly install 22kg rail, begin by preparing a clean, level support surface and placing grooved elastic pads on it. Accurately position the rail sections according to the design alignment and height, ensuring minimal deviation. For a seamless finish, weld sections together using a method like thermite welding; if using mechanical joints, secure them with fishplates and bolts, keeping gaps small.

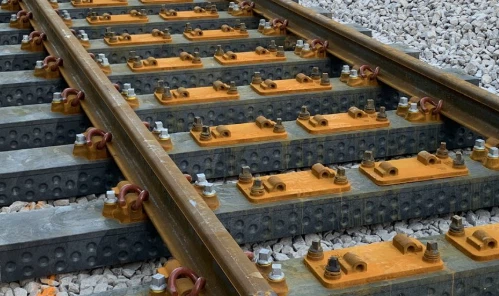

- The rail is then fastened using a clip system. Position the clips so the rubber component contacts the rail flange. Insert bolts with washers and initially hand-tighten them to compress the rubber nose. Finally, use a calibrated torque wrench to tighten the nuts to the specified torque, ensuring a secure hold.
- Conclude by grinding any joints smooth, applying anti-corrosion coating to machined surfaces, and conducting a final inspection. This inspection must verify all dimensions, straightness, and levelness meet the required design standards before the track is put into operation.
Specification of GB 22KG RAIL

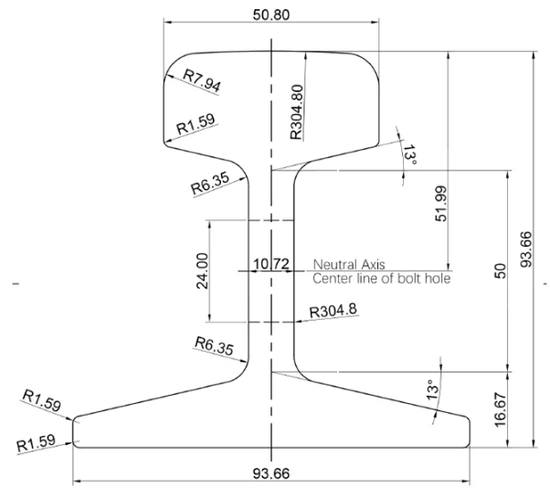

A GB 22kg rail (GB/T 11264 standard) is a light steel rail, weighing approximately 22.3 kg/meter, used for industrial, mining, and temporary railways, featuring specific dimensions like a 93.66mm height, 93.66mm bottom width, 50.8mm head width, and 10.72mm web thickness, typically made from Q235B or 55Q steel, and available in lengths like 6-12 meters.
| Classification | Height(mm) | Head (mm) | Bottom (mm) | Thick(mm) | Weight (kg/m) | |
| Light Rail | 8 KG/M | 65 | 25 | 54 | 7 | 8.42 |
| 9 KG/M | 63.5 | 32.1 | 63.5 | 5.9 | 8.94 | |
| 12 KG/M | 69.85 | 38.1 | 69.85 | 7.54 | 12.2 | |
| 15 KG/M | 79.37 | 42.86 | 79.37 | 8.33 | 15.2 | |
| 18 KG/M | 80 | 40 | 80 | 10 | 18.06 | |
| 22 KG/M | 93.66 | 50.8 | 93.66 | 10.72 | 22.3 | |
| 24 KG/M | 107 | 51 | 90 | 10.9 | 24.46 | |
| 30 KG/M | 107.95 | 60.33 | 107.95 | 12.3 | 30.1 | |
What are the characteristics of a 22kg steel rail?
A GB 22kg steel rail is a Chinese standard, medium-duty light rail (approx. 22.3 kg/m) known for its good strength, wear resistance, and durability, suitable for industrial, mining, and light transport systems, offering high safety, cost-effectiveness, and often made from Q235 or 55Q steel, with dimensions like 93.66mm height and 93.66mm base width, designed for reliable performance under moderate loads.
Key Characteristics:
- Weight & Standard: Weighs around 22.3 kg per meter and conforms to Chinese GB standards (GB/T 11264-2012).
- Material: Typically made from Q235 or 55Q carbon steel, providing a balance of toughness and wear resistance.
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
- Dimensions: Specific dimensions include a height of 93.66mm, a base width of 93.66mm, and a head width of 50.8mm.
- Performance: Offers high strength, good fatigue resistance, and excellent wear resistance for demanding applications.
- Applications: Ideal for light railways, mine tunnels, factory internal transport, construction scaffolding, and temporary tracks.
- Benefits: Provides a stable, smooth surface, distributes loads effectively, resists corrosion, and ensures long service life.
